Mount for Lasermodul 12mm

Skip image gallery

€72.90*

Available, delivery time: 1-2 days

Product number: 70112498

Product information "Mount for Lasermodul 12mm"

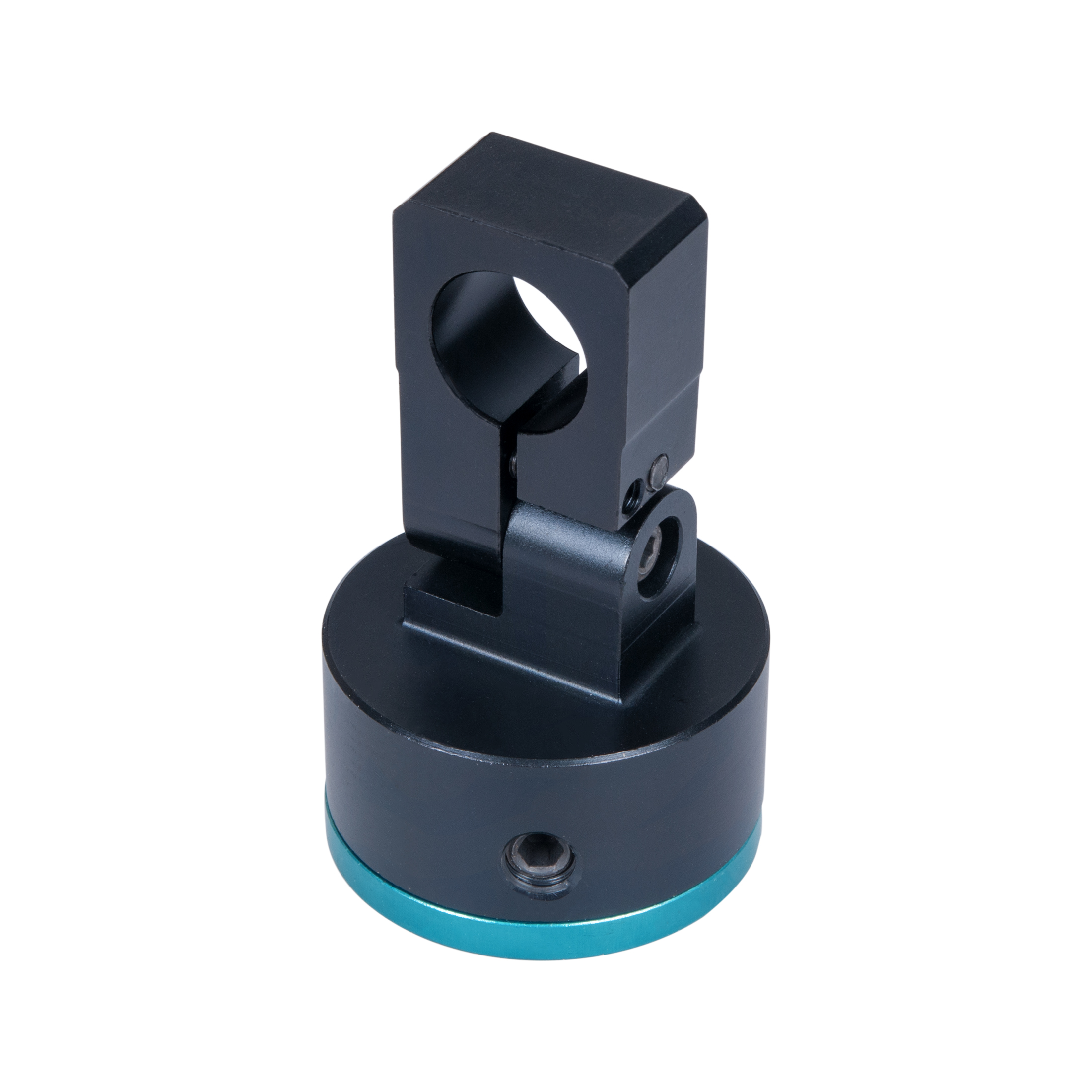

Ø12mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 12mm

Solid, very robust laser aluminum mount for industrial applicationsIndustrial qualityBracket is adjustable in all degrees of freedomBaseplate with two different mounting options:1st: Hole for mounting on e.g. walls / ceilings2nd: Existing M5 female thread can be used for installation on machines, etc.

  • Anodized aluminium
  • Very robust
  • For industrial applications
  • Halterung für Lasermodule mit Durchmesser 12mm.
  • Befestigung: Drei Innengewinde im Standfuß M5x0.8; Vier Durchgangslöcher im Standfuß Ø4,2mm
  • Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden.
  • Material: Aluminium; Farbe: Schwarz
  • Hochwertige Halterung für industrielle Anwendungen.

Main Data

  • EAN: 4260129042398
  • Customs tariff number: 90139080000

Technical Parameters

  • Operating Temperature: -20°C - 50 °C
  • Storage Temperature: -50°C - 70 °C

Electrical Parameters

  • Operating Voltage: max 0 V DC

Mechanical Parameters

  • Size: Ø45x75 mm
  • Material: aluminium
  • Housing Color: black
  • Weight: 141 g

Mount Parameters

  • Total Height (h1): 75 mm
  • Height to Laseraxis (h2): 62 mm
  • Height of Base (h3): 25 mm
  • Mount Diameter (d1): Ø 12 mm
  • Diameter of Base (d2): Ø 45 mm
  • Width of Mount (b): 26 mm
  • Height of Mount (g): 50 mm
  • Height of Mount Head (k): 50 mm
  • Depth of Mount (t): 15 mm
  • Angle of Rotation Alpha (α): 360 °
  • Angle of Rotation Beta (β): ± 90 °

Matching articles

Punktlaser grün 532nm 1mW Ø12x60 100mm Kabel
Punktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x60mm Doe laser, red, 650 nm, 5 mW, 3 V DC, Ø12x38 mm, Laser Class 1, Focus adjustable, Cable length 100 mm
 Line laser red 650nm 5mW 20° 24VDC aluminum housing 12x50mm
Line laser, red, 650nm, 5mW, 20°, Laser Class 1, Focus 3m, 24V DC, 12x50mm, Cable length 100mm direct green laser modul cross laser green 520nm 4mW 3VDC
Kreuzlaser, grün, 520nm, 4mW, 90°, Laser Klasse 1, Fokus 3m, 3V DC, 12x47mm Line laser, red, 635 nm, 90 °, 4 mW, 5 V DC, Ø12x32 mm, Laser Class 1, Focus fixed (3000mm), Cable length 100 mm
 Dot laser, red, 650nm, 1mW, Laser Class 2, focus collimated, 3V DC, 12x40mm, axially parallel
Dot laser, red, 650nm, 1mW, Laser Class 2, collimated focus, 3V DC, 12x40mm, axis parallel Doe laser, red, 650 nm, 5 mW, 3 V DC, Ø12x38 mm, Laser Class 1M, Focus adjustable, Cable length 100 mm
 Punktlaser grün 532nm 1mW Ø12x60 250mm Kabel
Punktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x60mm, Kabel 0,25m Line laser red 650nm 5mW 20° 24VDC aluminum housing 12x50mm
Red line laser, 650nm, 5mW, 20°, Laser Class 1, Focus 3m, 24V DC, 12x50mm, Cable length 300mm Line laser, green, 520 nm, 20 °, 4 mW, 5 V DC, Ø12x40 mm, Laser Class 1, Focus fixed (400mm), Cable length 500 mm
Linienlaser, grün, 520nm, 4mW, 20°, Laser Klasse 1, Fokus 0,4m, 5V DC, 12x40mm Cross laser, green, 520 nm, 15 °, 2 mW, 5 V DC, Ø12x40 mm, Laser Class 1, Focus fixed (400mm), Cable length 500 mm
Kreuzlaser, grün, 520nm, 2mW, 215°, Laser Klasse 1, Fokus 0,4m, 5V DC, 12x40mm Dot laser, infrared, 940 nm, 1 mW, 5 V DC, Ø12x40 mm, Laser Class 1, Focus fixed (2000mm), Cable length 100 mm
Modulierbarer Punktlaser, infrarot, 940nm, 1mW, Laser Klasse 1, Fokus 2m, 5V DC, 12x40mm Line laser, red, 650 nm, 90 °, 5 mW, 5 V DC, Ø12x32 mm, Laser Class 1, Focus fixed (1000mm), Cable length 100 mm, 2.1 mm DC socket (GND inner)
Linienlaser, rot, 650nm, 5mW, 90°, Laser Klasse 1, Fokus 1m, 5V DC, 12x32mm, mit DC-Hohlstecker 2.1mm Line laser, green, 520 nm, 90 °, 5 mW, 3 V DC, Ø12x60 mm, Laser Class 1, Focus fixed (1300mm), Cable length 100 mm, 2.5 mm DC socket (GND pole inner)
Linienlaser, grün, 520nm, 5mW, 90°, Laser Klasse 1, Fokus 1.3m, 3V DC, 12x60mm, mit DC-Hohlstecker 2.5mm Dot laser, red, 650 nm, 1 mW, 3 V DC, Ø12x42 mm, Laser Class 2, Focus fixed (10.0m), Cable length 100 mm
Punktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x42mm, Achsparallel Line laser, infrared, 830 nm, 60 °, 3 mW, 24 V DC, Ø12x40 mm, Laser Class 1, Focus fixed (450mm), Cable length 200 mm
Linienlaser, IR, 830nm, 3mW, 60°, Laser Klasse 1, Fokus 0,45m, 24V DC, 12x40mm Dot laser, green, 520 nm, 10 mW, 3 V DC, Ø12x40 mm, Laser Class 3B, Focus fixed, Cable length 2,500 mm
 Dot laser, red, 635 nm, 10 mW, 3 V DC, Ø12x40 mm, Laser Class 3B, Focus fixed, Cable length 2,500 mm
 Dot laser, blue, 450 nm, 10 mW, 3 V DC, Ø12x40 mm, Laser Class 3B, Focus fixed, Cable length 2,500 mm
 Line laser, green, 520 nm, 30 °, 7 mW, 5 V DC, Ø12x40 mm, Laser Class 2, Focus fixed (400mm), Cable length 500 mm
Line laser, green, 520nm, 7mW, 30°, Laser Class 2, Focus 0.4m, 5V DC, 12x40mm Cross laser, green, 520 nm, 30 °, 10 mW, 5 V DC, Ø12x40 mm, Laser Class 2M, Focus fixed (400mm), Cable length 500 mm
Cross laser, green, 520nm, 10mW, 30°, Laser Class 2M, Focus 0.4m, 5V DC, 12x40mm Doe laser, green, 532 nm, 15 °, 5 mW, 3 V DC, Ø12x55 mm, Laser Class 2M, Focus adjustable, Cable length 200 mm, 2.5 mm DC socket (GND pole inner)
 Laser module point laser green 520nm 3mW 5V DC
 Justierbares isoliertes DOE Lasermodul, rot, 635nm, 1mW, 3V DC, 12x54mm, Klasse 1, inkl. DOE-R-218, Kreuz Projektion 15°
 Blue point laser, 405nm, 0.4mW, Laser Class 1, collimated, 5V DC, 12x40mm
Dot laser, blue, 405nm, 0.4mW, Laser Class 1, collimated, 5V DC, 12x40mm Dot laser, blue, 450nm, 0.4mW, Laser Class 1, collimated, 5V DC, 12x40mm
Blue dot laser, 450nm, 0.4mW, Laser Class 1, collimated, 5V DC, 12x40mm Linienlaser, rot, 650nm, 5mW, 5°, 5V DC, 12x50 mm, Klasse 2M, Fokus 1m, Intensität einstellbar (0-5V), Powell linse
Linienlaser, rot, 650nm, 5mW, 5°, 5V DC, 12x50 mm, Klasse 2M, Fokus 1m, Intensität einstellbar (0-5V), Powell linse Line laser, green, 520nm, 4mW, 10°, Laser Class 1M, Focus 3m, 3V DC, 12x34mm, with 2.5mm DC hollow plug
 Doe laser, red, 635 nm, 5 °, 1 mW, 24 V DC, Ø12x54 mm, Laser Class 1M, Focus adjustable, Cable length 300 mm
 Doe laser, red, 635 nm, 5 °, 1 mW, 24 V DC, Ø12x54 mm, Laser Class 1M, Focus adjustable, Cable length 300 mm, CON-M12
