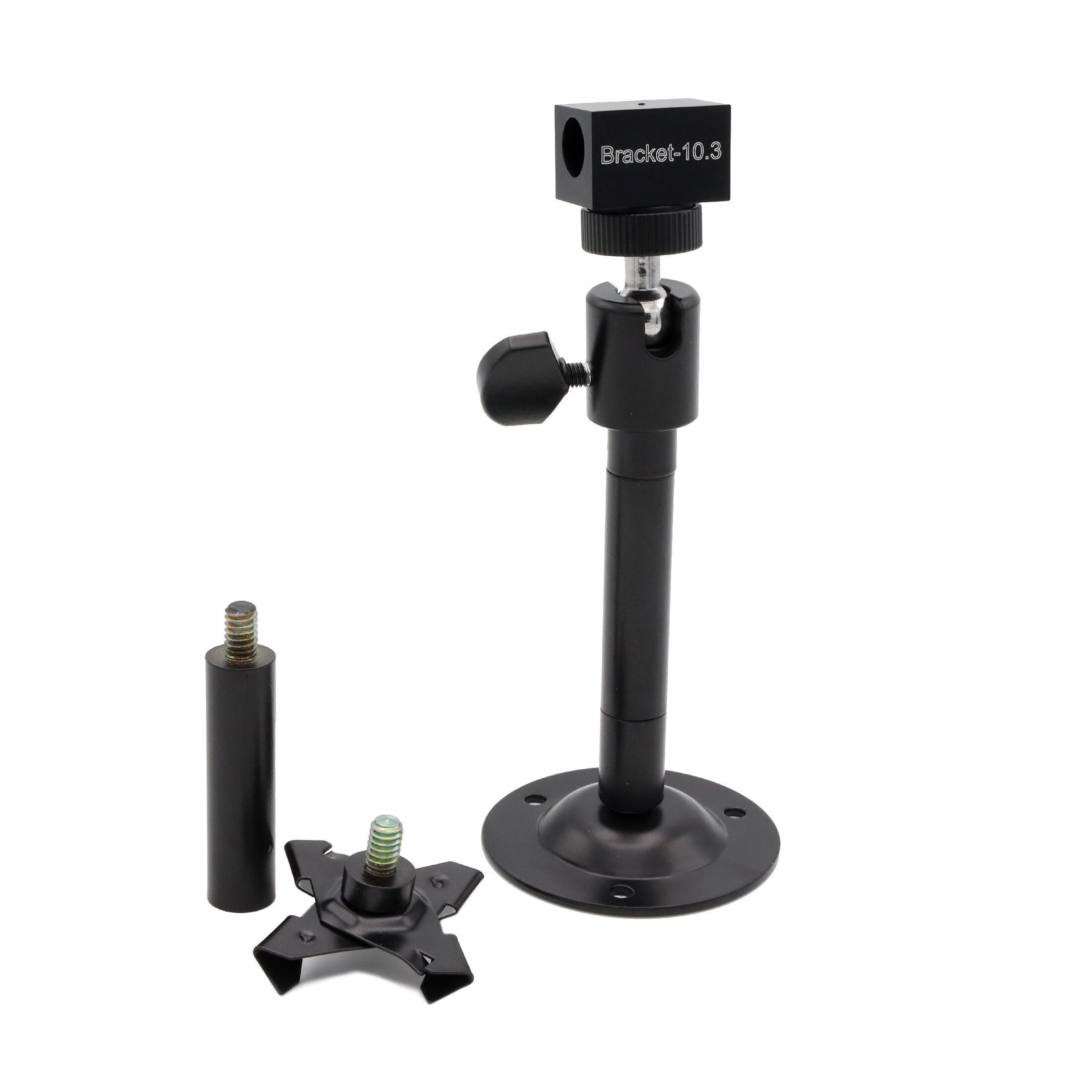

Bracket for Lasermodule 10.3mm
Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4260129041377 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 83 g Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

€32.90*

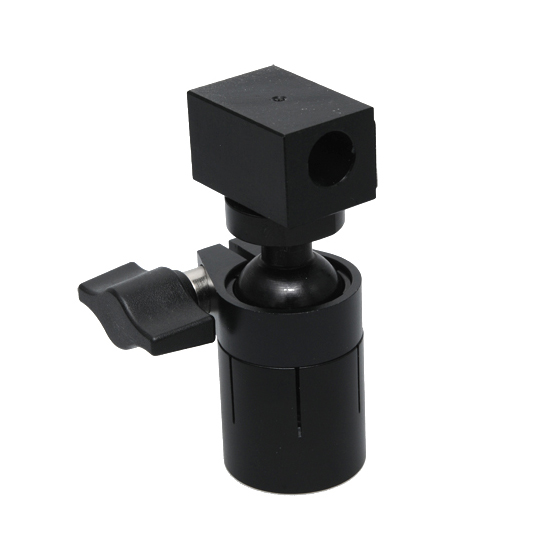

Bracket for Lasermodule 10.3mm
Ø10,3mm(25x69) Halterung-Ballhead für Lasermodule mit Durchmesser 10,3mm Laser holder with a height of 68 cm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Halterung für Lasermodule mit Durchmesser 10,3mm. Befestigung: 1/4''UNC Innengewinde im Standfuß; Zwei Durchgangslöcher 4mm; Zwei Durchgangslöcher 2,5mm Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042336 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 68 mm Height to Laseraxis (h2): 61 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 10.3 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 18 mm Height of Mount (g): 17.3 mm Height of Mount Head (k): 34 mm Depth of Mount (t): 27 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-10.3(25x69) on Amazon

€72.90*

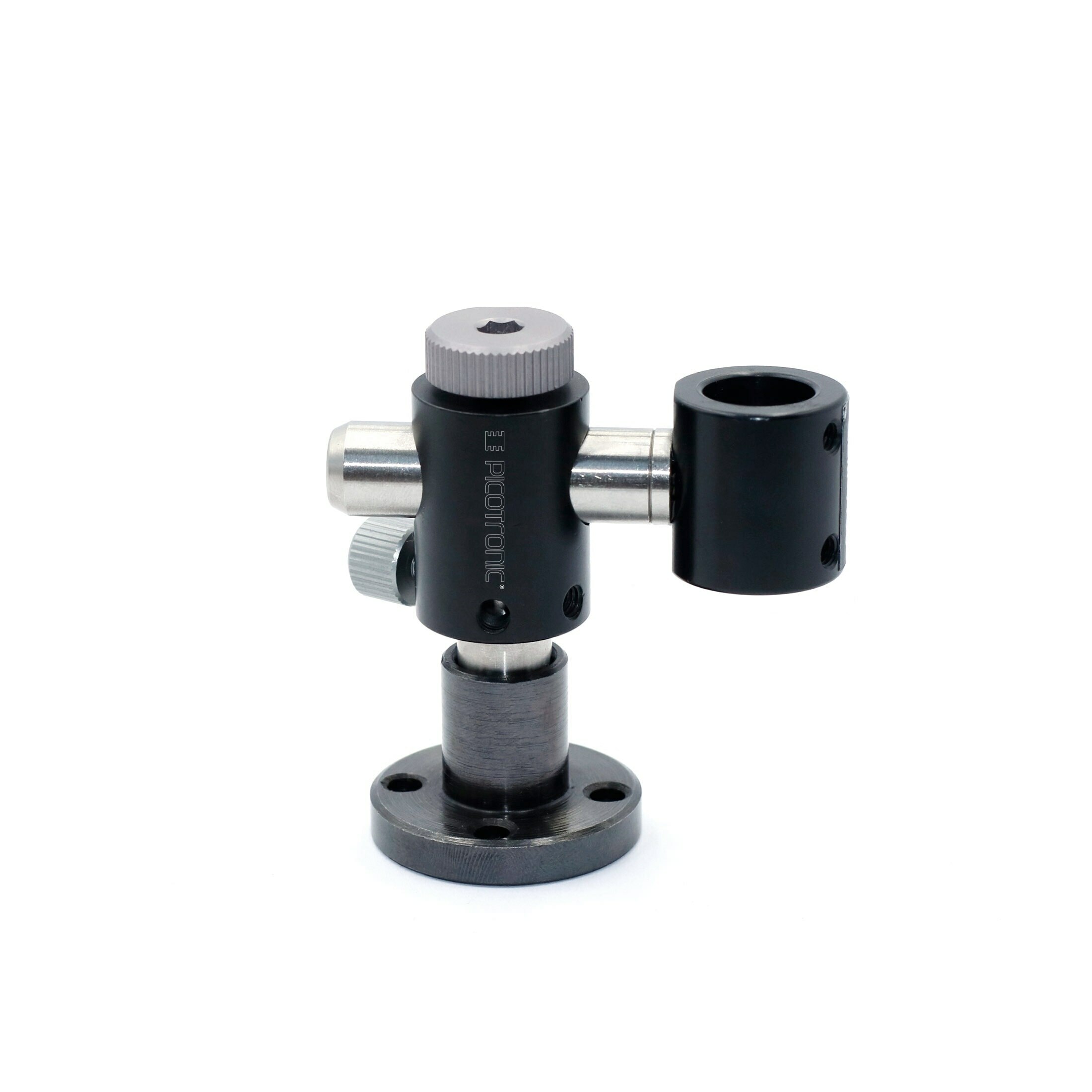

Bracket for Lasermodule 12.5mm
Ø4-12,5mm(66x69) LASER-MOUNT für Lasermodule mit Durchmesser 4mm bis 12,5mm Laser holder with a adjustable height Bracket is adjustable in all degrees of freedom Material: aluminum laser holder Rod and baseplate: Steel Flexible design Low cost Light weight stable transportbox Halterung für Lasermodule mit Durchmesser 4mm bis 12,5mm. Befestigung: Vier Durchgangslöcher im Standfuß Ø4,5mm Das Lasermodul wird mit Kunststoffklemmschrauben in der Halterung fixiert. Material: Aluminium, Stahl; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen. Delivery Content Inklusive stabiler Transportbox Main Data EAN: 4055132008635 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Stainless Steel Weight: 150 g Mount Parameters Total Height (h1): 69 mm Mount Diameter (d1): Ø 12.5 mm Diameter of Base (d2): Ø 35 mm Width of Mount (b): 66 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 360 ° Shop+Web Delivery Content: Inklusive stabiler Transportbox Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy PLM-1125 on Amazon

€88.90*
Bracket for Lasermodule 12.5mm to 16.5mm
Ø12,5-16,5mm(67x69) LASER-MOUNT für Lasermodule mit Durchmesser 12.5mm bis 16.5mm Laser holder with a adjustable height Bracket is adjustable in all degrees of freedom Material: aluminum laser holder Rod and baseplate: Steel Flexible design Low cost Light weight stable transportbox Halterung für Lasermodule mit Durchmesser 12,5mm bis 16,5mm. Befestigung: Vier Durchgangslöcher im Standfuß Ø4,5mm Das Lasermodul wird mit Kunststoffklemmschrauben in der Halterung fixiert. Material: Aluminium, Stahl; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen. Delivery Content Inklusive stabiler Transportbox Main Data EAN: 4055132008659 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Stainless Steel Weight: 150 g Mount Parameters Total Height (h1): 69 mm Mount Diameter (d1): Ø 16.5 mm Diameter of Base (d2): Ø 35 mm Width of Mount (b): 67 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 360 ° Shop+Web Delivery Content: Inklusive stabiler Transportbox Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy PLM-1165 on Amazon

€88.90*
Bracket for Lasermodule 12mm
Ø12mm(25x70) Halterung-Ballhead für Lasermodule mit Durchmesser 12mm Laser holder with a height of 70 mm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Halterung für Lasermodule mit Durchmesser 12mm. Befestigung: 1/4''UNC Innengewinde im Standfuß; Zwei Durchgangslöcher 4mm; Zwei Durchgangslöcher 2,5mm Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042466 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 70 mm Height to Laseraxis (h2): 62 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 12 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 18 mm Height of Mount (g): 19 mm Height of Mount Head (k): 35.5 mm Depth of Mount (t): 27 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Matching articles Punktlaser grün 532nm 1mW Ø12x60 250mm KabelPunktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x60mm, Kabel 0,25m Dot laser, infrared, 940 nm, 1 mW, 5 V DC, Ø12x40 mm, Laser Class 1, Focus fixed (2000mm), Cable length 100 mmModulierbarer Punktlaser, infrarot, 940nm, 1mW, Laser Klasse 1, Fokus 2m, 5V DC, 12x40mm Line laser, red, 650 nm, 90 °, 5 mW, 5 V DC, Ø12x32 mm, Laser Class 1, Focus fixed (1000mm), Cable length 100 mm, 2.1 mm DC socket (GND inner)Linienlaser, rot, 650nm, 5mW, 90°, Laser Klasse 1, Fokus 1m, 5V DC, 12x32mm, mit DC-Hohlstecker 2.1mm Dot laser, red, 650 nm, 1 mW, 3 V DC, Ø12x42 mm, Laser Class 2, Focus fixed (10.0m), Cable length 100 mmPunktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x42mm, Achsparallel Line laser, infrared, 830 nm, 60 °, 3 mW, 24 V DC, Ø12x40 mm, Laser Class 1, Focus fixed (450mm), Cable length 200 mmLinienlaser, IR, 830nm, 3mW, 60°, Laser Klasse 1, Fokus 0,45m, 24V DC, 12x40mm Dot laser, green, 520 nm, 10 mW, 3 V DC, Ø12x40 mm, Laser Class 3B, Focus fixed, Cable length 2,500 mm Dot laser, red, 635 nm, 10 mW, 3 V DC, Ø12x40 mm, Laser Class 3B, Focus fixed, Cable length 2,500 mm Dot laser, blue, 450 nm, 10 mW, 3 V DC, Ø12x40 mm, Laser Class 3B, Focus fixed, Cable length 2,500 mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-12(25x70) on Amazon

€72.90*
Bracket for Lasermodule 12mm
Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4260129041384 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 85 g Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

€32.90*
Bracket for Lasermodule 14mm
Ø14mm(25x72) Halterung-Ballhead für Lasermodule mit Durchmesser 14mm Laser holder with a height of 72 mm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Halterung für Lasermodule mit Durchmesser 14mm. Befestigung: 1/4''UNC Innengewinde im Standfuß; Zwei Durchgangslöcher 4mm; Zwei Durchgangslöcher 2,5mm Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042312 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 72 mm Height to Laseraxis (h2): 63 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 14 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 18 mm Height of Mount (g): 21 mm Height of Mount Head (k): 37.5 mm Depth of Mount (t): 27 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Matching articles Dot laser, red, 650 nm, 1 mW, 3 V DC, Ø14x45 mm, Laser Class 2, Focus fixed (10.0m), Cable length 100 mmPunktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 14x45mm, Achsparallel Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-14(25x72) on Amazon

€72.90*
Bracket for Lasermodule 14mm
Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4260129041568 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 87 g Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

€32.90*
Bracket for Lasermodule 15.5mm
Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4260129041391 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 84 g Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

€32.90*
Bracket for Lasermodule 15.5mm
Ø15,5mm(25x74) Halterung-Ballhead für Lasermodule mit Durchmesser 15,5mm Laser holder with a height of 74 mm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Halterung für Lasermodule mit Durchmesser 15,5mm. Befestigung: 1/4''UNC Innengewinde im Standfuß; Zwei Durchgangslöcher 4mm; Zwei Durchgangslöcher 2,5mm Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042428 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 74 mm Height to Laseraxis (h2): 65 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 15.5 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 18 mm Height of Mount (g): 22.5 mm Height of Mount Head (k): 39 mm Depth of Mount (t): 27 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Matching articles Dot laser, red, 650 nm, 1 mW, Ø15x68 mm, Laser Class 2, Focus fixed (10.0m)Punktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus 10m, 3-4,5V DC, 15x68mm, Batteriebetrieb, 30s Timer Dot laser, red, 650 nm, 1 mW, Ø15x68 mm, Laser Class 2, Focus fixed (10.0m)Punktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus 10m, 3-4,5V DC, 15x68mm, Batteriebetrieb, 120s Timer Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-15.5(25x74) on Amazon

€72.90*
Bracket for Lasermodule 16.5mm to 22.5mm
Ø16,5-22,5mm(90x75) LASER-MOUNT für Lasermodule mit Durchmesser 16,5mm bis 22,5mm Laser holder with a adjustable height Bracket is adjustable in all degrees of freedom Material: aluminum laser holder Rod and baseplate: Steel Flexible design Low cost Light weight stable transportbox Halterung für Lasermodule mit Durchmesser 16,5mm bis 22,5mm. Befestigung: Vier Durchgangslöcher im Standfuß Ø4,5mm Das Lasermodul wird mit Kunststoffklemmschrauben in der Halterung fixiert. Material: Aluminium, Stahl; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen. Delivery Content Inklusive stabiler Transportbox Main Data EAN: 4055132008642 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Stainless Steel Weight: 150 g Mount Parameters Total Height (h1): 90 mm Mount Diameter (d1): Ø 22.5 mm Diameter of Base (d2): Ø 35 mm Width of Mount (b): 75 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 360 ° Shop+Web Delivery Content: Inklusive stabiler Transportbox Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy PLM-1225 on Amazon

€88.90*
Bracket for Lasermodule 16mm
Ø16mm(25x75) Halterung-Ballhead für Lasermodule mit Durchmesser 16mm Laser holder with a height of 74 mm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Halterung für Lasermodule mit Durchmesser 16mm. Befestigung: 1/4''UNC Innengewinde im Standfuß; Zwei Durchgangslöcher 4mm; Zwei Durchgangslöcher 2,5mm Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042411 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 75 mm Height to Laseraxis (h2): 64 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 16 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 18 mm Height of Mount (g): 23 mm Height of Mount Head (k): 39 mm Depth of Mount (t): 27 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Matching articles Line laser, green, 520 nm, 60 °, 10 mW, 24 V DC, Ø16x55 mm, Laser Class 1M, Focus fixed (3000mm), Cable length 1,000 mm, CON-M12Linienlaser, grün, 520nm,10mW, 3V, 16x55mm, Fokus 3m, Öffnungswinkel 60°, Laser Klasse 1M, mit M12-Stecker, IP67 Line laser, green, 520 nm, 60 °, 10 mW, 24 V DC, Ø16x55 mm, Laser Class 1M, Focus fixed (3000mm), Cable length 1,000 mmLinienlaser, grün, 520nm, 10mW, 3V, 16x55mm, Fokus 3m, Öffnungswinkel 60°, Laser Klasse 1M, IP67 Doe laser, red, 635 nm, 60 °, 10 mW, 24 V DC, Ø16x62 mm, Laser Class 2M, Focus adjustable, Cable length 300 mm Doe laser, red, 635 nm, 45 °, 10 mW, 24 V DC, Ø16x62 mm, Laser Class 2M, Focus adjustable, Cable length 300 mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-16(25x75) on Amazon

€72.90*
Bracket for Lasermodule 16mm
Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4260129041407 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 83 g Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

€32.90*
Bracket for Lasermodule 20mm
ø 20mm (25x78) Halterung-Ballhead für Lasermodule mit Durchmesser 20mm Laser holder with a height of 78 mm. Ballhead allows to move in all degrees of freedom 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Halterung für Lasermodule mit Durchmesser 20mm. Befestigung: 1/4''UNC Innengewinde im Standfuß; Zwei Durchgangslöcher 4mm; Zwei Durchgangslöcher 2,5mm Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042442 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 78 mm Height to Laseraxis (h2): 67 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 20 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 22 mm Height of Mount (g): 27 mm Height of Mount Head (k): 44 mm Depth of Mount (t): 33 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Matching articles Line laser, green, 532 nm, 60 °, 5 mW, 24 V DC, Ø20x80 mm, Laser Class 1, Focus adjustable, Cable length 180 mmFokussierbarer Linienlaser, grün, 532nm, 5mW, 60°, Laser Klasse 2M, Fokus einstellbar, 24V DC, 20x80mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-20(25x78) on Amazon

€72.90*
Bracket for Lasermodule 20mm
Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4260129041414 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 94 g Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

€32.90*
Bracket for Lasermodule 22mm
Ø22mm(25x80) Halterung-Ballhead für Lasermodule mit Durchmesser 22mm Laser holder with a height of 80 mm. Ballhead allows to move in all degrees of freedom 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design Industrial Quality Light weight Halterung für Lasermodule mit Durchmesser 22mm. Befestigung: 1/4''UNC Innengewinde im Standfuß; Zwei Durchgangslöcher 4mm; Zwei Durchgangslöcher 2,5mm Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042329 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 80 mm Height to Laseraxis (h2): 67 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 22 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 24 mm Height of Mount (g): 29 mm Height of Mount Head (k): 46 mm Depth of Mount (t): 36 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-22(25x80) on Amazon

€72.90*
Bracket for Lasermodule 22mm
Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4055132009373 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 96 g Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

€32.90*

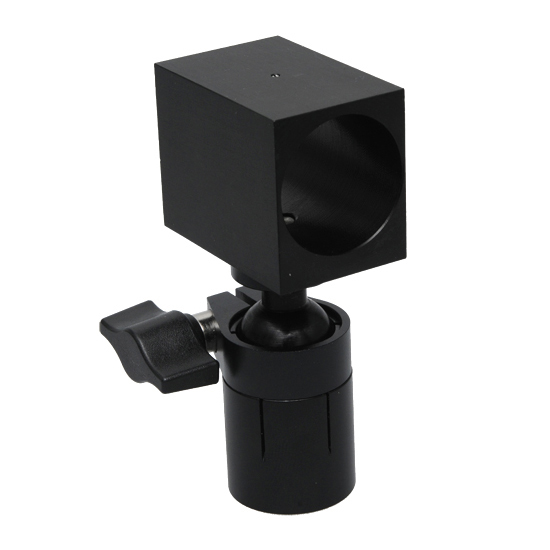

Bracket for Lasermodule 25.4mm
Ø25,4mm(25x84) Halterung-Ballhead für Lasermodule mit Durchmesser 25,4mm Laser holder with a height of 84 mm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Halterung für Lasermodule mit Durchmesser 25,4mm. Befestigung: 1/4''UNC Innengewinde im Standfuß; Zwei Durchgangslöcher 4mm; Zwei Durchgangslöcher 2,5mm Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042350 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 84 mm Height to Laseraxis (h2): 70 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 25.4 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 27.5 mm Height of Mount (g): 32.5 mm Height of Mount Head (k): 49.5 mm Depth of Mount (t): 40 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-25.4(25x84) on Amazon

€72.90*

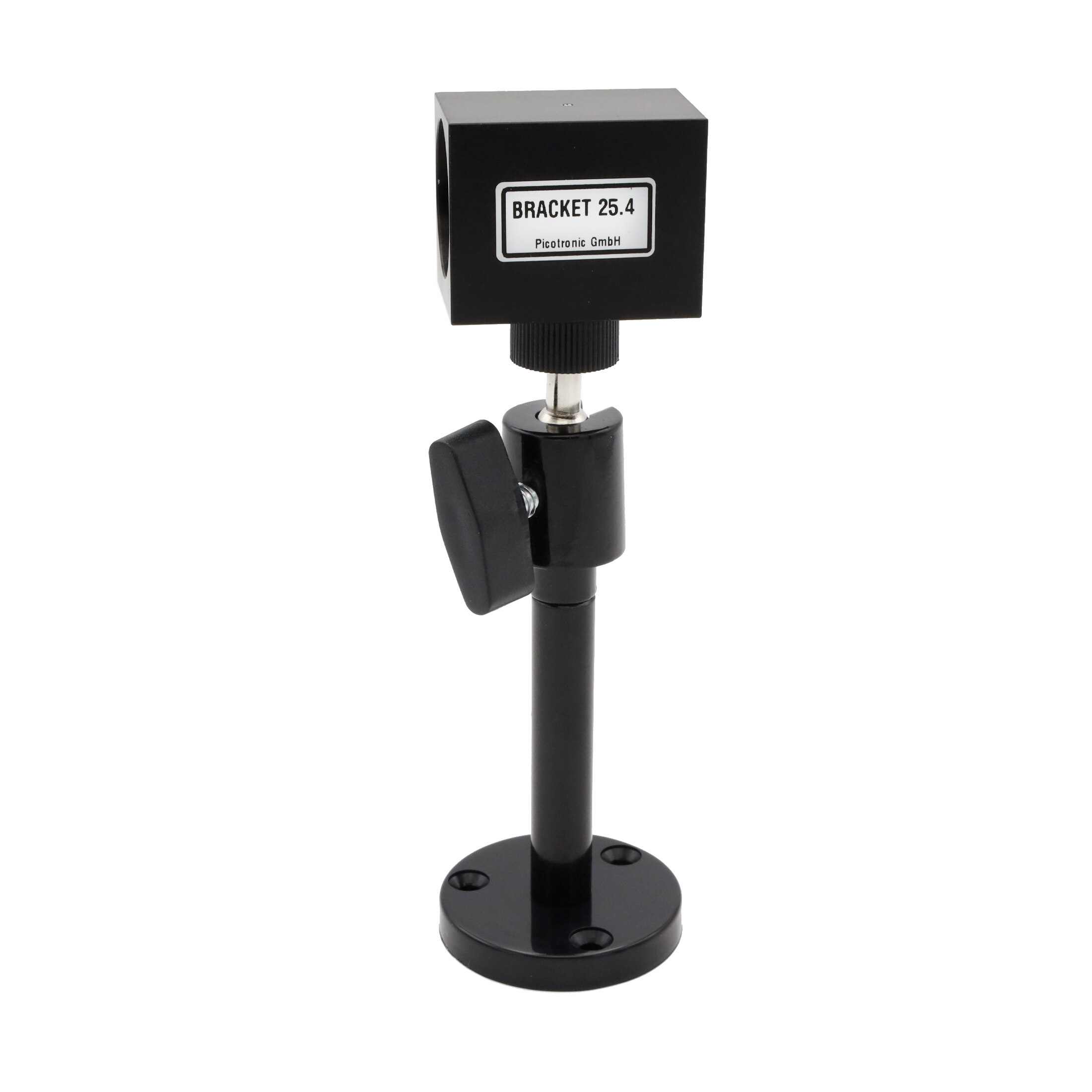

Bracket for Lasermodule 25.4mm
Ø25,4mm(58x145) LF-Halterung für Lasermodule mit Durchmesser 25,4mm Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Halterung für Lasermodule mit Durchmesser 25,4mm. Befestigung: Drei Durchgangslöcher 4mm im Standfuß; Lochabstand 43mm Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material Stativ und Halterung: Aluminium Material Standfuß: Kunststoff Main Data EAN: 4260129041438 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 111.5 g Mount Parameters Mount Diameter (d1): Ø 25.4 mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

€32.90*
Bracket for Lasermodule 8mm
Ø8mm(25x66) Halterung-Ballhead für Lasermodule mit Durchmesser 8mm Laser holder with a height of 66 mm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Halterung für Lasermodule mit Durchmesser 8mm. Befestigung: 1/4''UNC Innengewinde im Standfuß; Zwei Durchgangslöcher 4mm; Zwei Durchgangslöcher 2,5mm; Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042435 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 66 mm Height to Laseraxis (h2): 60 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 8 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 18 mm Height of Mount (g): 15 mm Height of Mount Head (k): 31.5 mm Depth of Mount (t): 27 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Matching articles Dot laser, red, 650 nm, 1 mW, 5 V DC, Ø8x21 mm, Laser Class 2, Focus fixed (100mm), Cable length 100 mmModulierbarer Punktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus 0.1m, 5V DC, 8x21mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-08(25x66) on Amazon

€72.90*
Bracket for Lasermodule 8mm
Ø8mm(58x145) LF-Halterung für Lasermodule mit Durchmesser 8mm Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Halterung für Lasermodule mit Durchmesser 8mm. Befestigung: Drei Durchgangslöcher 4mm im Standfuß; Lochabstand 43mm Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz / Silber Main Data EAN: 4260129041353 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Weight: 84 g Mount Parameters Total Height (h1): 145 mm Height to Laseraxis (h2): 139 mm Mount Diameter (d1): Ø 8 mm Diameter of Base (d2): Ø 58 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 90 ° Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

€32.90*
Bracket for Lasermodule 9mm
Ø9mm(25x67) Halterung-Ballhead für Lasermodule mit Durchmesser 9mm Laser holder with a height of 67 mm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Halterung für Lasermodule mit Durchmesser 8mm. Befestigung: 1/4''UNC Innengewinde im Standfuß; Zwei Durchgangslöcher 4mm; Zwei Durchgangslöcher 2,5mm; Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042343 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 67 mm Height to Laseraxis (h2): 61 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 9 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 18 mm Height of Mount (g): 16 mm Height of Mount Head (k): 32.5 mm Depth of Mount (t): 27 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-09(25x67) on Amazon

€72.90*
Bracket for Lasermodule 9mm
Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4260129041360 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 85 g Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

€32.90*

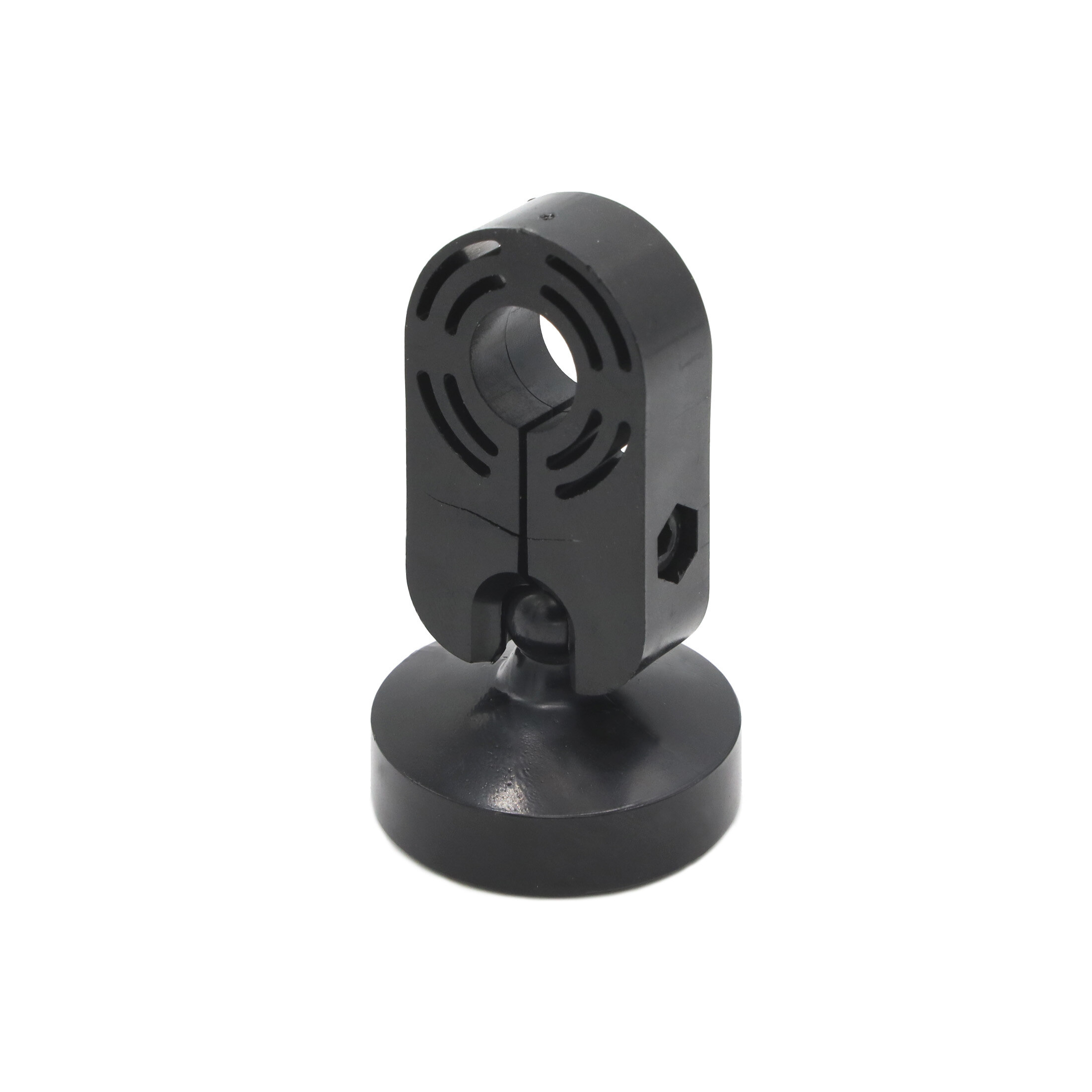

Magnetic Mount for 12mm Laser Module
Ø12mm (36x62) Magnetic holder for 12mm laser module, diameter 36mm, height 62mm, plastic Inexpensive mounting bracket in a simple design for laser modules with a diameter of 12mm. The bracket is adjustable in all degrees of freedom. The magnetic base allows for quick and uncomplicated secure attachment. The total height of the bracket is 62 mm. A holding force of 6.5 kg is achieved. If a higher holding force is needed, there are, for example, the professional MAGNETIC-MOUNT-PRO from Picotronic in sizes ranging from 6mm to 22mm in millimeter increments with a holding force of 65 kg. Halterung für Lasermodule mit Durchmesser 12mm. Befestigung: Magnetischer Standfuß mit einer Halterkraft von 6,5 kg Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Material: Kunststoff; Farbe: Schwarz Preiswerte Halterung für viele Anwendungen Accessesories Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO Magnetic Mount for Lasermodul 12mm12mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm Magnetic Mount for Lasermodul 12mmØ12mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm Main Data EAN: 4055132022099 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -50°C - 70 °C Mechanical Parameters Material: Plastic Housing Color: black Weight: 20 g Mount Parameters Total Height (h1): 62 mm Height to Laseraxis (h2): 47 mm Height of Base (h3): 17 mm Mount Diameter (d1): Ø 12 mm Diameter of Base (d2): Ø 36 mm Width of Mount (b): 26 mm Height of Mount (g): 45 mm Depth of Mount (t): 12 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 180 ° Matching articles Punktlaser grün 532nm 1mW Ø12x60 100mm KabelPunktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x60mm Punktlaser grün 532nm 1mW Ø12x60 250mm KabelPunktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x60mm, Kabel 0,25m Line laser, green, 520 nm, 30 °, 7 mW, 5 V DC, Ø12x40 mm, Laser Class 2, Focus fixed (400mm), Cable length 500 mmLine laser, green, 520nm, 7mW, 30°, Laser Class 2, Focus 0.4m, 5V DC, 12x40mm Cross laser, green, 520 nm, 30 °, 10 mW, 5 V DC, Ø12x40 mm, Laser Class 2M, Focus fixed (400mm), Cable length 500 mmCross laser, green, 520nm, 10mW, 30°, Laser Class 2M, Focus 0.4m, 5V DC, 12x40mm Doe laser, green, 532 nm, 15 °, 5 mW, 3 V DC, Ø12x55 mm, Laser Class 2M, Focus adjustable, Cable length 200 mm, 2.5 mm DC socket (GND pole inner) Laser module point laser green 520nm 3mW 5V DC Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

€29.89*
