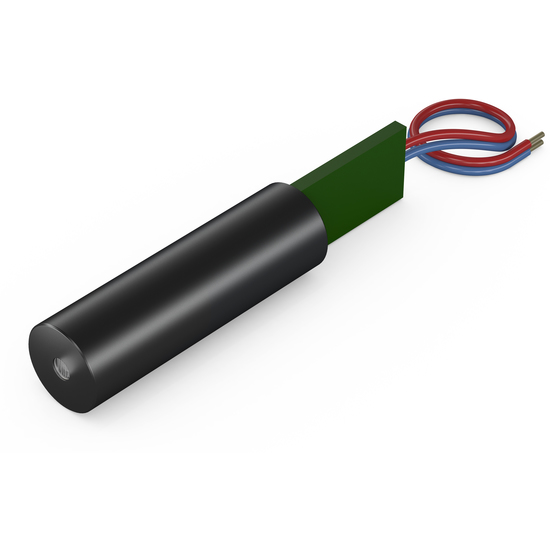

Laserfuchs laser LFD532-1-3(12x60)-C250

Punktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x60mm, Kabel 0,25m

The type is a dot laser that projects a laser dot. This laser has a very compact design ( x ). This diode laser module is distinguished by its high efficiency and its high lifetime of more than .High-quality laser moduleThe diode has a power of . Therefore, the module can be used in different applications and also in room light. This module is perfectly suited for leveling and positioning tasks. Caused by laser classification , no regulatory registration is necessary. The laser can be applied e.g. in discotheque events and it can be mounted in tools without any problems.

• Operating Voltage 3V DC
• Fixed focus
• Laser Class 2
• Compact size

• Abstrahlcharakteristik: elliptischer Punkt, Punktgröße <4mm@10m
• Optische Leistung: 1mW (Laserklasse 2); Fokus kollimiert
• kompakte Bauform: 12x60mm; Achsabweichung: bis zu 3,0°, Kabellänge 0,25m (verlängert)
• Für Anwendungen in z.B. Laserwasserwaagen, Lasermarkierungssystemen, der Robotertechnik, in Industrie, Handwerk, Hobby und dem Showbereich.
• Spannungsversorgung 3V. Zur Stromversorgung können Sie z.B. unser Picotronic Batteriepack 3V oder das Netzteil Picotronic LFNT-3 verwenden.

Main Data

• Warranty: 1 years
• customs tarif number: 90132000000

Technical Parameters

• Lifetime: > 5,000 h
• Operating Temperature: 15°C - 30 °C
• Storage Temperature: -40°C - 80 °C

Optical Parameters

• Beam Shape: Dot
• Optical Power: 1 mW
• Laser Class: 2
• Divergence: D - 0.5 mrad
• Beam Diameter: 2.5 mm
• Size of Laserdot: <4mm@10m
• Operating Distance: 50 m
• Optics: glass lens AR coated
• Beam Mode: TEM00
• Laser technology: Solid State (YVO4+KTP)
• Focus: collimated
• Warm up time: < 15 min

Electrical Parameters

• Potential of Housing: isolated
• Operating Voltage: 2.7 - 3.3, typ 3 V DC
• Operating Current: 125 - 375, typ 250 mA
• Cable color positive: red
• Cable color GND: blue
• Power Supply: LFNT-3

Mechanical Parameters

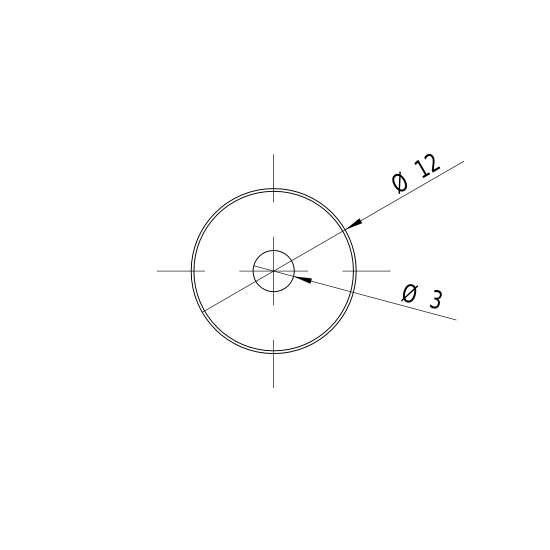

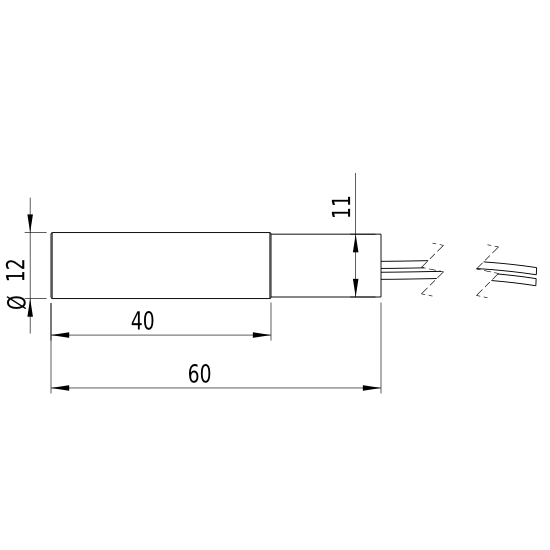

• Size: Ø12x60 mm
• Material: aluminium
• Cable length: 250 mm
• Wire type: 26AWG, 0,14mm²
• Output Aperture: 3 mm
• Housing Color: black
• Weight: 13.5 g
• Stripping of wire: 5 mm
