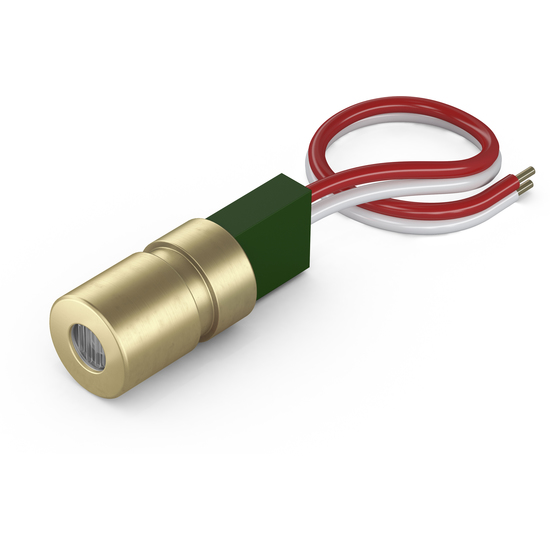

Laserfuchs laser LFD635-1-3(8x23)

€14.90*

Prices incl. VAT. No shipping costs for orders over 100 Euro in the EU

Available, delivery time: 1-2 days

Product number: 70103847

Product information "Laserfuchs laser LFD635-1-3(8x23)"

Punktlaser, rot, 635nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 8x23mm

The type is a dot laser that projects a red laser dot. This type of laser module with its wavelength of 635nm has an enhanced visibility over a comparable laser with 650nm wavelength. The optical diode power of the laser module amounts to . Typical operation areas are low cost applications. This laser has a very compact design ( x ).Caused by laser classification , no TÜV-registration is necessary. The laser can be applied e.g. in discotheque events and it can be mounted in tools without any problems. (The laser protective measures are still to be considered.) The power consumption of is really low. Accordingly, two batteries can be used for operation and the laser module can be used mobile.

Operating Voltage 3V DC
Laser Class 2
Low cost
Compact size
Fixed focus

Abstrahlcharakteristik: elliptischer Punkt, Punktgröße <4..6mm@5m; Laser mit 635nm besitzen eine bessere Sichtbarkeit als z.B. Laser mit 650nm.
Optische Leistung: 1mW (Laserklasse 2); Fokus kollimiert
Sehr Kompakte Bauform: 8x23mm; Achsabweichung: bis zu 3,0°
Für Anwendungen in z.B. Laserwasserwaagen, Lasermarkierungssystemen, der Robotertechnik, Hobby, Handwerk, der Industrie und dem Showbereich.
Spannungsversorgung 3V. Zur Stromversorgung können Sie z.B. unser Picotronic Batteriepack 3V oder das Netzteil Picotronic LFNT-3 verwenden.

Main Data

EAN: 4260129041148
Warranty: 1 years
customs tarif number: 90132000000

Technical Parameters

Lifetime: > 3,000 h
Operating Temperature: -20°C - 40 °C
Storage Temperature: -40°C - 80 °C

Optical Parameters

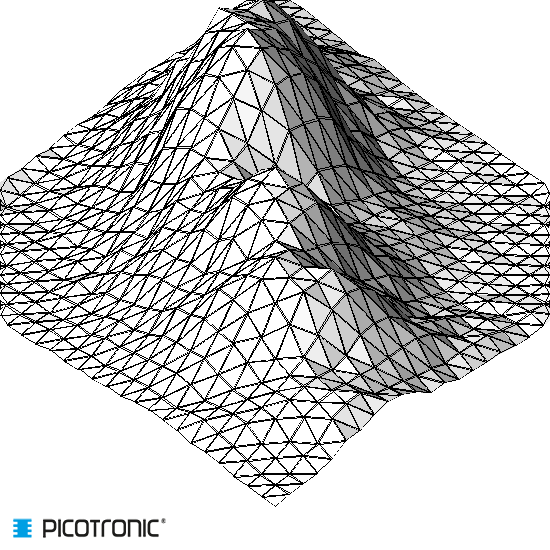

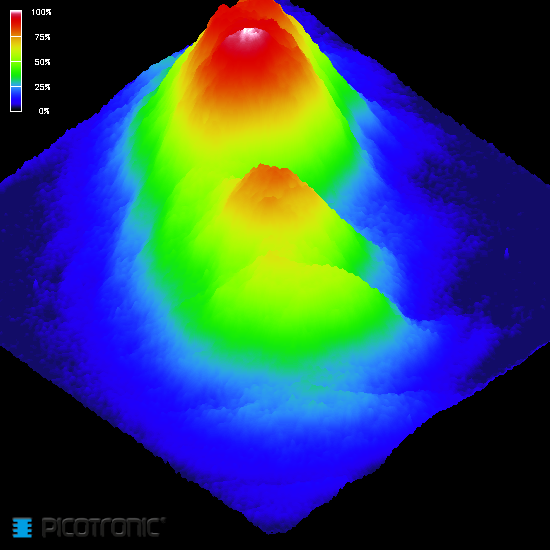

Beam Shape: Dot
Optical Power: 1 mW
Laser Class: 2
Divergence: G - 0.8 mrad

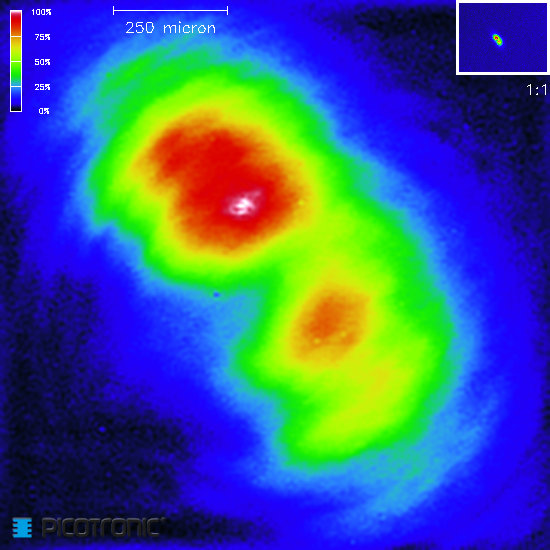

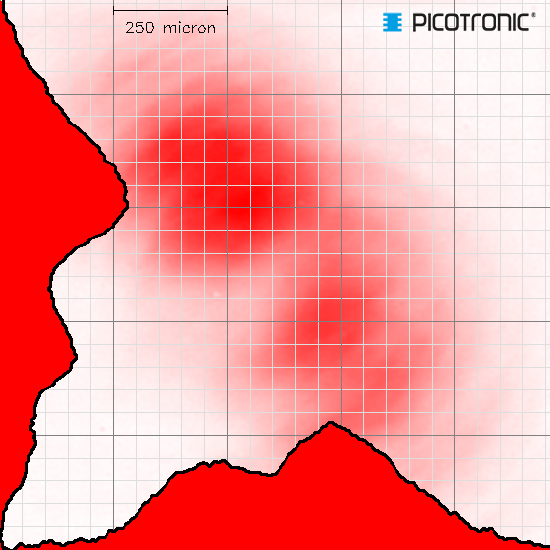

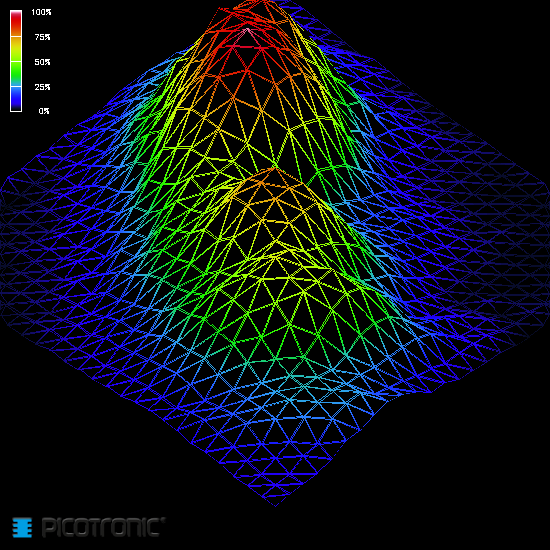

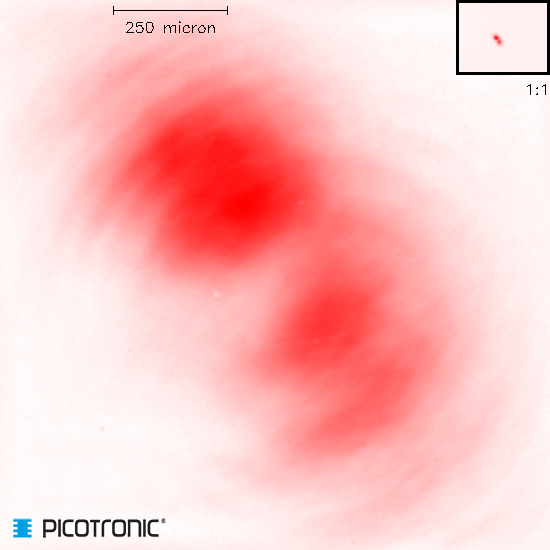

Size of Laserdot: <4..6mm@5m
Operating Distance: 10 m
Optics: acryl lense
Laser technology: diode
Focus: collimated

Electrical Parameters

Potential of Housing: VDD(+)
Operating Voltage: 2.7 - 3.3, typ 3 V DC
Operating Current: 30 mA
Cable color positive: red
Cable color GND: white

Mechanical Parameters

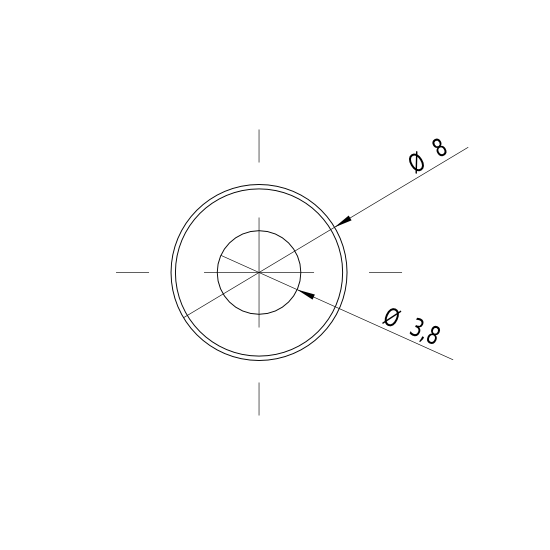

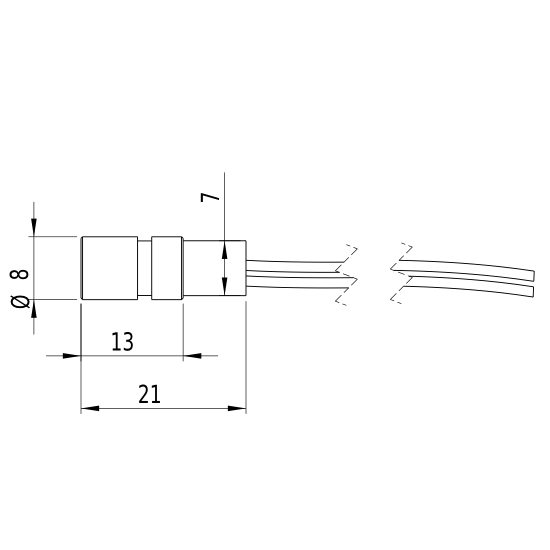

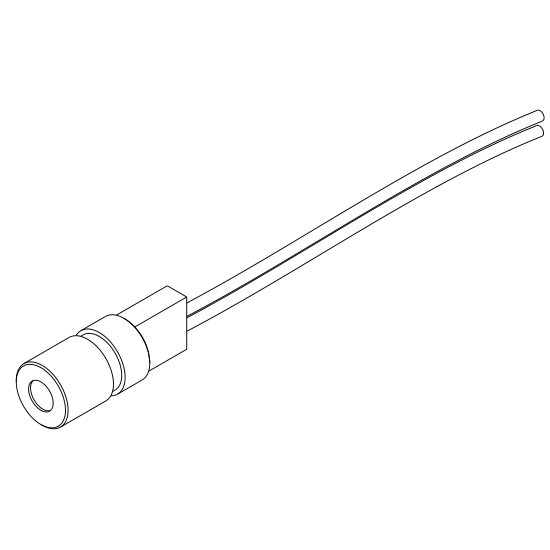

Size: Ø8x23 mm
Material: Brass
Cable length: 100 mm
Output Aperture: 3.5 mm
Weight: 3.5 g
