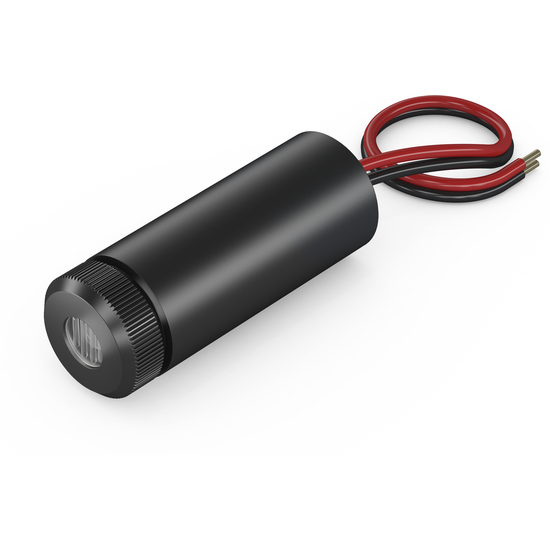

Laser Lasermodul Punktlaser rot 650nm 1mW 3VDC Fokus einstellbar 12x30,5mm

€17.90*

Prices incl. VAT. No shipping costs for orders over 100 Euro in the EU

Available, delivery time: 1-2 days

Product number: 70104080

Product information "Laser Lasermodul Punktlaser rot 650nm 1mW 3VDC Fokus einstellbar 12x30,5mm"

Fokussierbarer Punktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus einstellbar, 3V DC, 12x30.5mm

The type is a dot laser that projects a red laser dot. The laser module includes a adjustable optics. Accordingly, it can be set optimally to fit your application. The laser module has a controller electronic and just needs to be attached to a power supply (). Caused by laser classification , no TÜV-registration is necessary. The laser can be applied e.g. in discotheque events and it can be mounted in tools without any problems. (The laser protective measures are still to be considered.)The power consumption of is really low. Accordingly, two batteries can be used for operation and the laser module can be used mobile. Typical operation areas are low cost applications. The working life of the laser module exceeds .You may use our battery pack with 2 x 1.5 volt batteries as power supply.

Operating Voltage 3V DC
Laser Class 2
Low cost
Adjustable focus
Compact size

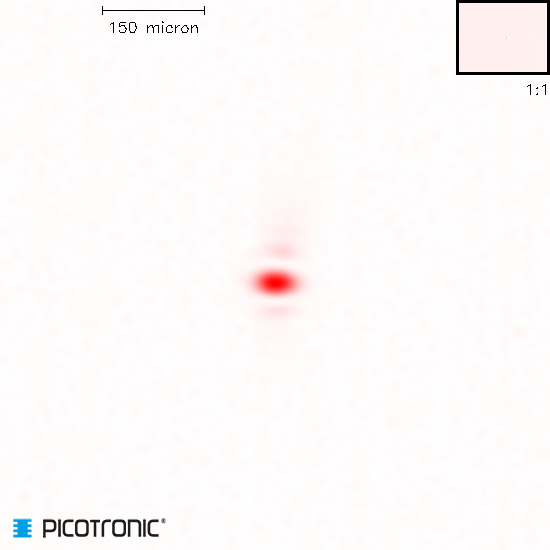

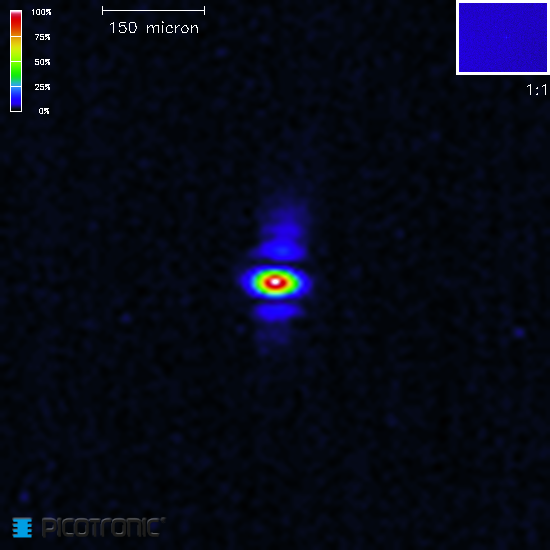

Abstrahlcharakteristik: elliptischer Punkt, Punktgröße veränderbar
Optische Leistung: 1mW (Laserklasse 2); Fokus einstellbar
Kompakte Bauform: 12x30.5mm; Achsabweichung: bis zu 3,0°
Für Anwendungen in z.B. Laserwasserwaagen, Lasermarkierungssystemen, der Robotertechnik, in Industrie, Handwerk, Hobby und dem Showbereich.
Spannungsversorgung 3V. Zur Stromversorgung können Sie z.B. unser Picotronic Batteriepack 3V oder das Netzteil Picotronic LFNT-3 verwenden.

Accessesories

MULTI-MOUNT-12(45x75)-MAGNETIC
Magnetic Mount for Lasermodul 12mm MULTI-MOUNT-12(45x75)
Mount for Lasermodul 12mm Mount-12(20x57)
Mount for Lasermodul 12mm BALLHEAD-MOUNT-12(25x70)
Bracket for Lasermodule 12mm LFNT-3
Power supply 3V DC (1200mA) PICO-LPG-635-660
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development BALLHEAD-MOUNT-12-EP-70117875
Bracket for Lasermodule 12mm KS-MOUNT-12(36X62)-MAGNETIC
Magnetic Mount for Lasermodul 12mm

Main Data

EAN: 4260129041230
Warranty: 1 years
customs tarif number: 90132000000

Technical Parameters

Lifetime: > 3,000 h
Operating Temperature: -20°C - 40 °C
Storage Temperature: -40°C - 80 °C

Optical Parameters

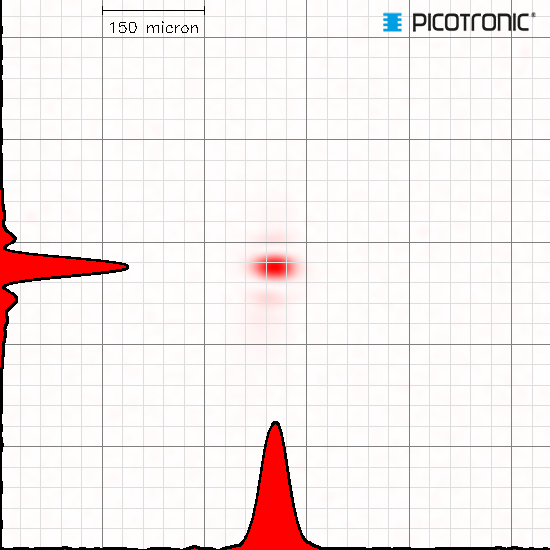

Beam Shape: Dot
Optical Power: 1 mW
Laser Class: 2
Divergence: H - 1.0 mrad
Size of Laserdot: adjustable
Operating Distance: 10 m
Optics: acryl lense
Laser technology: diode
Focus: adjustable

Electrical Parameters

Potential of Housing: VDD(+)
Operating Voltage: 2.7 - 3.3, typ 3 V DC
Operating Current: 5 - 15, typ 10 mA
Cable color positive: red
Cable color GND: black
Power Supply: LFNT-3

Mechanical Parameters

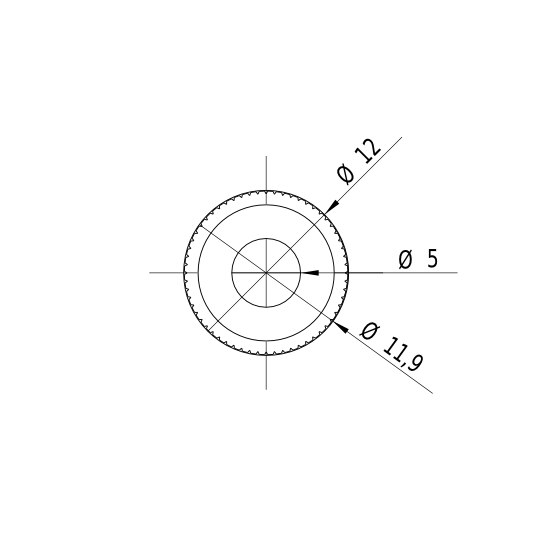

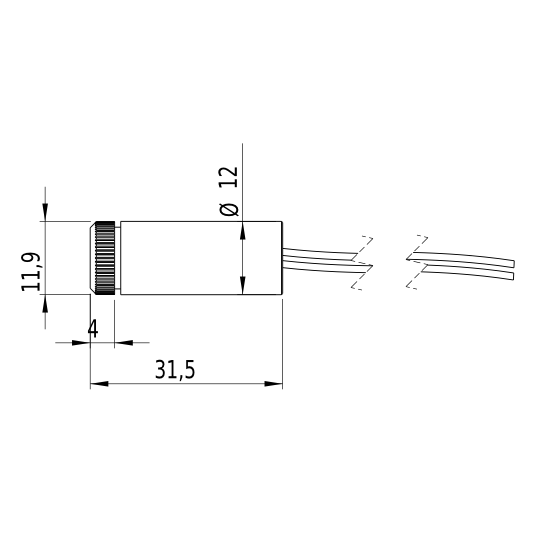

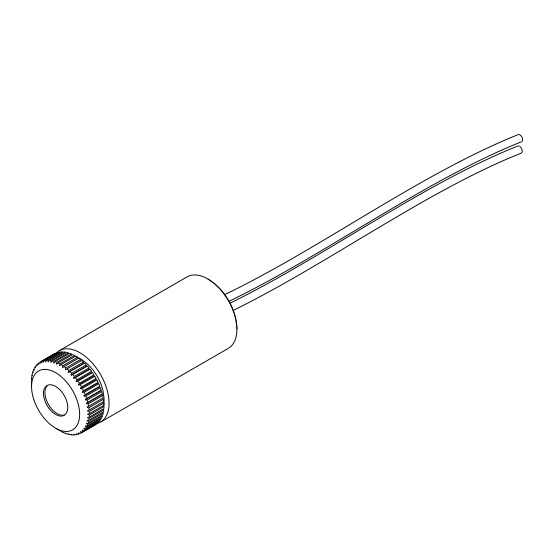

Size: Ø12x30.5 mm
Material: Brass
Cable length: 90 mm
Wire type: 26AWG, 0,14mm²
Output Aperture: 3 mm
Weight: 15 g
