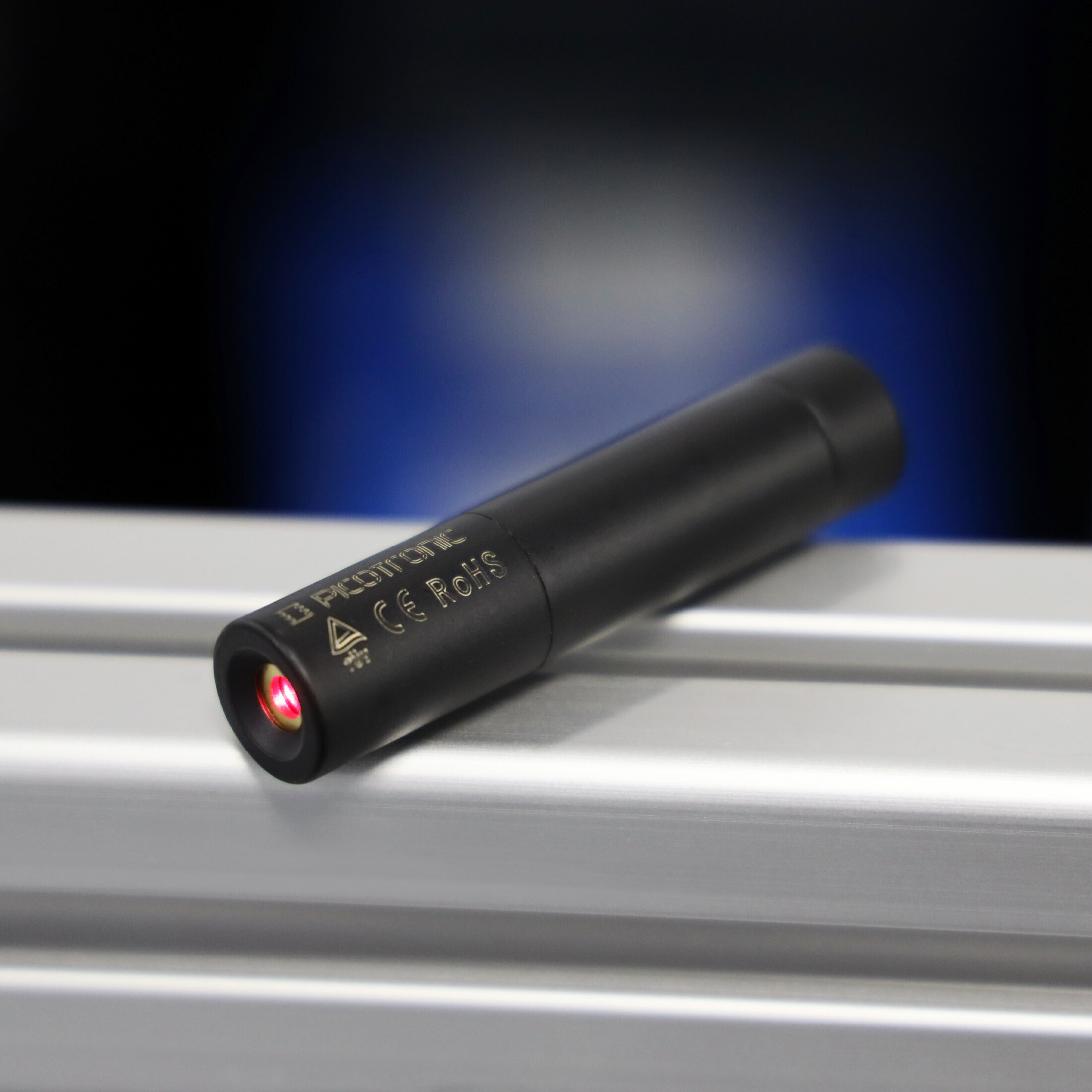

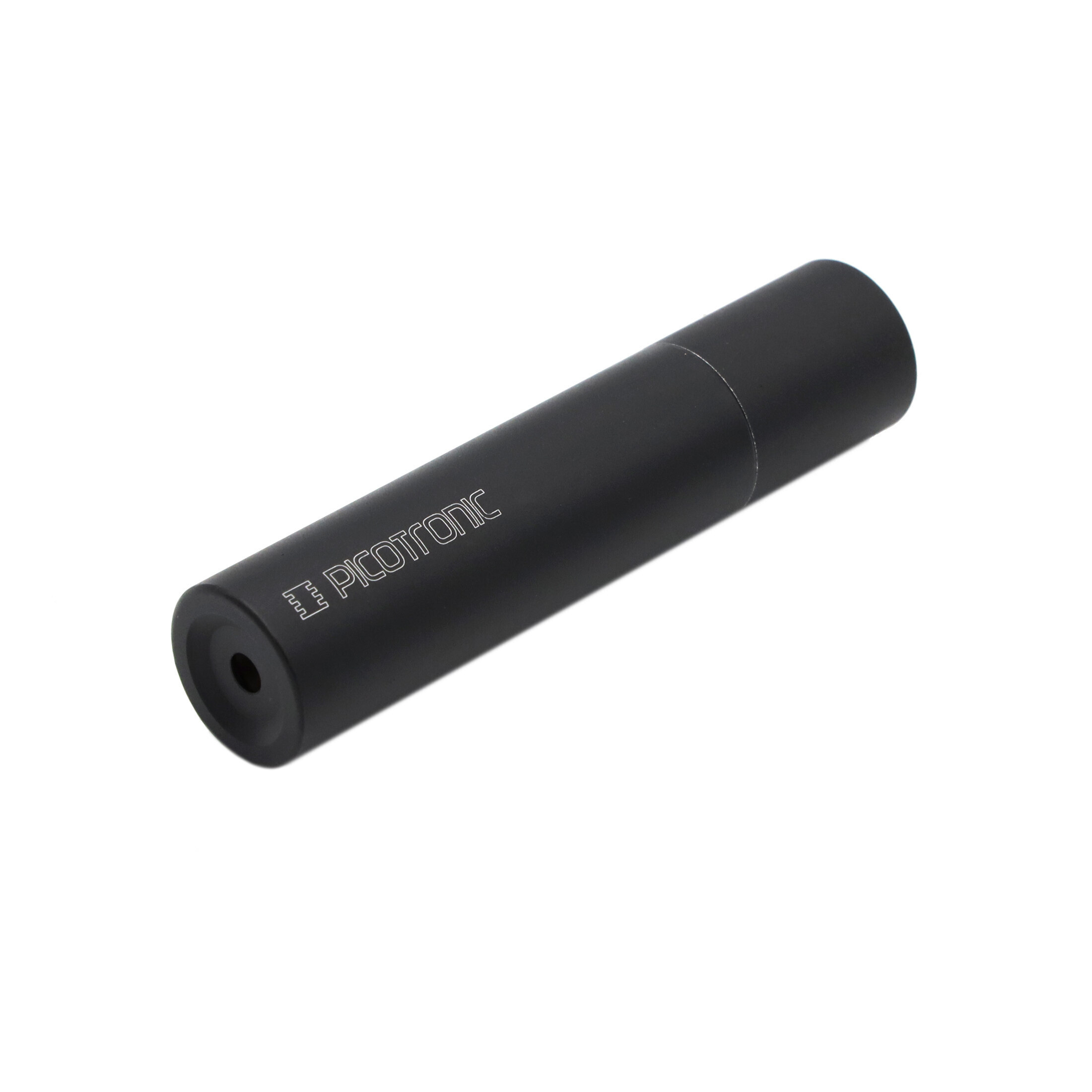

Punktlaser Lasermodul rot 650nm 1mW incl. Batterie

€20.90*

Prices incl. VAT. No shipping costs for orders over 100 Euro in the EU

Available, delivery time: 1-2 days

Product number: 70105643

Product information "Punktlaser Lasermodul rot 650nm 1mW incl. Batterie"

Punktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3-4,5V DC, 15x67mm, Batteriebetrieb

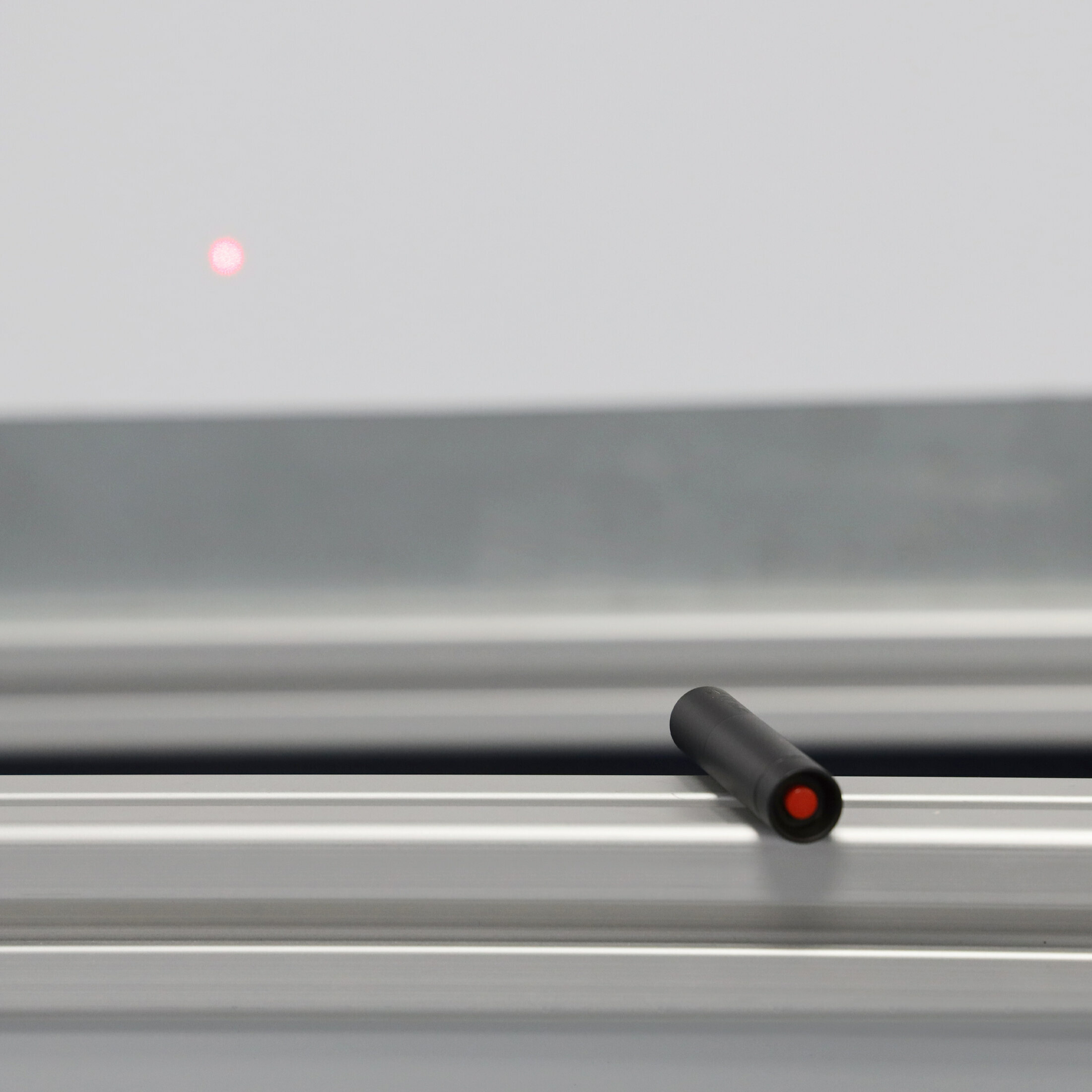

The type LFD650-1-4.5(15x68) is a dot laser that projects a red laser dot. The laser module emits light of the wavelength of 650nm. The module contains two button cells that are included. Therefore, wireless operation is possible over several hours. This diode laser module measures 15mm x 68mm. Accordingly, it is a small and effective laser source. Therefore, the module can be used in different applications and also in room light. The optimal operation range of the laser is 10m. This positioning laser is an universal tool for hobby and trade. It reduces the effort that has to be put into positioning and alignment tasks. Typical operation areas are low cost applications. This module is laser class 2. Please note: Caused by the product design deviations between optical axis and mechincal axis are possible. This laser is optimized for room light and projects a bright red laser dot. The visibility can be reduced by bright ambient light or sunlight.

Compact size
Laser Class 2
Low cost
Low power consumption
With battery

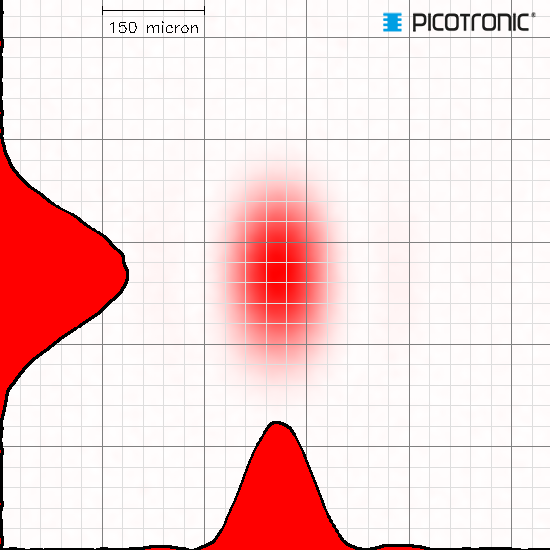

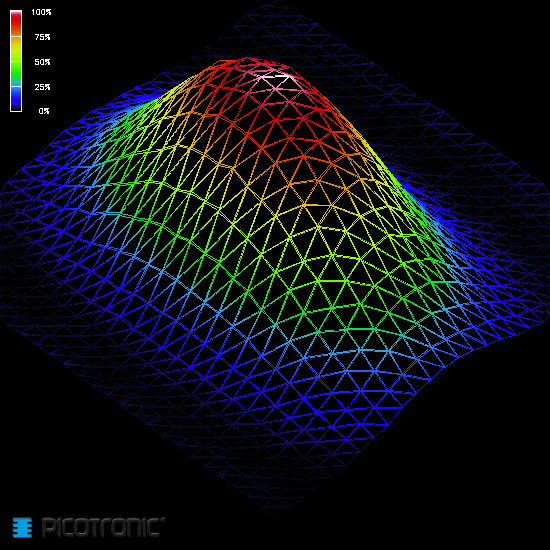

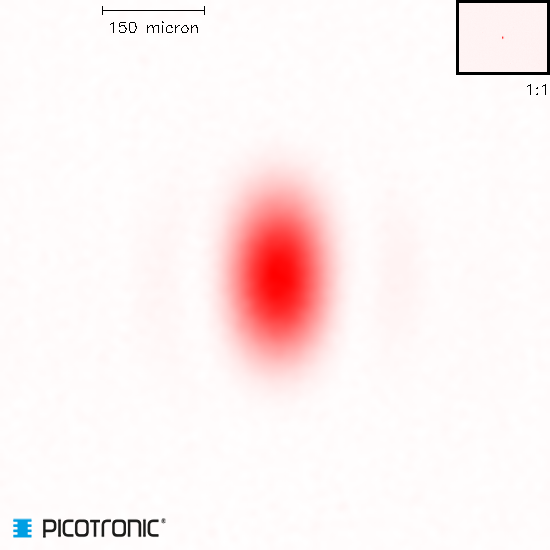

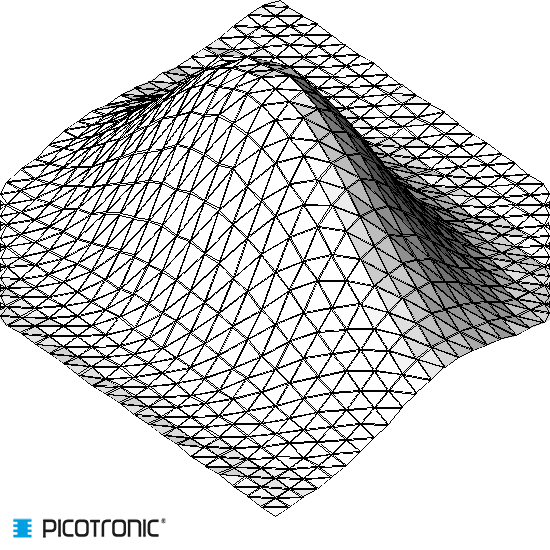

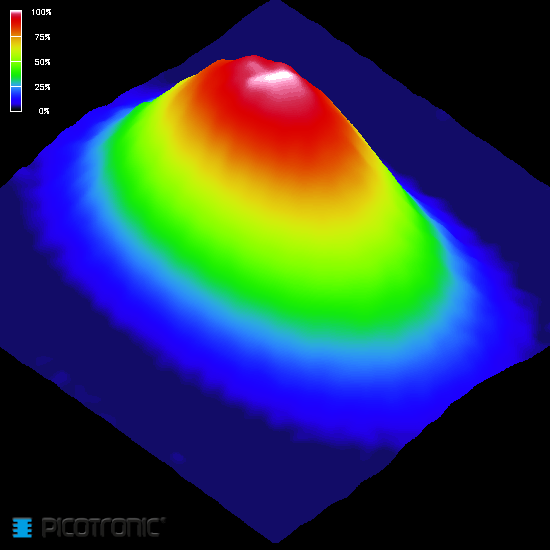

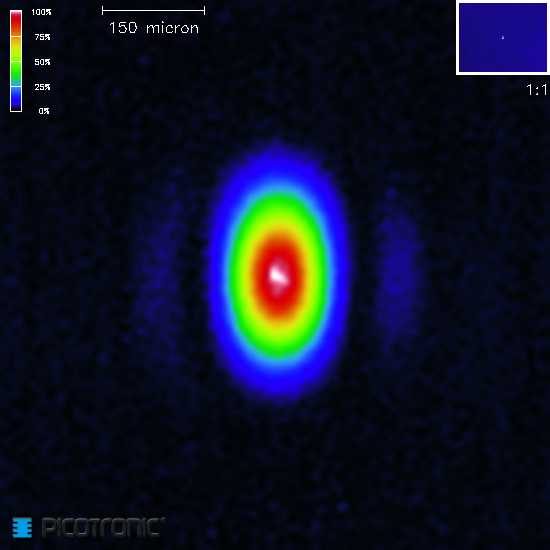

Beam characteristics: elliptical point, point size <4..6mm
Axis deviation approx. 1.5 ° to 3 °

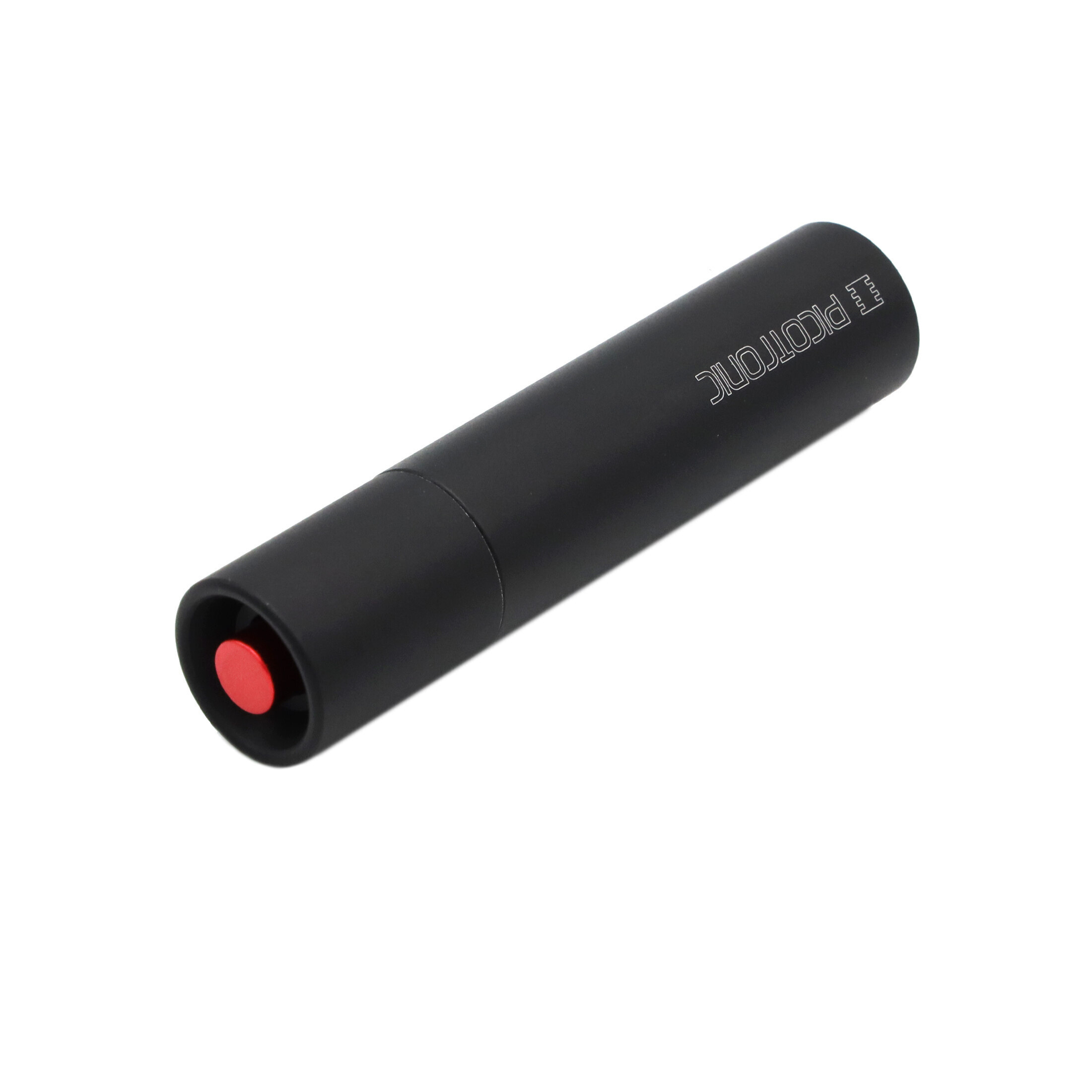

Latching switch: Press the switch at the end of the laser module once and the laser is switched on permanently. Pressing it again switches the laser off again.
2 LR44 button cells are included
For presentations, positioning or for your cat

delivery content

Im Lieferumfang sind zwei Batterien vom Typ LR44 enthalten.

Accessesories

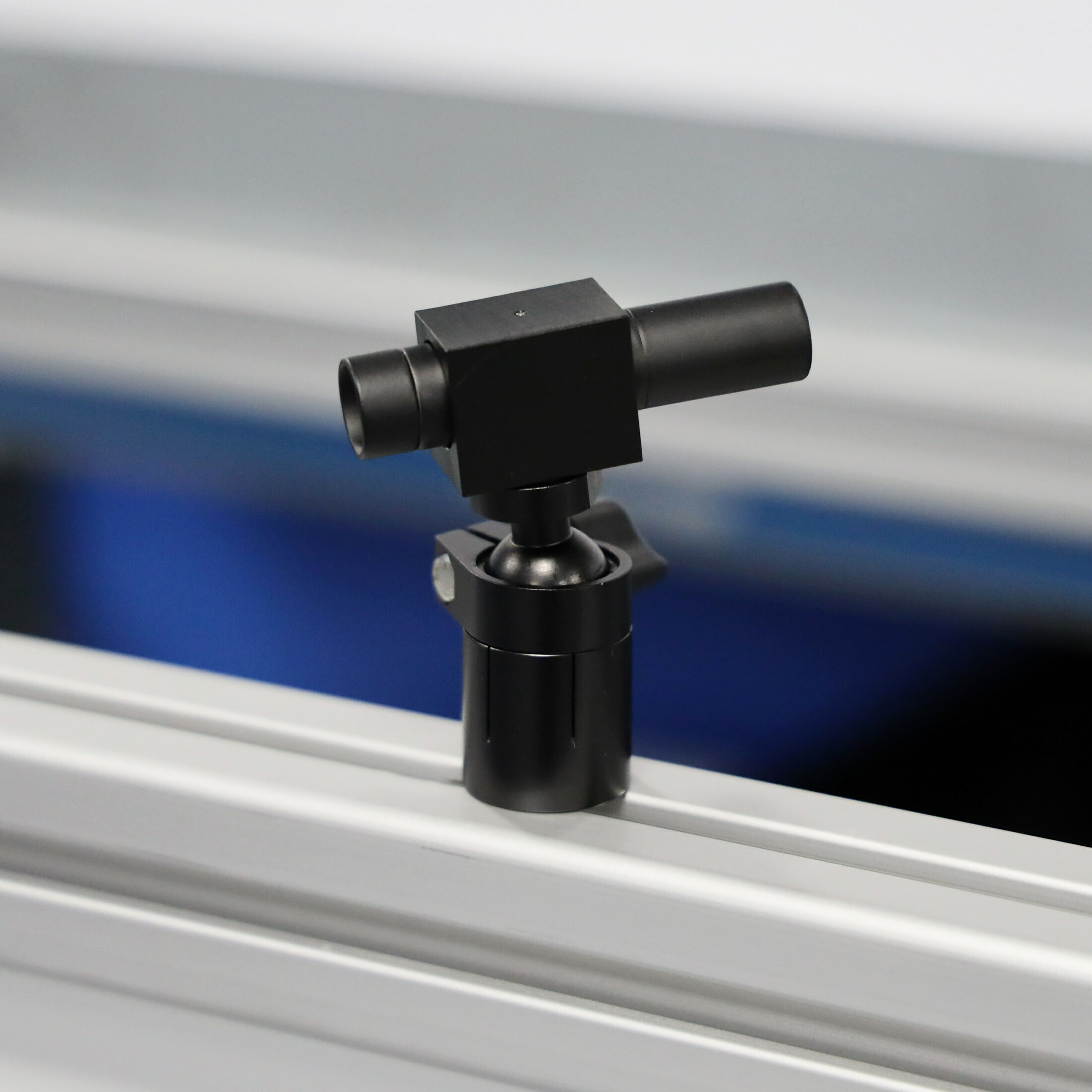

MULTI-MOUNT-15(45x75)-MAGNETIC
Magnetic Mount for Lasermodul 15mm MULTI-MOUNT-15(45x75)

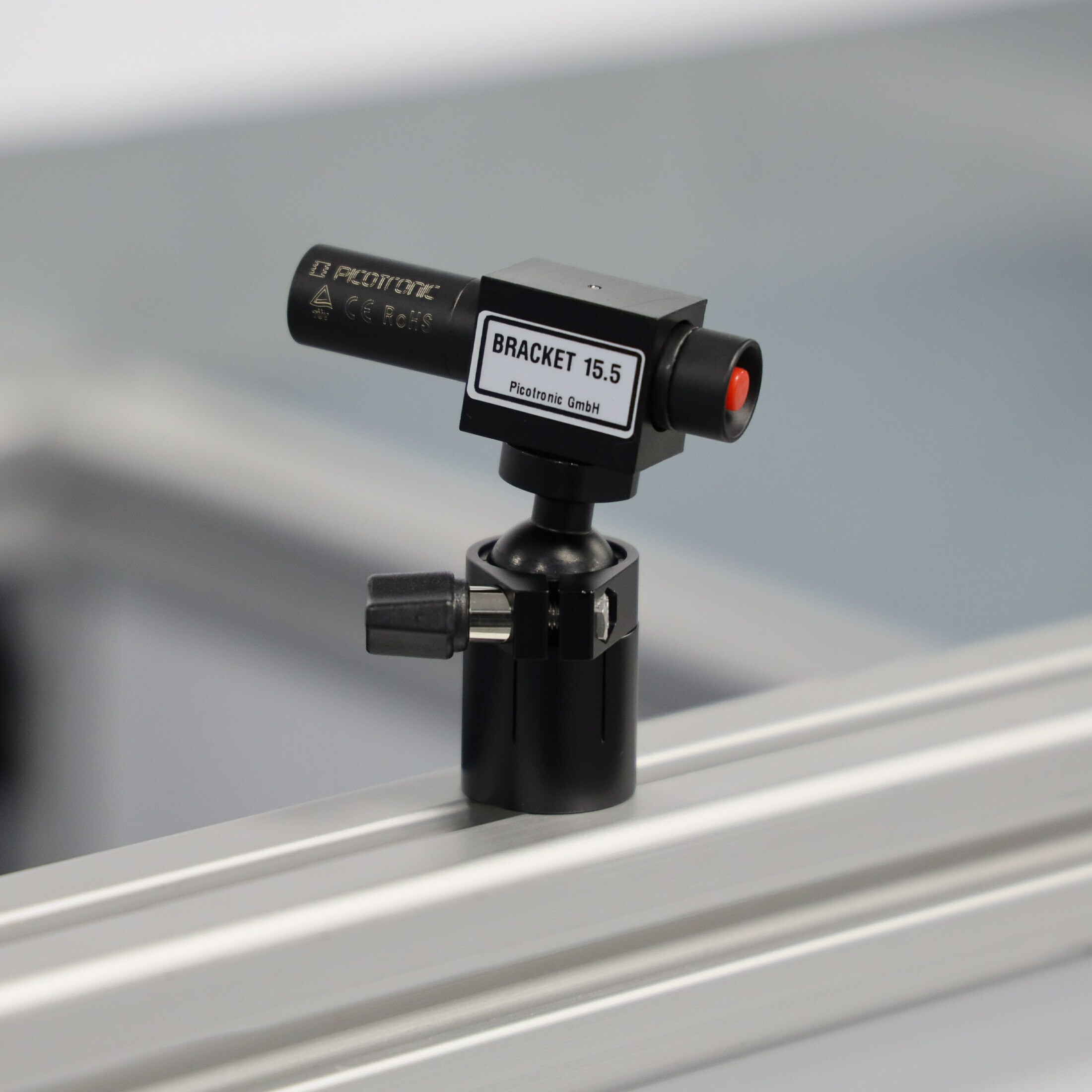

Mount for Lasermodul 15mm PICO-LPG-635-660
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development

Main Data

EAN: 4260129041100
Warranty: 1 years
customs tarif number: 90132000000

Technical Parameters

Lifetime: > 3,000 h
Operating Temperature: -20°C - 40 °C
Storage Temperature: -40°C - 80 °C

Optical Parameters

Beam Shape: Dot
Optical Power: 1 mW
Laser Class: 2
Divergence: H - 1.0 mrad
Beam Diameter: 3 mm
Size of Laserdot: <4..6mm@5m
Operating Distance: 10 m
Optics: acryl lense
Laser technology: diode
Focus: collimated

Electrical Parameters

Potential of Housing: VDD(+)
Operating Voltage: 3 - 4.5 V DC
Operating Current: 10 - 30, typ 20 mA

Mechanical Parameters

Size: Ø15x67 mm
Material: aluminium
Output Aperture: 3 mm
Housing Color: black
Weight: 27 g
