Laserfuchs Linelaser red, 635nm, 90°, 5V DC, Ø12x45 mm, Focus 1m, class 1, power supply included

Product information "Laserfuchs Linelaser red, 635nm, 90°, 5V DC, Ø12x45 mm, Focus 1m, class 1, power supply included"

Line lasermodule, red, 650nm, 5mW, 90°, class 1, focus 1m, 5V DC, 12x45mm, with power supply

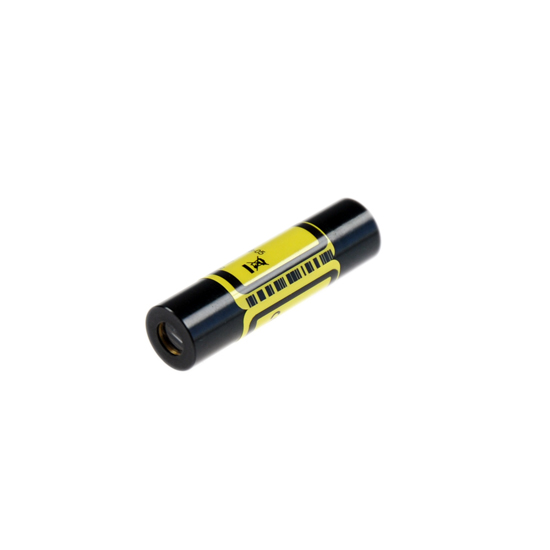

The type LFL650-5(12x45)90-NT is a laser that projects a red laser line. The laser module emits light of the wavelength 650nm. This diode laser module measures 12x45mm. The fan angle of 90° generates a laser line of 2m length at a working distance of 1m. The operating voltage is 5 volts. This positioning laser is an universal tool for industry, hobby and trade. It reduces the effort that has to be put into positioning and alignment tasks. This module is laser class 1. Including power supply.

  • Abstrahlcharakteristik: Linie, Liniendicke <1,2mm@1m;
  • Optische Leistung: Laserklasse 1; Fokus 1m
  • Kompakte Bauform: 12x45mm; Öffnungswinkel: 90°; Achsabweichung: bis zu 3,0°; DC-Hohlstecker 2.1mm

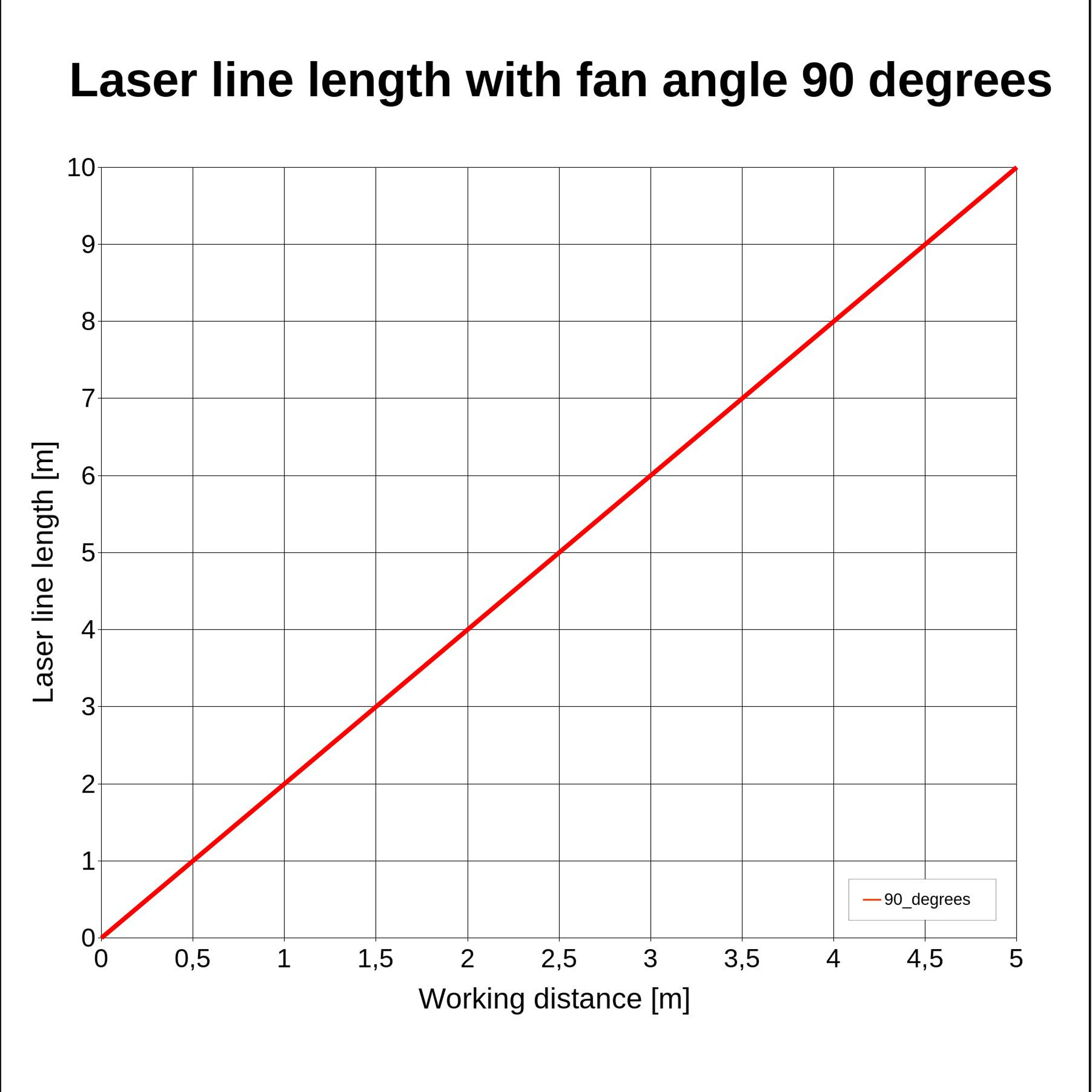

  • Der Öffnungswinkel (90°) erzeugt, bei einem Arbeitsabstand von 1m, eine Laserlinienlänge von 2m.
  • Für Anwendungen in z.B. Laserwasserwaagen, Lasermarkierungssystemen, der Robotertechnik, Hobby und dem Showbereich. Das im Lieferumfang enthaltene Netzteil, ist trennbar mit dem Lasermodul verbunden.

Delivery Content

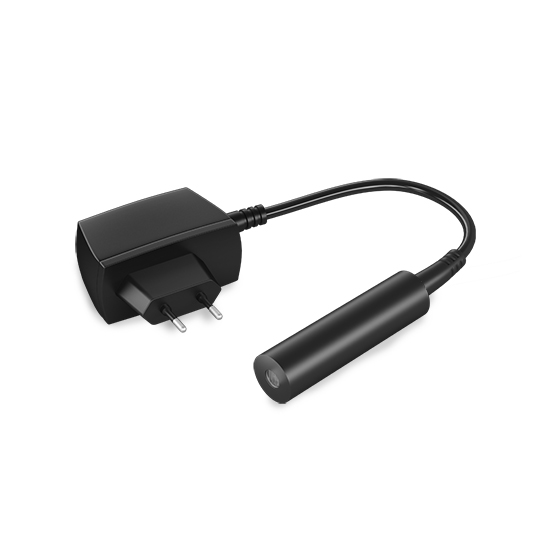

Including a Picotronic power supply LFNT-5-C.

Accessesories

Magnetic Mount for Lasermodul 12mm
12mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm
Magnetic Mount for 12mm Laser Module
Ø12mm (36x62) Magnetic holder for 12mm laser module, diameter 36mm, height 62mm, plastic
Magnetic Mount for Lasermodul 12mm
Ø12mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 12mm
Mount for Lasermodul 12mm
Ø12mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 12mm
Mount for Lasermodul 12mm
Ø12mm(20x57) MOUNT für Lasermodule mit Durchmesser 12mm
Bracket for Lasermodule 12mm
Ø12mm(25x70) Halterung-Ballhead für Lasermodule mit Durchmesser 12mm
Picotronic Stromversorgung LFNT-5-C
Netzteil, Ausgang: 5V DC, mit DC-Stecker Ø2,1 mm (GND innen), Betriebsspannung: 100-240V AC
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development
Bracket for Lasermodule 12mm

Main Data

  • EAN: 4260129041490
  • Warranty: 1 years
  • Customs tariff number: 90132000000

Technical Parameters

  • Lifetime: > 3,000 h
  • Operating Temperature: -20°C - 40 °C
  • Storage Temperature: -40°C - 80 °C

Optical Parameters

  • Beam Shape: Line
  • Optical Power: 5 mW
  • Laser Class: 1
  • Divergence: G - 0.8 mrad
  • Fan Angle: 90 °
  • Line Thickness: <1.2mm@1m
  • Operating Distance: 1 m
  • Optics: acryl lense
  • Laser technology: diode
  • Focus: fixed (1000mm)

Electrical Parameters

  • Potential of Housing: VDD(+)
  • Operating Voltage: 5 V DC
  • Operating Current: 30 mA
  • Connector: 2.1 mm DC socket (GND inner)
  • Power Supply: Power Supply, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max, Connector 2,1x5,5x9,5mm center negative

Mechanical Parameters

  • Size: Ø12x45 mm
  • Material: aluminium
  • Cable length: 1,360 mm
  • Output Aperture: 6 mm
  • Weight: 82 g

Shop+Web

  • Delivery Content: Including a Picotronic power supply LFNT-5-C.

Product Safety Information

Manufacturer

Picotronic GmbH
Rudolf-Diesel-Str.2a
56070 Koblenz
Deutschland
info@picotronic.de

Responsible Economic Operator

Picotronic GmbH
Rudolf-Diesel-Str.2a
56070 Koblenz
Deutschland
info@picotronic.de


Buy LFL650-5(12x45)90-NT on Amazon
Optical diode power: 5 mW
