Laserfuchs Linelaser green, 532nm, 90°, 3VDC, Ø16x90 mm, Focus 3m, class 1, power supply included

€189.90*

Prices incl. VAT. No shipping costs for orders over 100 Euro in the EU

Available, delivery time: 1-2 days

Product number: 70106466

Product information "Laserfuchs Linelaser green, 532nm, 90°, 3VDC, Ø16x90 mm, Focus 3m, class 1, power supply included"

Line lasermodule, green, 532nm, 5mW, 90°, class 1, focus 3m, 3V DC, 16x90mm, with power supply

The type LFL532-5-3(16x90)-NT is a laser that projects a green laser line. The laser module emits light of the wavelength 532nm. This diode laser module measures 16x90mm. The fan angle of 90° generates a laser line of 6m length at a working distance of 3m. The operating voltage is 3 volts. This positioning laser is an universal tool for industry, hobby and trade. It reduces the effort that has to be put into positioning and alignment tasks. This module is laser class 1.

Beam characteristics: line, line thickness <2mm@3m
Optical Power: Laser class1; focus 3m
Size: 16x90 mm; fan Angle: 90°; axis deviation up to 3°; Connector 2.5 mm DC plug
The fan angle of 90 creates a laser line of 6m in length at a distance of 3m.

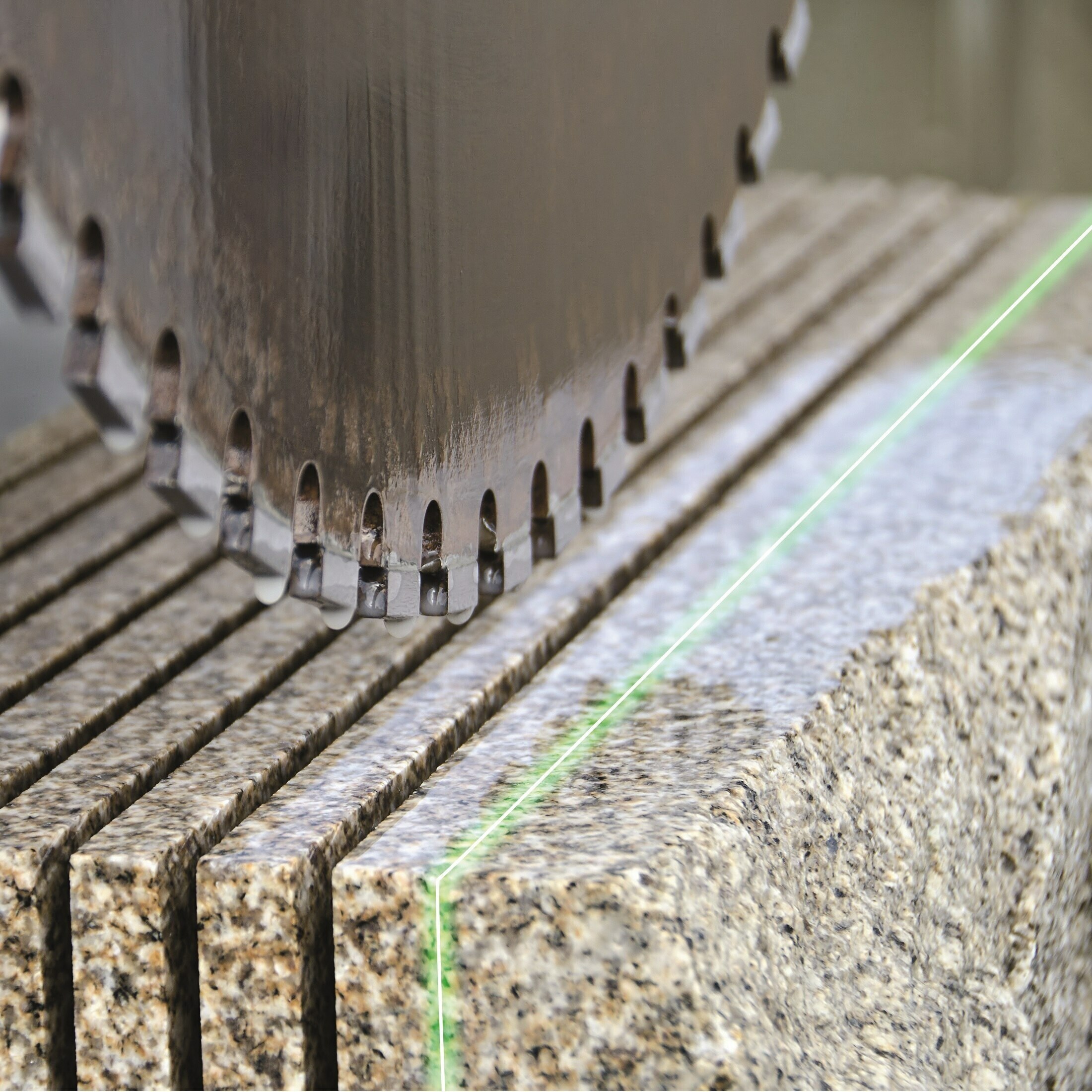

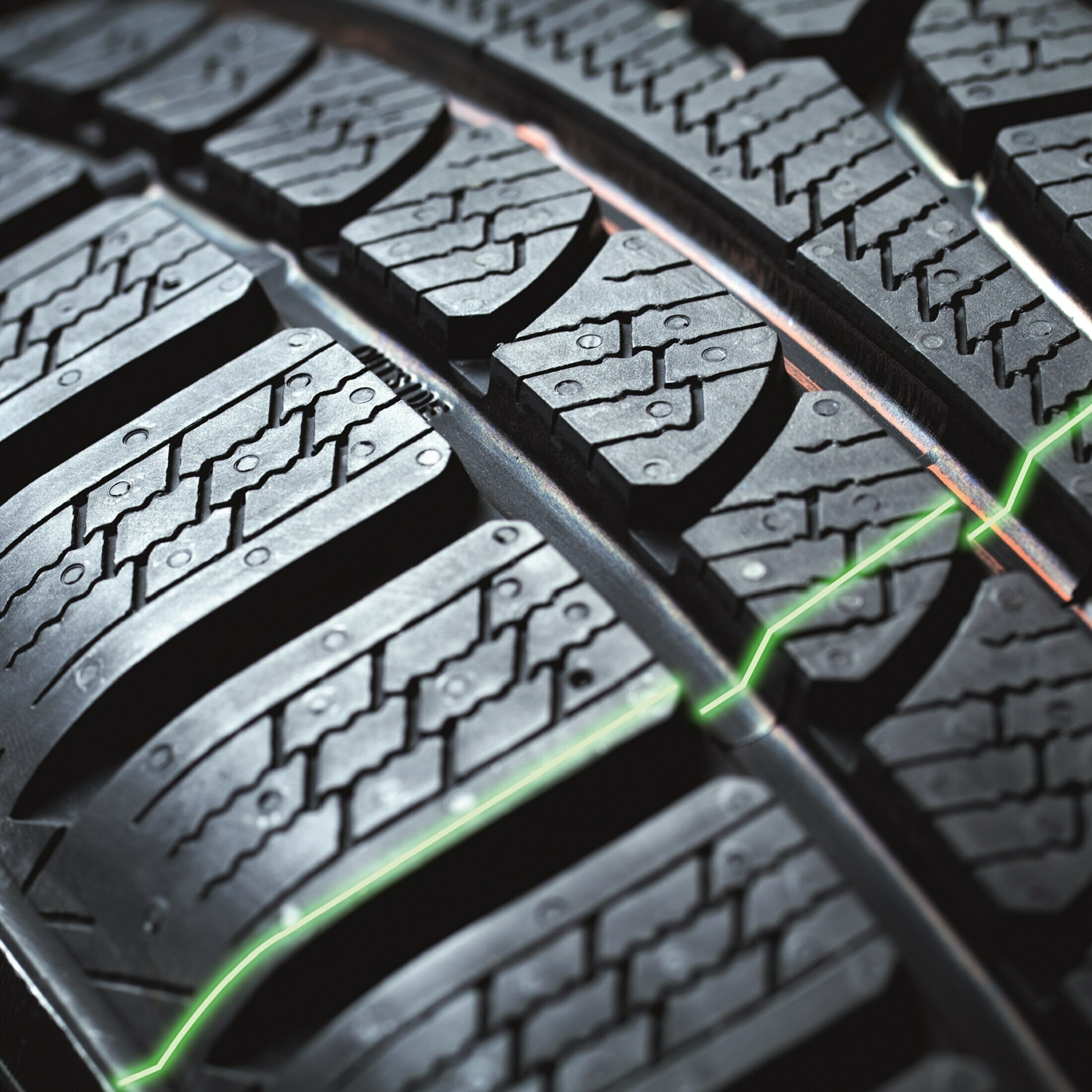

For use in, for example, presentations, for the positioning of objects and applications in industry, craft, hobby or show area. Plug connection between laser and power supply. Including a Picotronic power supply LFNT-3-C.

delivery content

Including a Picotronic power supply LFNT-3-C.

Accessesories

BALLHEAD-MOUNT-16(25x75)
Bracket for Lasermodule 16mm Mount-16(30x65)
Picotronic Bracket Mount-16(30x65) MULTI-MOUNT-16(45x75)-MAGNETIC
Magnetic Mount for Lasermodul 16mm MULTI-MOUNT-16(45x75)
Mount for Lasermodul 16mm PICO-LPG-405-532
certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications

Main Data

EAN: 4260129041896
Warranty: 1 years
customs tarif number: 90132000000

Technical Parameters

Lifetime: > 5,000 h
Operating Temperature: 15°C - 30 °C
Storage Temperature: -40°C - 80 °C

Optical Parameters

Beam Shape: Line
Optical Power: 5 mW
Laser Class: 1
Divergence: H - 1.0 mrad
Fan Angle: 90 °
Line Thickness: <2mm@3m
Operating Distance: 3 m
Optics: glass lens AR coated
Beam Mode: TEM00
Laser technology: YVO4+KTP
Protection Lens: yes
Focus: fixed (3000mm)
Warm up time: < 15 min

Electrical Parameters

Potential of Housing: VDD(+)
Operating Voltage: 2.7 - 3.3, typ 3 V DC
Operating Current: 350 mA
Connector: 2.5 mm DC plug (GND pole inner)

Mechanical Parameters

Size: Ø16x90 mm
Material: aluminium
Cable length: 1,500 mm
Output Aperture: 6 mm
Weight: 127.6 g
