Dot laser, red, 635 nm, 0.75 mW, 3 V DC, Ø9x20 mm, Laser Class 2, Focus collimated, Cable length 10…
€18.90*
Available, delivery time: 1-2 days
Punktlaser, rot, 635nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3-6V DC, 9x20mm
The type is a dot laser that projects a laser dot. This type of laser module with its wavelength of 635nm has an enhanced visibility over a comparable laser with 650nm wavelength. This diode laser module measures x . Accordingly, it is a small and effective laser source. The power consumption of is really low. Accordingly, two batteries can be used for operation and the laser module can be used mobile.You may use our battery pack with 2 x 1.5 volt batteries as power supply. This laser module can be operated without series resistor or control electronics. This positioning laser is an universal tool for industry, hobby and trade. It reduces the effort that has to be put into positioning and alignment tasks. Typical operation areas are low cost applications. This module is laser class .
- Laser Class 2
- Compact size
- Fixed focus
- Low cost
- Operating Voltage 3-6V DC
- Abstrahlcharakteristik: elliptischer Punkt, Punktgröße <4..6mm@5m; Laser mit 635nm besitzen eine bessere Sichtbarkeit als z.B. Laser mit 650nm.
- Optische Leistung: 1mW (Laserklasse 2); Fokus kollimiert
- Kompakte Bauform:9x20mm; Achsabweichung: bis zu 3,0°
- Für Anwendungen in z.B. Laserwasserwaagen, Lasermarkierungssystemen, der Robotertechnik und dem Showbereich.
- Spannungsversorgung 3V bis 6V. Zur Stromversorgung können Sie z.B. unser Picotronic Batteriepack 3V oder das Netzteil Picotronic LFNT-3 verwenden.
Accessesories
MULTI-MOUNT-09(45x75)-MAGNETIC
Magnetic Mount for Lasermodul 12mm
BALLHEAD-MOUNT-09(25x67)
Bracket for Lasermodule 9mm
MULTI-MOUNT-09(45x75)
Mount for Lasermodul 9mm
LFNT-3
Power supply 3V DC (1200mA)
PICO-LPG-635-660
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development
Main Data
- EAN: 4260129042961
- Warranty: 1 years
- customs tarif number: 90132000000
Technical Parameters
- Lifetime: > 3,000 h
- Operating Temperature: -20°C - 40 °C
- Storage Temperature: -40°C - 80 °C

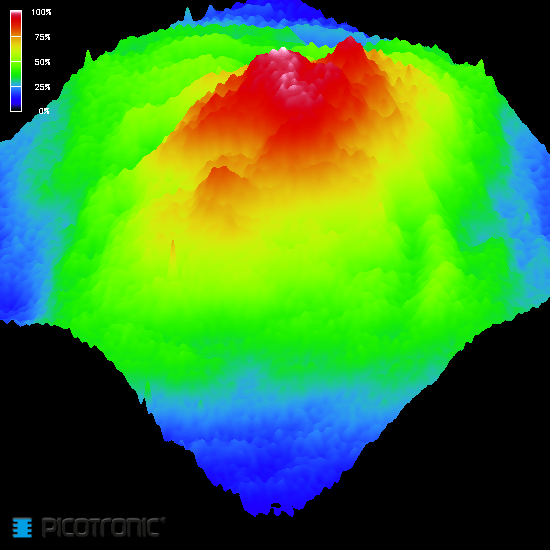

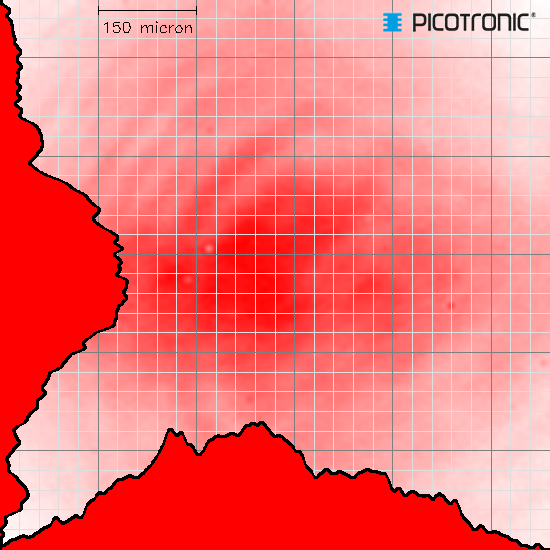

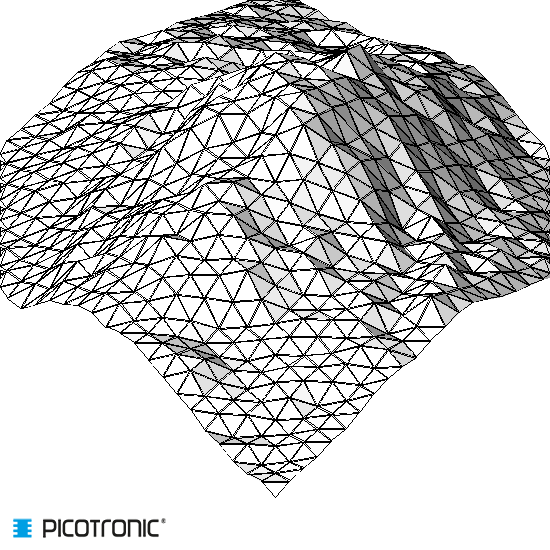

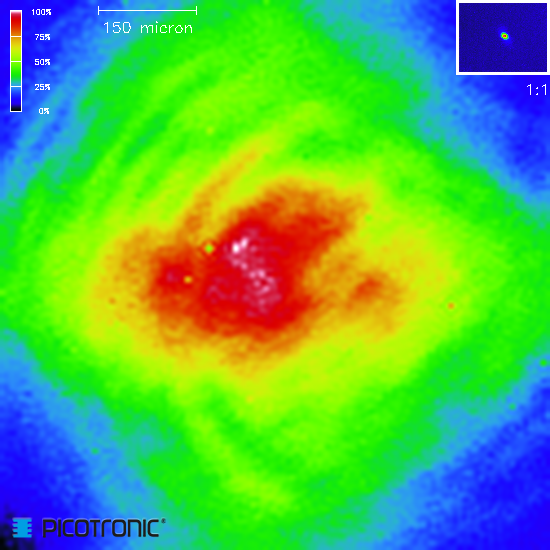

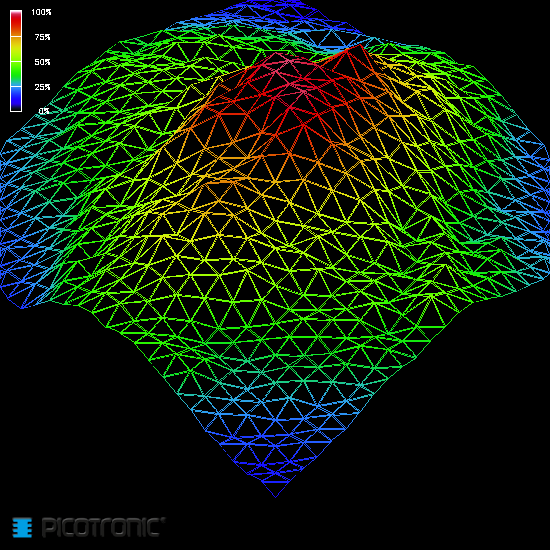

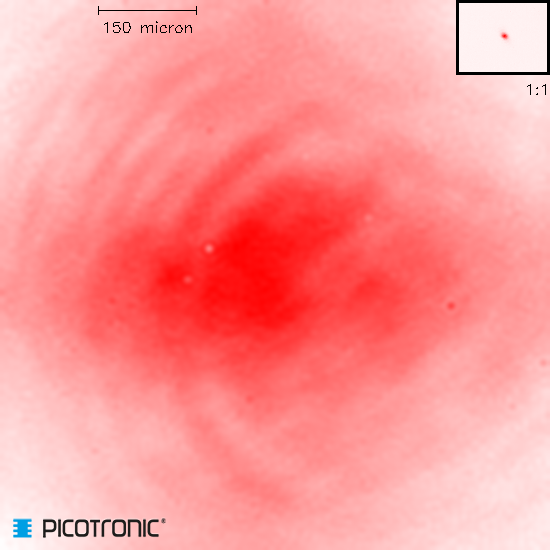

Optical Parameters
- Beam Shape: Dot
- Optical Power: 0.75 mW
- Laser Class: 2
- Divergence: H - 1.0 mrad
- Beam Diameter: 3 mm
- Size of Laserdot: <4..6mm@5m
- Operating Distance: 10 m
- Optics: acryl lense
- Laser technology: diode
- Focus: collimated
Electrical Parameters
- Operating Voltage: 3 - 6, typ 3 V DC
- Operating Current: 20 - 55, typ 35 mA
- Cable color positive: red
- Cable color GND: black
- Power Supply: LFNT-3
Mechanical Parameters
- Size: Ø9x20 mm
- Material: Brass
- Cable length: 100 mm
- Wire type: 26AWG, 0,14mm²
- Output Aperture: 3 mm
- Weight: 6 g
- Stripping of wire: 5 mm
