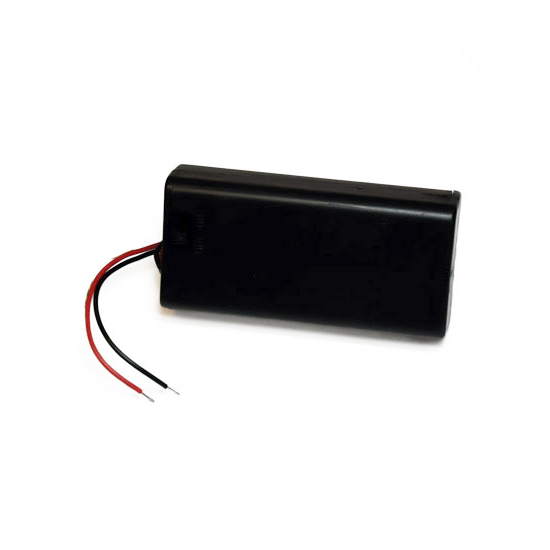

Batterie pack 3V with switch

Fokussierbarer Punktlaser, blau, 405nm, 1mW, Laser Klasse 2, Fokus einstellbar, 3V DC, 14x45mm, DC-Hohlstecker 2.5mm Bei dem Typ DD405-1-3(14x45)-CON handelt es sich um einen Punktlaser zur Projektion eines blauen Laserpunktes. Das Lasermodul emittiert Strahlung der Wellenlänge 405nm. Die Lebensdauer des Lasermoduls ist größer als 5000h. Der Laser verfügt über eine kompakte Bauform (14x45mm). Durch den einstellbaren Fokus, kann die erzeugte Punktgröße eingestellt werden. Dieser Punktlaser findet Anwendung in z.B. der Bauteilpositionierung, Nivelliergeräten, Lasermarkierungssystemen, in Industrie, Handwerk, Hobby und dem Showbereich. Das Lasermodul fällt in die Laserklasse 2. Blue Lasermodule Operating Voltage 3 V DC Glas lenses anti reflex coated Laser Class 2 Adjustable focus Abstrahlcharakteristik: elliptischer Punkt, Punktgröße kann variiert werden Optische Leistung: 1mW (Laserklasse 2); Fokus einstellbar kompakte Bauform: 14x45mm; Achsabweichung: bis zu 3,0°, DC-Hohlstecker 2.5mm Für Anwendungen in z.B. Laserwasserwaagen, Lasermarkierungssystemen, der Robotertechnik, in Industrie, Handwerk, Hobby und dem Showbereich. Spannungsversorgung 3V. Zur Stromversorgung können Sie z.B. unser Picotronic Batteriepack LFBAT-AA03-CON2.5 oder das Netzteil Picotronic LFNT-3-C verwenden. Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm LFNT-3-CPicotronic Stromversorgung LFNT-3-C PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4055132006075 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 5,000 h Operating Temperature: 0°C - 50 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Dot Optical Power: 1 mW Laser Class: 2 Divergence: D - 0.5 mrad Size of Laserdot: adjustable Operating Distance: 10 m Optics: glass lens AR coated Laser technology: diode Focus: adjustable Electrical Parameters Potential of Housing: isolated Operating Voltage: 2.7 - 3.3, typ 3 V DC Operating Current: 30 - 90, typ 60 mA Connector: 2.5 mm DC plug (GND pole inner) Cable color positive: red Cable color GND: black Power Supply: LFNT-3-C Mechanical Parameters Size: Ø14x45 mm Material: aluminium Cable length: 100 mm Wire type: 26AWG, 0,14mm² Output Aperture: 5 mm Weight: 16 g Buy DD405-1-3(14x45)-CON on Amazon

Fokussierbarer Punktlaser, rot, 635nm, 1mW, Laser Klasse 2, Fokus einstellbar, 3V DC, 12x30.5mm, DC-Hohlstecker 2.5mm The type is a dot laser that projects a red laser dot. This type of laser module with its wavelength of 635nm has an enhanced visibility over a comparable laser with 650nm wavelength. The optical diode power of the laser module amounts to . Typical operation areas are low cost applications. This laser has a very compact design ( x ).Caused by laser classification , no TÜV-registration is necessary. The laser can be applied e.g. in discotheque events and it can be mounted in tools without any problems. (The laser protective measures are still to be considered.)The power consumption of is really low. Accordingly, two batteries can be used for operation and the laser module can be used mobile. Laser Class 2 Operating Voltage 3V DC Adjustable focus Compact size Low cost Abstrahlcharakteristik: elliptischer Punkt, Punktgröße veränderbar; Laser mit 635nm besitzen eine bessere Sichtbarkeit als z.B. Laser mit 650nm. Optische Leistung: 1mW (Laserklasse 2); Fokus einstellbar Kompakte Bauform: 12x30.5mm; Achsabweichung: bis zu 3,0°; DC-Hohlstecker 2.5mm Für Anwendungen in z.B. Laserwasserwaagen, Lasermarkierungssystemen, der Robotertechnik, in Industrie, Handwerk, Hobby und dem Showbereich. Spannungsversorgung 3V. Zur Stromversorgung können Sie z.B. unser Picotronic Netzteil LFNT-3-C verwenden. Accessesories MULTI-MOUNT-12(45x75)-MAGNETICMagnetic Mount for Lasermodul 12mm MULTI-MOUNT-12(45x75)Mount for Lasermodul 12mm Mount-12(20x57)Mount for Lasermodul 12mm BALLHEAD-MOUNT-12(25x70)Bracket for Lasermodule 12mm LFNT-3-CPicotronic Stromversorgung LFNT-3-C PICO-LPG-635-660certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development BALLHEAD-MOUNT-12-EP-70117875Bracket for Lasermodule 12mm KS-MOUNT-12(36X62)-MAGNETICMagnetic Mount for Lasermodul 12mm Main Data EAN: 4055132007775 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 3,000 h Operating Temperature: -20°C - 40 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Dot Optical Power: 1 mW Laser Class: 2 Divergence: H - 1.0 mrad Size of Laserdot: adjustable Operating Distance: 10 m Optics: acryl lense Laser technology: diode Focus: adjustable Electrical Parameters Potential of Housing: VDD(+) Operating Voltage: 2.7 - 3.3, typ 3 V DC Operating Current: 30 mA Connector: 2.5 mm DC socket (GND pole inner) Cable color positive: red Cable color GND: black Power Supply: LFNT-3-C Mechanical Parameters Size: Ø12x30.5 mm Material: Brass Cable length: 90 mm Wire type: 26AWG, 0,14mm² Output Aperture: 4 mm Weight: 18.6 g Connector Pin VDD: outer pole Connector Pin GND: inner pole

Line lasermodule, red, 650nm, 5mW, 90°, class 1, focus 1m, 3-12V DC, 9x20mm, Connector 2.5mm The type LFL650-5-12(9x20)90-CON is a laser that projects a red laser line. This laser module emits light of the wavelength 650nm. The diode laser module measures 9x20mm. The fan angle of 90° generates a laser line of 2m length at a working distance of 1m. The operating voltage is 3 to 12 volts. This positioning laser is an universal tool for industry, hobby and trade. It reduces the effort that has to be put into positioning and alignment tasks. This module is laser class 1. Beam characteristics: line, line thickness <1.2mm@1m Optical Power: 5mW (Laser class1); focus 1m Size: 9x20 mm; fan Angle: 90°; axis deviation up to 3 °; with Connector 2.5mm The fan angle of 90° creates a laser line of 2m in length at a distance of 1m. For use in, for example, laser spirit levels, laser marking systems, robot technology and the show area. Operating Voltage: 3-12V DC. For power supply, you can use our Picotronic LFNT-3 power pack. Accessesories MULTI-MOUNT-09(45x75)-MAGNETICMagnetic Mount for Lasermodul 12mm BALLHEAD-MOUNT-09(25x67)Bracket for Lasermodule 9mm MULTI-MOUNT-09(45x75)Mount for Lasermodul 9mm LFNT-3-CPicotronic Stromversorgung LFNT-3-C PICO-LPG-635-660certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development Main Data EAN: 4055132007089 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 3,000 h Operating Temperature: -20°C - 40 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Line Optical Power: 5 mW Laser Class: 1 Divergence: H - 1.0 mrad Fan Angle: 90 ° Line Thickness: <1.2mm@1m Operating Distance: 1 m Optics: acryl lense Laser technology: diode Focus: fixed (1000mm) Electrical Parameters Operating Voltage: 3 - 12 V DC Operating Current: 10 - 25, typ 15 mA Connector: 2.5 mm DC socket (GND pole inner) Cable color positive: red Cable color GND: black Power Supply: LFNT-3-C Mechanical Parameters Size: Ø9x20 mm Material: Brass Cable length: 100 mm Wire type: 26AWG, 0,14mm² Output Aperture: 6 mm Weight: 6 g Buy LFL650-5-12(9x20)90-CON on Amazon

Netzteil, Ausgang: 3V DC, mit DC-Stecker Ø2,5 mm (GND innen), Betriebsspannung: 100-240V AC Unser LFNT-3-C Steckernetzteil eignet sich für alle unsere 3V DC Lasermodule mit eingebautem Rundsteckverbinder. Der Verbindungsstecker des LFNT-3-C hat einen Durchmesser von 2,5mm. Der innere Pol des Steckers liegt auf GND, der äußere Pol des Verbindungssteckers auf +3V. Die Kabellänge beträgt 1,36m. Der 230V Anschluss passt in den meisten europäischen Ländern. Ausgangsspannung: 3V DC Anschlussstecker: DC-Stecker Ø2,5 mm (GND innen, + 3V außen) Kabellänge: 1,36m Betriebsspannung: 100-240V, 1000mA Eurostecker TYP C (CEE 7/16) Accessesories NF-S-419424-1-16APicotronic Stromversorgung NF-S-419424-1-16A Main Data EAN: 4260129041650 customs tarif number: 85044082 Technical Parameters Lifetime: > 50,000 h Operating Temperature: -30°C - 50 °C Storage Temperature: -50°C - 60 °C Electrical Parameters Operating Voltage: 100 - 240, typ 230 V AC Output Voltage: 3 V DC Operating Current: 1000 mA Connector: 2.5 mm DC plug (GND pole inner) Mechanical Parameters Size: 55x80x26.5 mm Material: Plastic Cable length: 1,360 mm Housing Color: black Weight: 86 g Matching articles LFL650-5-12(9X20)90-F250-CONLaserfuchs linelaser, red, 650nm, 90°, 3-12V DC, Ø9x20 mm, focus 250mm, class 1, DC-connector 2.5mmBuy LFNT-3-C on Amazon
