Bracket for Lasermodule 9mm
€72.90*
Available, delivery time: 1-2 days
Product information "Bracket for Lasermodule 9mm"
Ø9mm(25x67) Halterung-Ballhead für Lasermodule mit Durchmesser 9mm
Laser holder with a height of 67 mm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight
- Bracket for Lasermodule 9mm.
- 1/4 '' UNC internal thread in the base.
- Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden.
- Material: Aluminium; Farbe: Schwarz
Main Data
- EAN: 4260129042343
- Customs tariff number: 90139080000
Technical Parameters
- Operating Temperature: -20°C - 40 °C
- Storage Temperature: -50°C - 50 °C
Mechanical Parameters
- Material: aluminium
- Housing Color: black
- Weight: 84 g
Mount Parameters
- Total Height (h1): 67 mm
- Height to Laseraxis (h2): 61 mm
- Height of Base (h3): 34.5 mm
- Mount Diameter (d1): Ø 9 mm
- Diameter of Base (d2): Ø 25 mm
- Width of Mount (b): 18 mm
- Height of Mount (g): 16 mm
- Height of Mount Head (k): 32.5 mm
- Depth of Mount (t): 27 mm
- Angle of Rotation Alpha (α): 360 °
- Angle of Rotation Beta (β): ± 40 °
- Angle of Rotation Gamma (γ): ± 40 °
Matching articles

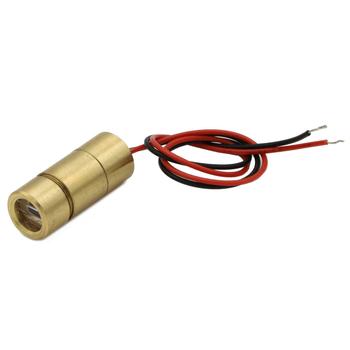

Linienlaser rot 635nm 60° 3V-5V DC fokussierbar 9x21mm
Line lasermodule, red, 635nm, 5mW, 60°, class 1, focus adjustable, 3-5V DC, 9x21mm
Line laser, red, 635 nm, 60 °, 5 mW, Ø9x21 mm, Laser Class 1, Focus adjustable, Cable length 1,000 mm, CON-USB-A
Line lasermodule, red, 635nm, 5mW, 60°, class 1, focus adjustable, 3-5V DC, 9x21mm, with USB-A connector
Laserfuchs linelaser, red, 650nm, 90°, 3-12V DC, Ø9x20 mm, focus 250mm, class 1, DC-connector 2.5mm
Line lasermodule, red, 650nm, 5mW, 90°, class 1, focus 0.25m, 3-12V DC, 9x20mm

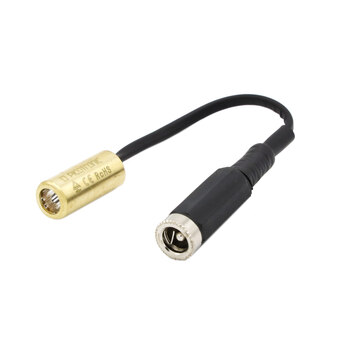

Laser Lasermodul Punktlaser rot 650nm 1mW 3-12VDC mit DC-Hohlstecker 2.1mm
