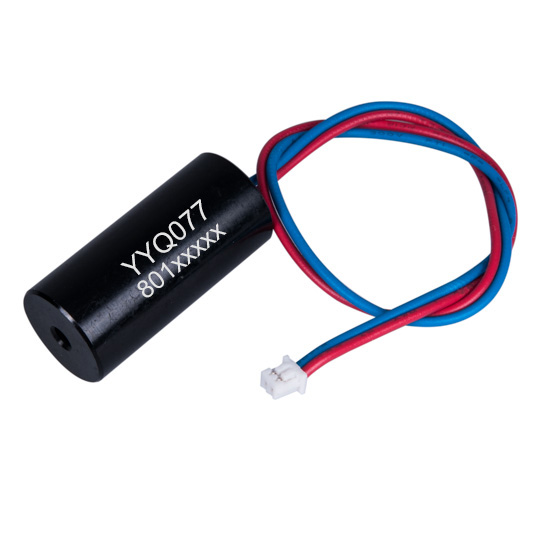

Dot laser, red, 655 nm, 0.38 mW, 4 V DC, Ø14x30 mm, Laser Class 2, Focus collimated, Cable length 1…
€42.03*
Available, delivery time: 1-2 days
Product information "Dot laser, red, 655 nm, 0.38 mW, 4 V DC, Ø14x30 mm, Laser Class 2, Focus collimated, Cable length 1…"
isolated Dot lasermodule, red, 650nm, 0.43mW, 4V DC, 14x30mm, class 2
- Operating Voltage 4 V DC
- Laser Class 2
- Image processing
- Glas lenses anti reflex coated
- Uniform illumination
Accessesories
Magnetic Mount for Lasermodul 14mm
14mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 14mm
Magnetic Mount for Lasermodul 14mm
Ø14mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 14mm
Mount for Lasermodul 14mm
Ø14mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 14mm
Bracket for Lasermodule 14mm
Ø14mm(25x72) Halterung-Ballhead für Lasermodule mit Durchmesser 14mm
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development
Main Data
- EAN: 4055132034030
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 50,000 h
- Operating Temperature: -10°C - 50 °C
- Storage Temperature: -40°C - 60 °C
Optical Parameters
- Beam Shape: Dot
- Optical Power: 0.38 mW
- Laser Class: 2
- Divergence: D - 0.5 mrad
- Beam Diameter: 3 mm
- Operating Distance: 10 m
- Optics: glass lens AR coated
- Laser technology: Single Mode Diode
- Opt. Power Stability at const. Temp.: < 1 %
- Stability: <8% @ -10 - 50°C
- Focus: collimated
- Pointing Stability: < 0.2 °
Electrical Parameters
- Rise Time: < 100 ms
- Potential of Housing: isolated
- Operating Voltage: 3.5 - 4.5, typ 4 V DC
- Operating Current: 10 mA
- Cable color positive: red
- Cable color ground: blue
Mechanical Parameters
- Size: Ø14x30 mm
- Material: aluminium
- Cable length: 150 mm
- Wire type: Belden, Typ 1095, 28AWG
- Output Aperture: 3 mm
- Housing Color: black
- Weight: 11.3 g
- Connector Pin VDD: 1
- Connector Pin GND: 2
