Line laser, blue, 405 nm, 30 °, 16 mW, 3 V DC, Ø14x55 mm, Laser Class 2M, Focus adjustable, Cable l…
€379.90*
Available in 75 days, delivery time 1-2 days
Line lasermodule, blue, 405nm, 16mW, 30°, class 2M, focus adjustable, 3V DC, 14x55mm

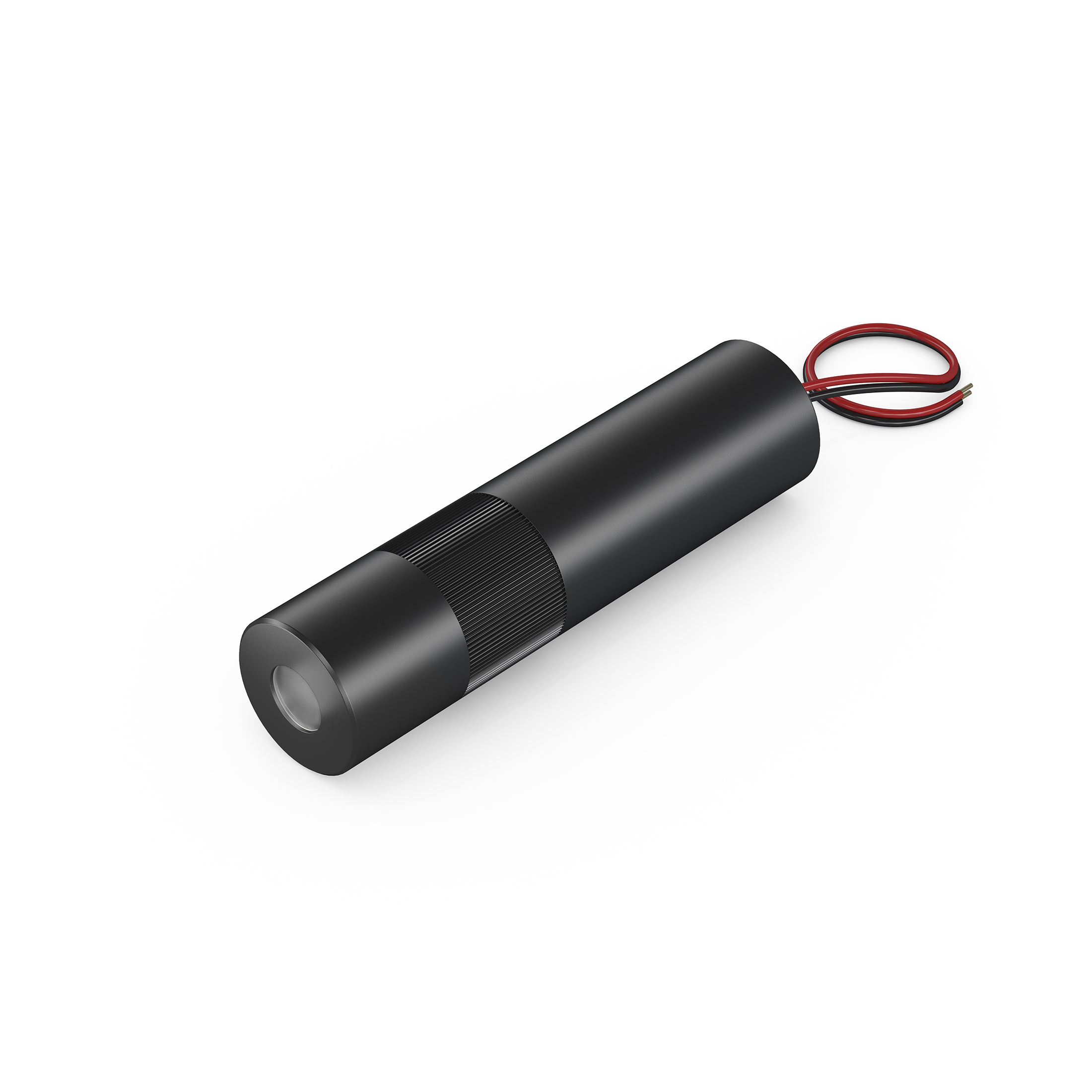

The type LC405-16-3-F(14x55)30 is a laser that projects a blue laser line. This laser module emits light of the wavelength 405nm. This diode laser module measures 14x55mm. The fan angle of 30° generates a laser line of 0,5m length at a working distance of 1m. The operating voltage is 3 volts. This positioning laser is an universal tool for industry, hobby and trade. It reduces the effort that has to be put into positioning and alignment tasks. This module is laser class 2M.
- Beam characteristics: line, line thickness adjustable
- Optical Power: 16mW (Laser class2M); focus adjustable
- Size: 14x55 mm; fan Angle: 30°; axis deviation up to 3°

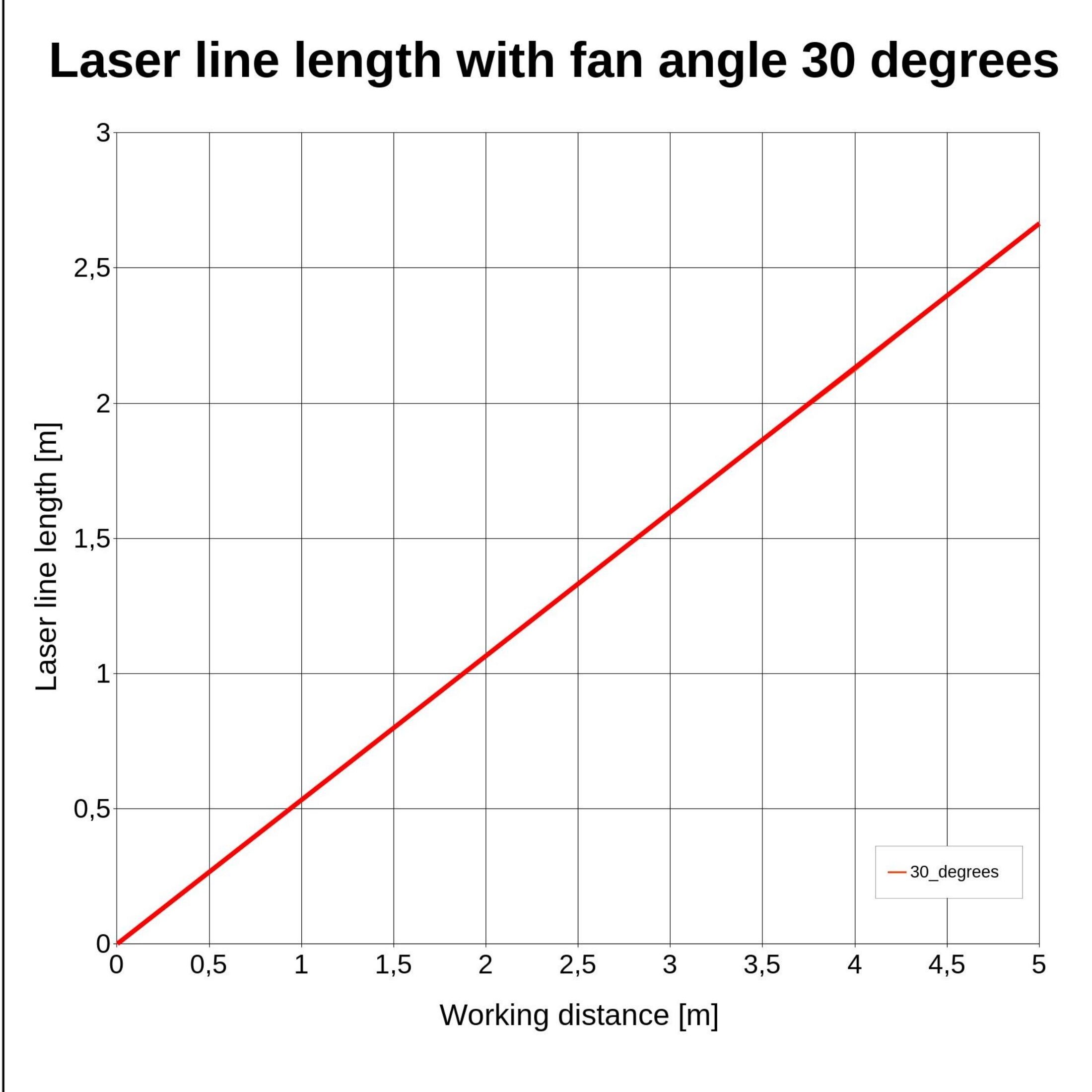

- The fan angle of 30° creates a laser line of 0,5m in length at a distance of 1m.
- For use in, for example, laser spirit levels, laser marking systems, robot technology and the show area. Operating Voltage: 3V DC. For power supply, you can use our Picotronic 3V battery pack or the Picotronic LFNT-3 power pack.
Accessesories
MULTI-MOUNT-14(45x75)-MAGNETIC
Magnetic Mount for Lasermodul 14mm
BALLHEAD-MOUNT-14(25x72)
Bracket for Lasermodule 14mm
MULTI-MOUNT-14(45x75)
Mount for Lasermodul 14mm
LFNT-3
Power supply 3V DC (1200mA)
PICO-LPG-405-532
certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications
Main Data
- EAN: 4055132000424
- Warranty: 1 years
- customs tarif number: 90132000000
Technical Parameters
- Lifetime: > 5,000 h
- Operating Temperature: -10°C - 50 °C
- Storage Temperature: -40°C - 70 °C
Optical Parameters
- Beam Shape: Line
- Optical Power: 16 mW
- Laser Class: 2M
- Divergence: C - 0.4 mrad
- Fan Angle: 30 °
- Line Thickness: adjustable
- Operating Distance: 5 m
- Optics: glass lens AR coated
- Laser technology: Single Mode Diode
- Focus: adjustable
Electrical Parameters
- Potential of Housing: isolated
- Operating Voltage: 2.7 - 3.3, typ 3 V DC
- Operating Current: 100 - 210, typ 150 mA
- Cable color positive: red
- Cable color GND: black
- Power Supply: LFNT-3
Mechanical Parameters

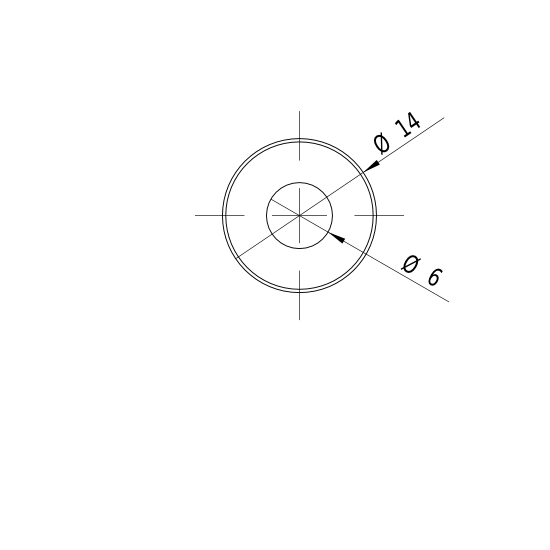

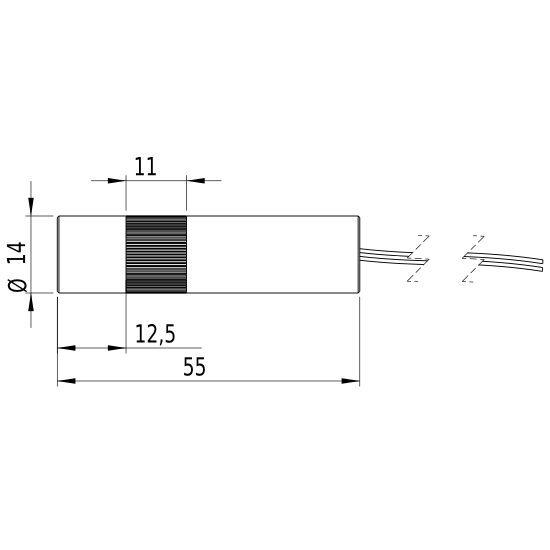

- Size: Ø14x55 mm
- Material: aluminium
- Cable length: 100 mm
- Wire type: 26AWG, 0,14mm²
- Output Aperture: 4 mm
- Housing Color: black
- Weight: 20 g
- Stripping of wire: 5 mm
