certified Laser Safety Eyewear PICO-LPG-660 according to DIN EN 207, suitable for ultraviolet wavel…

Product information "certified Laser Safety Eyewear PICO-LPG-660 according to DIN EN 207, suitable for ultraviolet wavel…"

Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. The laser safety goggles certified to the valid standard DIN EN 207 (full protection) comply with the legal regulations and protect the eyes against dangerous laser radiation. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam. ● Wavelength: 180-315nm, lb rating D LB6 + R LB4 ● Wavelength: >315-400nm, lb rating DR LB4 ● Wavelength: >615-660nm, lb rating DIR LB3 ● Wavelength: >660-665nm, lb rating DIR LB4 ● Wavelength: >665-715nm, lb rating D LB4 + IR LB5 ● Wavelength: 694nm, lb rating IR LB7 Especially suitable for: Laser UV 180nm and RED 660nm

For laserwelding, lasercutting, lasermarking, laserengraving, research and development and cosmetic applications (Please note the wavelengthrange!)

  • Complete protection
  • Comfortable fit over glasses or alone
  • Adjustable temples and Side-shields for wide field of view
  • CE Certified EN 207
  • With Picotronic Logo imprint
  • Vollschutz, CE-zertifiziert
  • universelle, bequeme Passform über Brille o. allein, verstellbare Brillenbügel, Seitenschutz für breites Sichtfeld
  • ● Wellenlänge: 180-315nm, Schutzstufen D LB6 + R LB4 ● Wellenlänge: >315-400nm, Schutzstufe DR LB4 ● Wellenlänge: >615-660nm, Schutzstufe DIR LB3
  • ● Wellenlänge: >660-665nm, Schutzstufe DIR LB4 ● Wellenlänge: >665-715nm, Schutzstufen D LB4 + IR LB5 ● Wellenlänge: 694nm, Schutzstufe IR LB7
  • Besonders geeignet für: Laser ULTRAVIOLETT 180nm und ROT 660nm

Main Data

  • EAN: 4055132003364
  • Warranty: 1 years
  • Customs tariff number: 90049010000

Technical Parameters

  • Operating Temperature: -50°C - 85 °C
  • Storage Temperature: -50°C - 80 °C

Optical Parameters

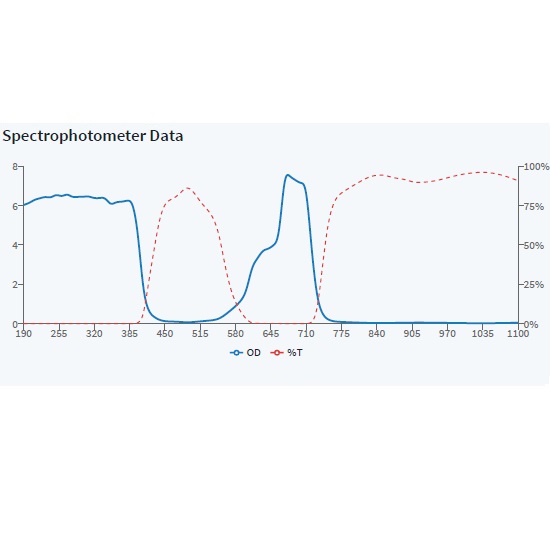

  • LB Rating: 180-315 D LB6 + R LB4, >315-400 DR LB4, >615-660 DIR LB3, >660-665 DIR LB4, >665-715 D LB4 + IR LB5, 694 IR LB7
  • Lens Color: Blaugrün

Mechanical Parameters

  • Size: 145x144x50 mm
  • Material: Polymer
  • Housing Color: black
  • Weight: 10 g

Product Safety Information

Manufacturer

Picotronic GmbH
Rudolf-Diesel-Str.2a
56070 Koblenz
Deutschland
info@picotronic.de

Responsible Economic Operator

Picotronic GmbH
Rudolf-Diesel-Str.2a
56070 Koblenz
Deutschland
info@picotronic.de
