Dot laser, green, 520 nm, 1 mW, Ø19x86 mm, Laser Class 2, Focus fixed (5.0m)

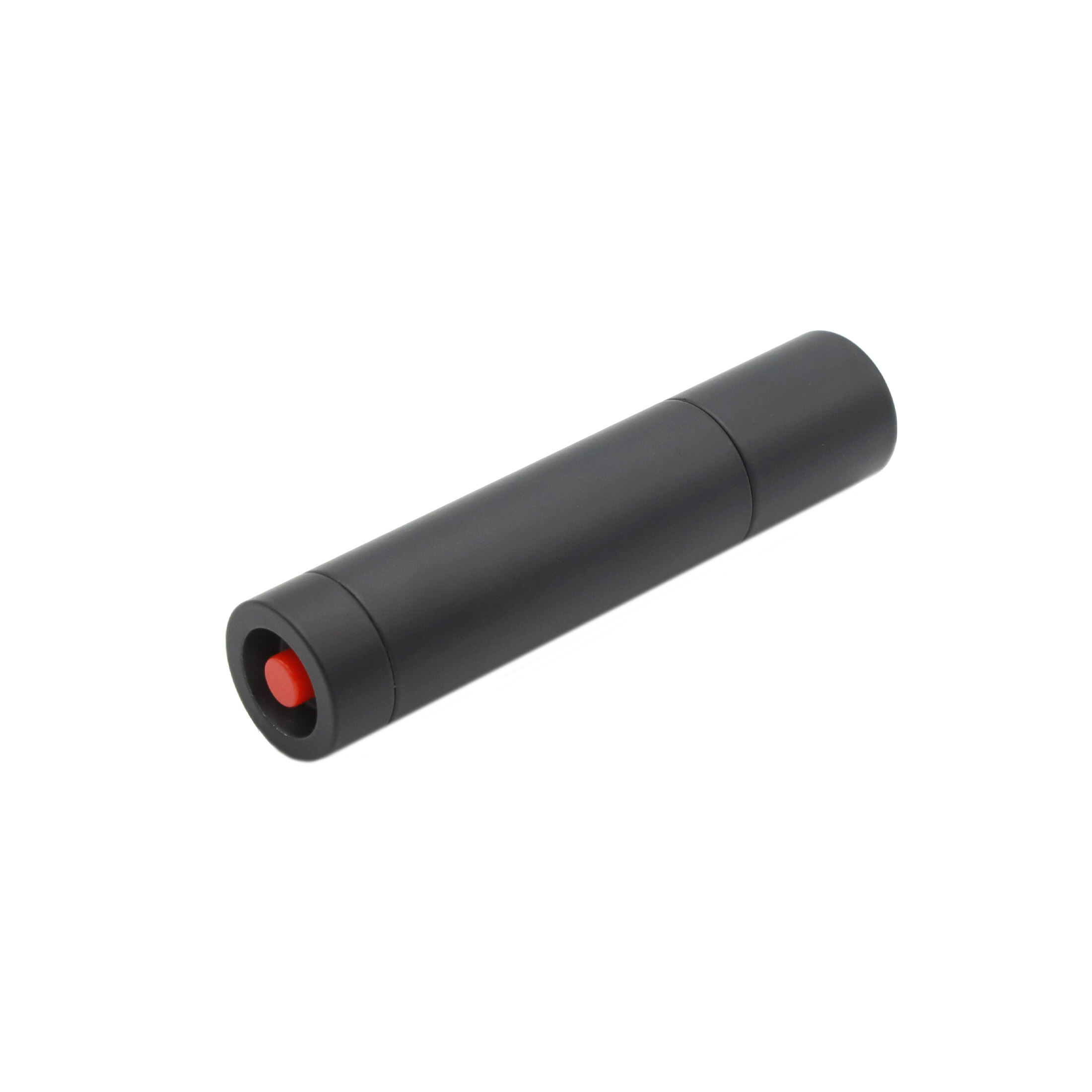

Punktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3-4,5V DC, 15x67mm, Batteriebetrieb The type LFD650-1-4.5(15x68) is a dot laser that projects a red laser dot. The laser module emits light of the wavelength of 650nm. The module contains two button cells that are included. Therefore, wireless operation is possible over several hours. This diode laser module measures 15mm x 68mm. Accordingly, it is a small and effective laser source. Therefore, the module can be used in different applications and also in room light. The optimal operation range of the laser is 10m. This positioning laser is an universal tool for hobby and trade. It reduces the effort that has to be put into positioning and alignment tasks. Typical operation areas are low cost applications. This module is laser class 2. Please note: Caused by the product design deviations between optical axis and mechincal axis are possible. This laser is optimized for room light and projects a bright red laser dot. The visibility can be reduced by bright ambient light or sunlight. Compact size Laser Class 2 Low cost Low power consumption With battery Beam characteristics: elliptical point, point size <4..6mm Axis deviation approx. 1.5 ° to 3 ° Latching switch: Press the switch at the end of the laser module once and the laser is switched on permanently. Pressing it again switches the laser off again. 2 LR44 button cells are included For presentations, positioning or for your cat delivery content Im Lieferumfang sind zwei Batterien vom Typ LR44 enthalten. Accessesories MULTI-MOUNT-15(45x75)-MAGNETICMagnetic Mount for Lasermodul 15mm MULTI-MOUNT-15(45x75)Mount for Lasermodul 15mm PICO-LPG-635-660certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development Main Data EAN: 4260129041100 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 3,000 h Operating Temperature: -20°C - 40 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Dot Optical Power: 1 mW Laser Class: 2 Divergence: H - 1.0 mrad Beam Diameter: 3 mm Size of Laserdot: <4..6mm@5m Operating Distance: 10 m Optics: acryl lense Laser technology: diode Focus: collimated Electrical Parameters Potential of Housing: VDD(+) Operating Voltage: 3 - 4.5 V DC Operating Current: 10 - 30, typ 20 mA Mechanical Parameters Size: Ø15x67 mm Material: aluminium Output Aperture: 3 mm Housing Color: black Weight: 27 g Shop+Web delivery content: Im Lieferumfang sind zwei Batterien vom Typ LR44 enthalten. Buy LFD650-1-4.5(15x67) on Amazon

Punktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus 1m, 3-4,5V, 15x67mm, Achparallel, Batteriebetrieb The type is a dot laser that projects a laser dot. The laser module emits light of the wavelength . The module contains two button cells that are included. Therefore, wireless operation is possible over several hours. This diode laser module measures x . Accordingly, it is a small and effective laser source. Therefore, the module can be used in different applications and also in room light. The optimal operation range of the laser is . This positioning laser is an universal tool for industry, hobby and trade. It reduces the effort that has to be put into positioning and alignment tasks. Typical operation areas are low cost applications. This module is laser class . Compact size Laser Class 2 Low cost Low power consumption With battery Rastender Schalter: Einmal den Schalter am Ende des Lasermoduls drücken und der Laser ist dauerhaft eingeschaltet. Erneutes Betätigen schaltet den Laser wieder aus. Abstrahlcharakteristik: elliptischer Punkt, Punktgröße <4..6mm@1m Rastender Schalter an der Rückseite des GehäusesOptische Leistung: 1mW (Laserklasse 2); Fokus: kollimiert Kompakte Bauform: 15x67mm; Achsabweichung <1° Für Präsentationen, zur Positionierung von Gegenständen und Anwendungen in Industrie, Handwerk, Hobby oder Showbereich. Im Lieferumfang sind zwei Knopfzellen LR44 enthalten. delivery content Im Lieferumfang sind zwei Batterien vom Typ LR44 enthalten. Accessesories MULTI-MOUNT-15(45x75)-MAGNETICMagnetic Mount for Lasermodul 15mm MULTI-MOUNT-15(45x75)Mount for Lasermodul 15mm PICO-LPG-635-660certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development MOUNT-BASE-PLATE-01Picotronic Bracket MOUNT-BASE-PLATE-01 Main Data EAN: 4055132005603 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 3,000 h Operating Temperature: -20°C - 40 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Dot Optical Power: 1 mW Laser Class: 2 Divergence: H - 1.0 mrad Beam Diameter: 3 mm Size of Laserdot: <4..6mm@5m Operating Distance: 10 m Optics: acryl lense Laser technology: diode Focus: collimated Electrical Parameters Potential of Housing: VDD(+) Operating Voltage: 3 - 4.5 V DC Operating Current: 10 - 30, typ 20 mA Mechanical Parameters Size: Ø15x67 mm Material: aluminium Output Aperture: 3 mm Housing Color: black Weight: 27 g Shop+Web delivery content: Im Lieferumfang sind zwei Batterien vom Typ LR44 enthalten. Buy LFD650-1-4.5(15x67)-AP on Amazon

Punktlaser, rot, 650nm, 0,4mW, Laser Klasse 1, Fokus 5m, 3-4,5V, 15x67mm, Batteriebetrieb The type LFD650-0.4-4.5(15x68) is a dot laser that projects a red laser dot. The laser module emits light of the wavelength 650nm. The module contains two button cells that are included. Therefore, wireless operation is possible over several hours. This laser has a very compact design (15x68mm). The optimal operation range of the laser is 5m. The laser module LFD650-0.4-4.5(15x68) has fixed optics and can be used in light barriers, grade and slope control, or pointer applications. This positioning laser is an universal tool for industry, hobby and trade. Typical operation areas are low cost applications. This module is laser class 1. Operating Voltage Laser Class 1 Compact size Low cost Fixed focus Beam characteristics: elliptical point, point size <4..6mm Axis deviation approx. 1.5 ° to 3 ° Latching switch: Press the switch at the end of the laser module once and the laser is switched on permanently. Pressing it again switches the laser off again. 2x LR44 button cells are included For presentations, positioning delivery content Im Lieferumfang sind zwei Batterien vom Typ LR44 enthalten. Accessesories MULTI-MOUNT-15(45x75)-MAGNETICMagnetic Mount for Lasermodul 15mm MULTI-MOUNT-15(45x75)Mount for Lasermodul 15mm PICO-LPG-635-660certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development Main Data EAN: 4260129042602 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 3,000 h Operating Temperature: -20°C - 40 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Dot Optical Power: 0.4 mW Laser Class: 1 Divergence: H - 1.0 mrad Beam Diameter: 3 mm Size of Laserdot: <4..6mm@5m Operating Distance: 5 m Optics: acryl lense Laser technology: diode Focus: fixed (5.0m) Electrical Parameters Potential of Housing: VDD(+) Operating Voltage: 3 - 4.5 V DC Operating Current: 10 - 25, typ 15 mA Mechanical Parameters Size: Ø15x67 mm Material: aluminium Output Aperture: 3 mm Housing Color: black Weight: 27 g Shop+Web delivery content: Im Lieferumfang sind zwei Batterien vom Typ LR44 enthalten. Buy LFD650-0.4-4.5(15x67) on Amazon

Kreuzlaser, rot, 650nm, 5mW, 45°, Laser Klasse 1, Fokus 1m, 3-4,5V DC, 15x67mm, Batteriebetrieb The type LFC650-5-4.5(15x68)45 is a laser that projects a red laser cross. The focus is optimized for a operation range of 1 meter. The diode has a power of 5mW. Therefore, the module can be used in different applications and also in room light. Using a special optics the laser module produces a sharp cross without using rotating polygon mirrors or motors. This diode laser module is distinguished by its high efficiency and its high lifetime of more than 3000h. This diode laser module measures 15 x 68mm. Accordingly, it is a small and effective laser source. The module contains two button cells that are included. Therefore, wireless operation is possible over several hours. The module is tested in Germany and it is issued with the DIN EN 60825-1:2015-07 certificate. This cross laser can be applied e.g. in leveling, positioning, and marking systems. Additionally it can be used for positioning tasks. The built-in protective lens enables the module to be operated under dusty and harsh industrial environments. Please note: Caused by the product design deviations between optical axis and mechincal axis are possible. This laser is optimized for room light and projects a bright red laser dot. The visibility can be reduced by bright ambient light or sunlight. With battery Laser Class 1 Compact size Operating Voltage 3 V DC Low cost Bright and easy-to-see laser cross for displaying line of sight Laser Class 1: 100% safe handling, safe to use - you can use it without hesitation and without legal requirements. High-quality laser module in a robust metal housing. Compact design incl. 2x LR44 Uniform line width, ideal for positioning and aligning as a tool for hobbyists, craftsmen, construction sites The built-in protective lens allows use of the laser module even in dusty environments and under harsh industrial conditions. delivery content Im Lieferumfang sind zwei Batterien vom Typ LR44 enthalten. Accessesories MULTI-MOUNT-15(45x75)-MAGNETICMagnetic Mount for Lasermodul 15mm MULTI-MOUNT-15(45x75)Mount for Lasermodul 15mm PICO-LPG-635-660certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development Main Data EAN: 4260129041957 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 3,000 h Operating Temperature: -20°C - 40 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Cross Optical Power: 5 mW Laser Class: 1 Divergence: H - 1.0 mrad Fan Angle: 45 ° Line Thickness: <1.2mm@1m Operating Distance: 1 m Optics: acryl lense Laser technology: diode Focus: fixed (1000mm) Verticality: < ± 1 ° Electrical Parameters Potential of Housing: VDD(+) Operating Voltage: 2.7 - 4.5, typ 3 V DC Operating Current: 10 - 30, typ 20 mA Mechanical Parameters Size: Ø15x67 mm Material: aluminium Output Aperture: 6 mm Housing Color: black Weight: 25 g Shop+Web delivery content: Im Lieferumfang sind zwei Batterien vom Typ LR44 enthalten.

Fokussierbarer Punktlaser, blau, 405nm, 1mW, Laser Klasse 2, Fokus einstellbar, 3V DC, 14x45mm Bei dem Typ DD405-1-3(14x45) handelt es sich um einen Punktlaser zur Projektion eines blauen Laserpunktes. Das Lasermodul emittiert Strahlung der Wellenlänge 405nm. Die Lebensdauer des Lasermoduls ist größer als 5000h. Der Laser verfügt über eine kompakte Bauform (14x45mm). Durch den einstellbaren Fokus, kann die erzeugte Punktgröße eingestellt werden. Dieser Punktlaser findet Anwendung in z.B. der Bauteilpositionierung, Nivelliergeräten, Lasermarkierungssystemen, in Industrie, Handwerk, Hobby und dem Showbereich. Das Lasermodul fällt in die Laserklasse 2. Blue Lasermodule Operating Voltage 3 V DC Glas lenses anti reflex coated Laser Class 2 Adjustable focus Abstrahlcharakteristik: elliptischer Punkt, Punktgröße kann variiert werden Optische Leistung: 1mW (Laserklasse 2); Fokus einstellbar kompakte Bauform: 14x45mm; Achsabweichung: bis zu 3,0° Für Anwendungen in z.B. Laserwasserwaagen, Lasermarkierungssystemen, der Robotertechnik, in Industrie, Handwerk, Hobby und dem Showbereich. Spannungsversorgung 3V. Zur Stromversorgung können Sie z.B. unser Picotronic Batteriepack 3V oder das Netzteil Picotronic LFNT-3 verwenden. Accessesories MULTI-MOUNT-14(45x75)-MAGNETICMagnetic Mount for Lasermodul 14mm MULTI-MOUNT-14(45x75)Mount for Lasermodul 14mm BALLHEAD-MOUNT-14(25x72)Bracket for Lasermodule 14mm LFNT-3Power supply 3V DC (1200mA) PICO-LPG-405-532certified Laser Safety Eyewear PICO-LPG-405-532 according to DIN EN 207, suitable for blue and green wavelengths >400 - 532 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications Main Data EAN: 4260129042114 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 5,000 h Operating Temperature: 0°C - 50 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Dot Optical Power: 1 mW Laser Class: 2 Divergence: D - 0.5 mrad Size of Laserdot: adjustable Operating Distance: 10 m Optics: glass lens AR coated Laser technology: diode Focus: adjustable Electrical Parameters Potential of Housing: isolated Operating Voltage: 2.7 - 3.3, typ 3 V DC Operating Current: 30 - 90, typ 60 mA Cable color positive: red Cable color GND: black Power Supply: LFNT-3 Mechanical Parameters Size: Ø14x45 mm Material: aluminium Cable length: 100 mm Wire type: 26AWG, 0,14mm² Output Aperture: 5 mm Weight: 16 g Buy DD405-1-3(14x45) on Amazon

Fokussierbarer Punktlaser, rot, 635nm, 1mW, Laser Klasse 2, Fokus einstellbar, 3V DC, 12x30.5mm The type is a dot laser that projects a red laser dot. This type of laser module with its wavelength of 635nm has an enhanced visibility over a comparable laser with 650nm wavelength. The optical diode power of the laser module amounts to . Typical operation areas are low cost applications. This laser has a very compact design ( x ).Caused by laser classification , no TÜV-registration is necessary. The laser can be applied e.g. in discotheque events and it can be mounted in tools without any problems. (The laser protective measures are still to be considered.)The power consumption of is really low. Accordingly, two batteries can be used for operation and the laser module can be used mobile. Laser Class 2 Operating Voltage 3V DC Adjustable focus Compact size Low cost Abstrahlcharakteristik: elliptischer Punkt, Punktgröße veränderbar; Laser mit 635nm besitzen eine bessere Sichtbarkeit als z.B. Laser mit 650nm. Optische Leistung: 1mW (Laserklasse 2); Fokus einstellbar Kompakte Bauform: 12x30.5mm; Achsabweichung: bis zu 3,0° Für Anwendungen in z.B. Laserwasserwaagen, Lasermarkierungssystemen, der Robotertechnik, in Industrie, Handwerk, Hobby und dem Showbereich. Spannungsversorgung 3V. Zur Stromversorgung können Sie z.B. unser Picotronic Batteriepack 3V oder das Netzteil Picotronic LFNT-3 verwenden. Accessesories MULTI-MOUNT-12(45x75)-MAGNETICMagnetic Mount for Lasermodul 12mm MULTI-MOUNT-12(45x75)Mount for Lasermodul 12mm Mount-12(20x57)Mount for Lasermodul 12mm BALLHEAD-MOUNT-12(25x70)Bracket for Lasermodule 12mm PICO-LPG-635-660certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development BALLHEAD-MOUNT-12-EP-70117875Bracket for Lasermodule 12mm KS-MOUNT-12(36X62)-MAGNETICMagnetic Mount for Lasermodul 12mm Main Data EAN: 4260129041216 Warranty: 1 years customs tarif number: 90132000000 Technical Parameters Lifetime: > 3,000 h Operating Temperature: -20°C - 40 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Dot Optical Power: 1 mW Laser Class: 2 Divergence: H - 1.0 mrad Size of Laserdot: adjustable Operating Distance: 10 m Optics: acryl lense Laser technology: diode Focus: adjustable Electrical Parameters Potential of Housing: VDD(+) Operating Voltage: 2.7 - 3.3, typ 3 V DC Operating Current: 30 mA Cable color positive: red Cable color GND: black Mechanical Parameters Size: Ø12x30.5 mm Material: Brass Cable length: 90 mm Wire type: 26AWG, 0,14mm² Output Aperture: 4 mm Weight: 18.6 g
