Laserschutzbrille PICO-LPG-10600-38, geeigneter Wellenlängenbereich IR 10600 nm, bequeme Passform ü…

Product information "Laserschutzbrille PICO-LPG-10600-38, geeigneter Wellenlängenbereich IR 10600 nm, bequeme Passform ü…"

Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam. ● Wavelength: 190-360nm, OD rating 7+ ● Wavelength: 10600nm, OD rating 7+

Especially suitable for: Laser IR 10600nm

For laserwelding, lasercutting, lasermarking, laserengraving, research and development or cosmetic applications (Please note the wavelengthrange!)

  • Complete protection
  • Comfortable fit over glasses or alone
  • Adjustable
  • With Picotronic Logo imprint
  • Vollschutz
  • universelle Passform, bequeme Passform über Brille o. allein, verstellbares Brillenband
  • Wellenlänge: 190-360nm, Schutzstufe OD 7+; Wellenlänge: 10600nm, Schutzstufen OD 7+
  • Besonders geeignet für: Laser IR 10600nm

Main Data

  • EAN: 4055132018528
  • Customs tariff number: 90049010000

Technical Parameters

  • Operating Temperature: -50°C - 85 °C
  • Storage Temperature: -50°C - 80 °C

Optical Parameters

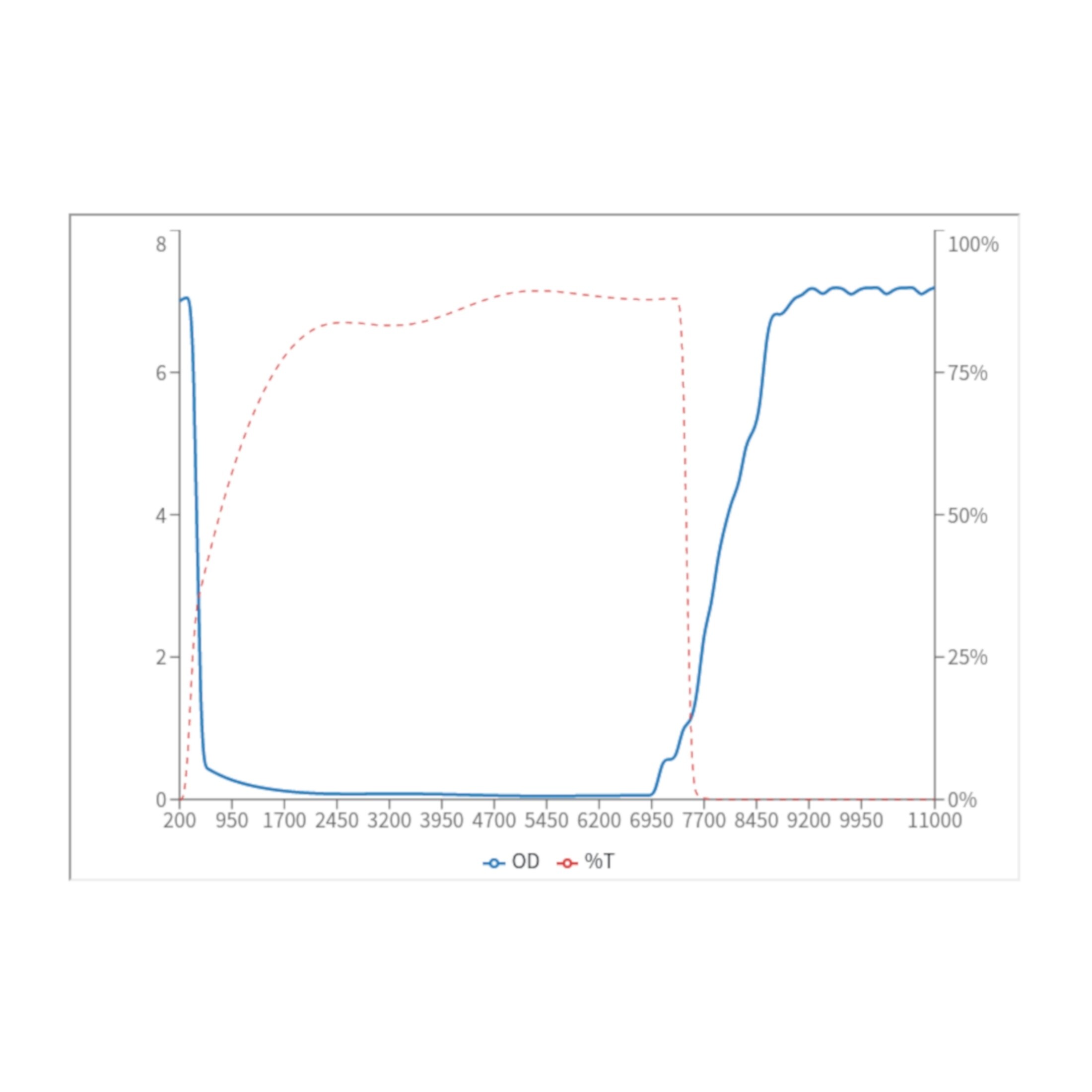

  • LB Rating: 190-360 OD 7+ 10600 OD 7+
  • Lens Color: Clear

Mechanical Parameters

  • Material: Polymer
  • Housing Color: black
  • Weight: 10 g

Product Safety Information

Manufacturer

Picotronic GmbH
Rudolf-Diesel-Str.2a
56070 Koblenz
Deutschland
info@picotronic.de

Responsible Economic Operator

Picotronic GmbH
Rudolf-Diesel-Str.2a
56070 Koblenz
Deutschland
info@picotronic.de
