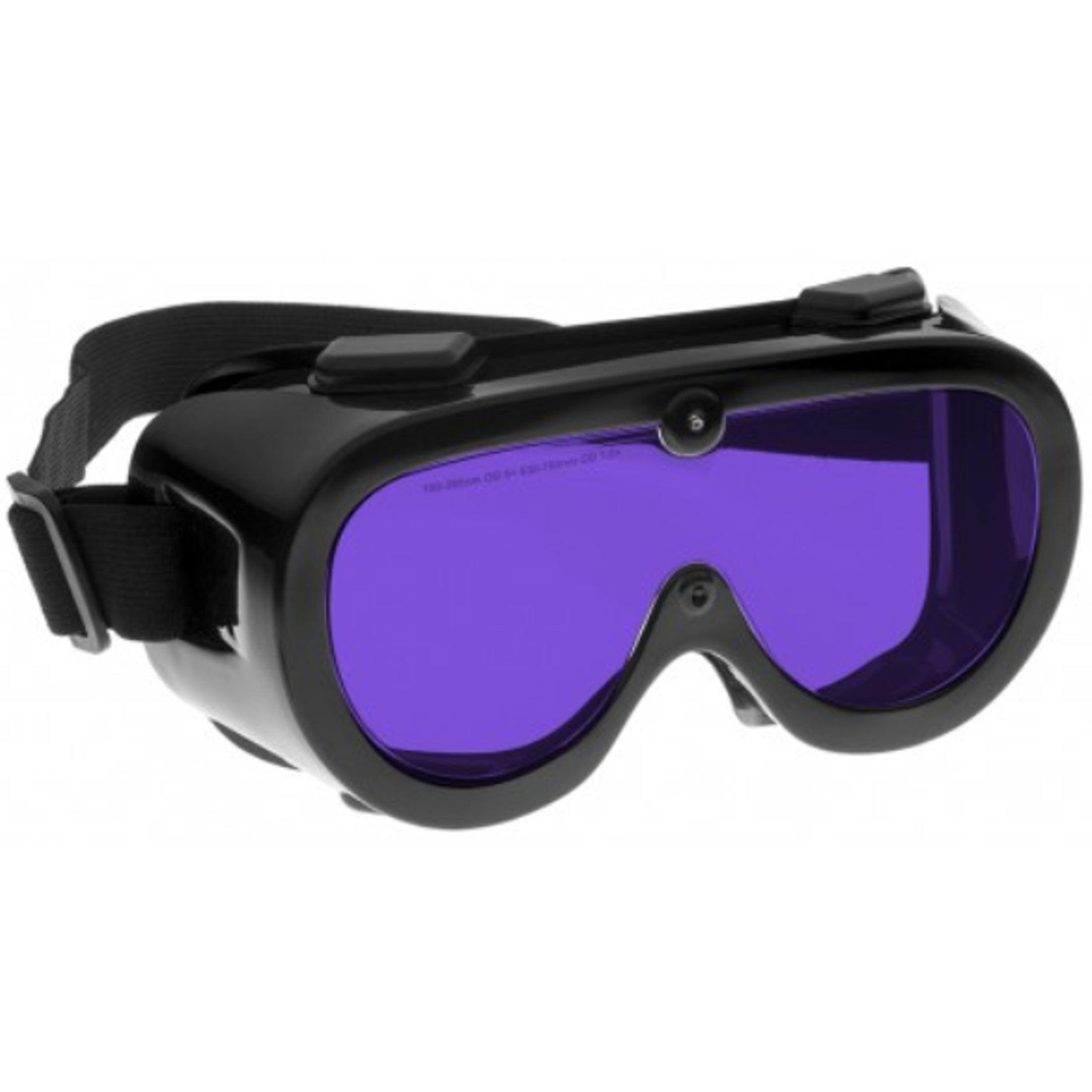

Certified laser safety goggles PICO-LPG-575-600 according to DIN EN 207, suitable wavelength range 575 - 600 nm, comfortable fit over glasses or alone

When working with laser systems of laser class 3R and higher, severe damage to the human eye can occur. The human eye can be permanently damaged by direct or indirect laser exposure. Injuries on the retina mostly occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to appropriately protect the eyes using suitable laser safety goggles. Laser safety goggles certified according to the valid standard DIN EN 207 (full protection) meet legal requirements and safely protect the eyes from dangerous laser radiation. Laser safety glasses and the filters contained within are designed to absorb the specific energy of the laser. Therefore, the optimal protective glasses must be explicitly selected for the required wavelength range, radiation peak value, and the required optical density. Naturally, daylight transmission, the field of vision, and the wearing comfort of the frame also play a crucial role. The frame of the laser safety glasses prevents lateral entry of laser beams.

Wavelength: 180-315nm, Protection levels D LB6 + R LB4
Wavelength: >315-395nm, Protection level DR LB4
Wavelength: >575-600, Protection level DI LB4
Wavelength: >582-598, Protection level I LB6
Wavelength: >585-595, Protection level I LB7,
Particularly suitable for: Laser Orange 595nm

Suitable for cosmetic or medical applications (Please note the wavelength range!)

• Complete protection
• Comfortable fit over glasses or alone
• Adjustable temples and side-shields for wide field of view
• CE Certified EN 207
• With Picotronic Logo imprint
• Full protection
• Universal fit, comfortable fit over glasses or alone, adjustable goggle strap
• CE certified
• Wavelength: 180-315nm, Protection levels D LB6 + R LB4 Wavelength: >315-395nm, Protection level DR LB4 Wavelength: >575-600, Protection level DI LB4 Wavelength: >582-598, Protection level I LB6 Wavelength: >585-595, Protection level I LB7,
• Particularly suitable for: Laser Orange 595nm

Delivery Content

• Glasses cleaning cloth
• Glasses strap
• Flexible glasses case
• Instructions

Main Data

• EAN: 4055132018641
• Customs tariff number: 90049010000

Technical Parameters

• Operating Temperature: -50°C - 85 °C
• Storage Temperature: -50°C - 80 °C

Optical Parameters

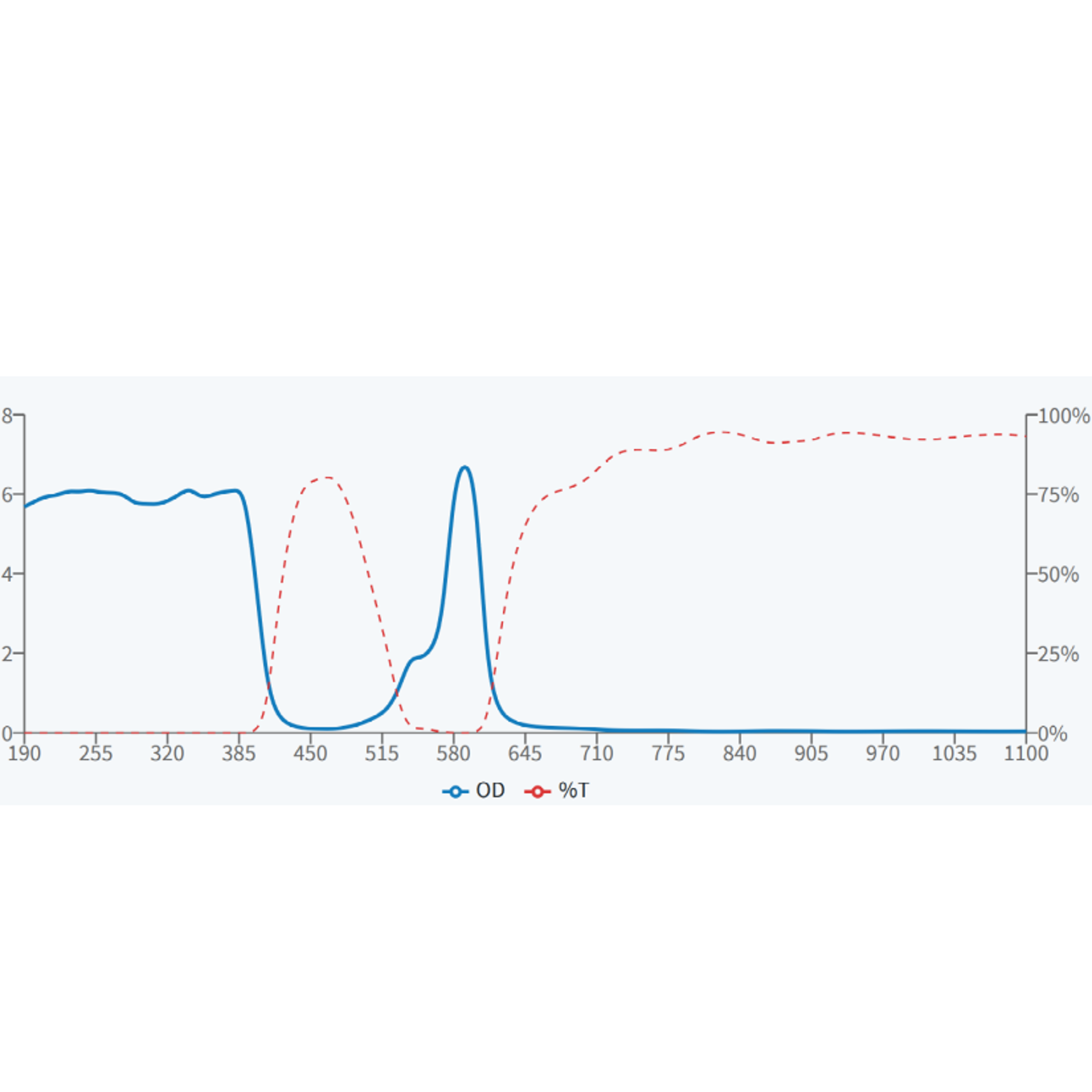

• LB Rating: 180-315 D LB6 + R LB4
  315-395 DR LB4;
  575-600 DI LB4;
  582-598 I LB6;
  585-595 I LB7;
• Lens Color: Lilac
• fields of application: Dermatology, Aesthetic Medicine, Ophthalmology

Mechanical Parameters

• Size: 145x144x50 mm
• Material: Polymer
• Housing Color: black
• Weight: 10 g

Shop+Web

• Delivery Content: - Glasses cleaning cloth

• Glasses strap
• Flexible glasses case
• Instructions

Holosun

• BKA exception: no

Accessesories

Sticker "Hazards due to optical radiation" DIN7010, rectangular, sidelength 15 cm
Wall holder, storage box for safety goggles, transparent (laser safety googles)
Sticker mandatory sign "Wear protective glasses" BGV A8, round Ø 14cm (eye protection, laser radiation)
Laser warning sticker set
