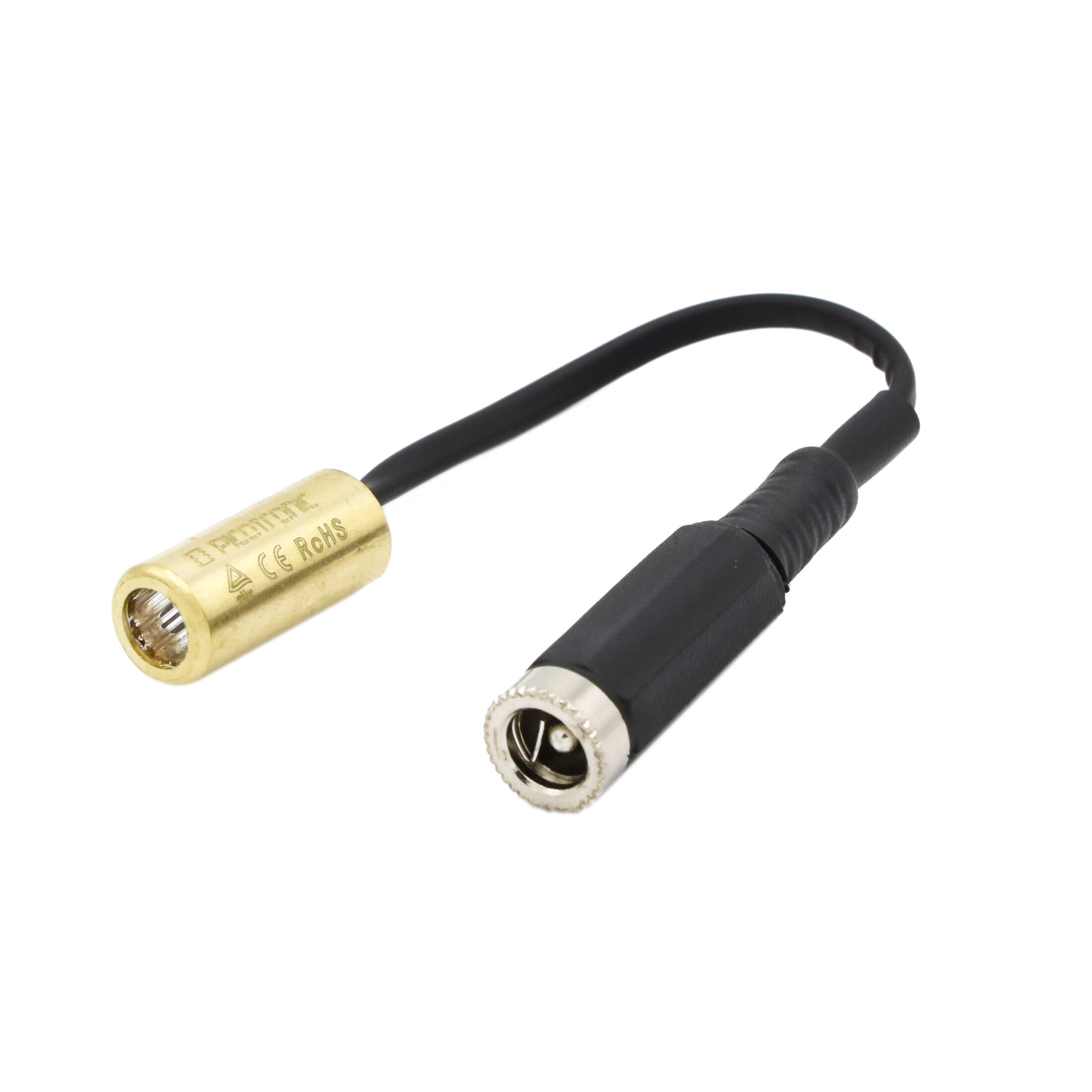

Laserfuchs laser LFL650-5-12(9X20)90-F250-CON
€29.19*
Available, delivery time: 1-2 days
Product number:
70158823
Product information "Laserfuchs laser LFL650-5-12(9X20)90-F250-CON"
Line lasermodule, red, 650nm, 5mW, 90°, class 1, focus 0.25m, 3-12V DC, 9x20mm
The type LFL650-5-12(9x20)90-F250 is a laser that projects a red laser line. This laser module emits light of the wavelength 650nm. The diode laser module measures 9x20mm. The fan angle of 90° generates a laser line of 0.5m length at a working distance of 0.25m. The operating voltage is 3 to 12 volts. This positioning laser is an universal tool for industry, hobby and trade. It reduces the effort that has to be put into positioning and alignment tasks. This module is laser class 1.
- Beam characteristics: line, line thickness <1mm@0.25m
- Optical Power: Laser class1; focus 0.25m
- Size: 9x20 mm; fan Angle: 90°; axis deviation up to 3°
- The fan angle of 90° creates a laser line of 0.5m in length at a distance of 0.25m.
- For use in, for example, laser marking systems, robot technology and the show area. Operating Voltage: 3-12V DC. For power supply, you can use our Picotronic LFNT-5 power pack.
Main Data
- Warranty: 1 years
- customs tarif number: 90132000000
Technical Parameters
- Lifetime: > 3,000 h
- Operating Temperature: -20°C - 40 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters
- Beam Shape: Line
- Optical Power: 5 mW
- Laser Class: 1
- Divergence: H - 1.0 mrad
- Fan Angle: 90 °
- Line Thickness: <1mm@0.25m
- Operating Distance: 0.25 m
- Optics: acryl lense
- Laser technology: diode
- Focus: fixed (250mm)
Electrical Parameters
- Operating Voltage: 3 - 12, typ 3 V DC
- Operating Current: 20 mA
- Connector: 2.5 mm DC socket (GND pole inner)
- Cable color positive: red
- Cable color GND: black
- Power Supply: LFNT-3-C
Mechanical Parameters
- Size: Ø9x20 mm
- Material: Brass
- Cable length: 100 mm
- Wire type: 26AWG, 0,14mm²
- Output Aperture: 6 mm
- Weight: 6 g
