Magnetic Mount for Lasermodul 9mm
€106.90
Available, delivery time: 1-2 days
Product information "Magnetic Mount for Lasermodul 9mm"
09mm(48x86) MAGNETIC-MOUNT-PRO für Lasermodule mit Durchmesser 9mm
Solid, very robust laser aluminum mount for industrial applicationsIndustrial quality, Bracket is adjustable in all degrees of freedom, Baseplate with magnetic mounting option
- Anodized aluminium
- Very robust
- For industrial applications
- Magnetic
- Halterung für Lasermodule mit Durchmesser 9mm.
- Befestigung: Magnetischer Standfuß
- Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert. Der farbige Standfuß wird mit Hilfe von drei Inbusschrauben mit dem Mount verbunden.
- Material: Aluminium; Farbe: Schwarz
- Hochwertige Halterung für industrielle Anwendungen
Main Data
- EAN: 4055132021962
- Customs tariff number: 90139080000
Technical Parameters
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -50°C - 70 °C
Mechanical Parameters
- Material: aluminium
- Housing Color: black
- Weight: 288 g
Mount Parameters
- Total Height (h1): 86 mm
- Height to Laseraxis (h2): 74 mm
- Height of Base (h3): 37 mm
- Mount Diameter (d1): Ø 9 mm
- Diameter of Base (d2): Ø 48 mm
- Width of Mount (b): 26 mm
- Height of Mount Head (k): 50 mm
- Depth of Mount (t): 15 mm
- Angle of Rotation Alpha (α): 360 °
- Angle of Rotation Beta (β): ± 90 °
Holosun
- BKA exception: no
Matching articles
LASERFUCHS dot laser, red, 650 nm, 1mW, 3-12V DC, Ø9x20 mm, Focus kollimiert, Laser class 2
Red point laser, 650 nm, 1mW, 3-12V DC, Ø9x20 mm, Focus kollimiert, Laser class 2
LASERFUCHS Line Laser, red, 650 nm, , , Ø9x20 mm, 90 °, Focus fixed (1000mm), Laser Class 1
Line laser, red, 650 nm, 5mW, 3-12V DC, Ø9x20 mm, 90 °, Focus fixed (1000mm), Laser class 1
Linienlaser rot 635nm 60° 3V-5V DC fokussierbar 9x21mm
Line lasermodule, red, 635nm, 5mW, 60°, class 1, focus adjustable, 3-5V DC, 9x21mm

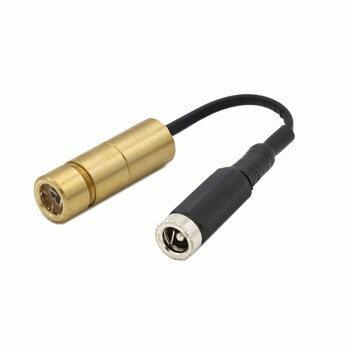

Line laser, red, 635 nm, 60 °, 5 mW, Ø9x21 mm, Laser Class 1, Focus adjustable, Cable length 150 mm, 2.5 mm DC socket (GND pole inner)
