PICOTRONIC, certified laser safety goggles PICO-LPG-620-700 according to DIN EN 207, suitable wavelength range 620 - 700 nm, comfortable fit, for laser welding, laser cutting, laser marking…

When working with laser systems of class 3R and higher, severe damage to the human eye can occur. The human eye can be permanently damaged by direct or indirect laser exposure. Retinal injuries mostly occur in the range of 400-1400nm, while damage to the cornea or lens occurs in the UV range (190-400nm). Therefore, it is essential to protect the eyes with an appropriate laser safety goggles. Laser safety goggles certified according to the valid standard DIN EN 207 (full protection) meet legal requirements and securely protect the eyes from dangerous laser radiation. Laser safety goggles and the filters contained within them are designed to absorb the specific energy of the laser. Therefore, the optimal protective goggles must be selected explicitly for the required wavelength range, the radiation peak value, and the necessary optical density. Naturally, daylight transmission, the field of vision, and the comfort of the frame also play a crucial role. The frame of the laser safety goggles prevents lateral penetration of the laser beam. ● Wavelength: 620-700nm, Protection Levels D LB5 + IR LB8 LP

Particularly suitable for: RED Laser 635nm and RED 650nm

Suitable for laser welding, laser cutting, laser marking, research and development, or even for cosmetic applications (please pay attention to the wavelength range!)

• Complete protection
• Comfortable fit over glasses or alone
• Adjustable temples and Side-shields for wide field of view
• CE Certified EN 207
• With Picotronic Logo imprint

• Full protection, CE-certified, EN 207
• These glasses offer a universal and comfortable fit, thanks to adjustable temples.
• LB Protection Values: 620-700nm D LB5 + IR LB8 LP
• Particularly suitable for: Laser RED 635nm and RED 650nm

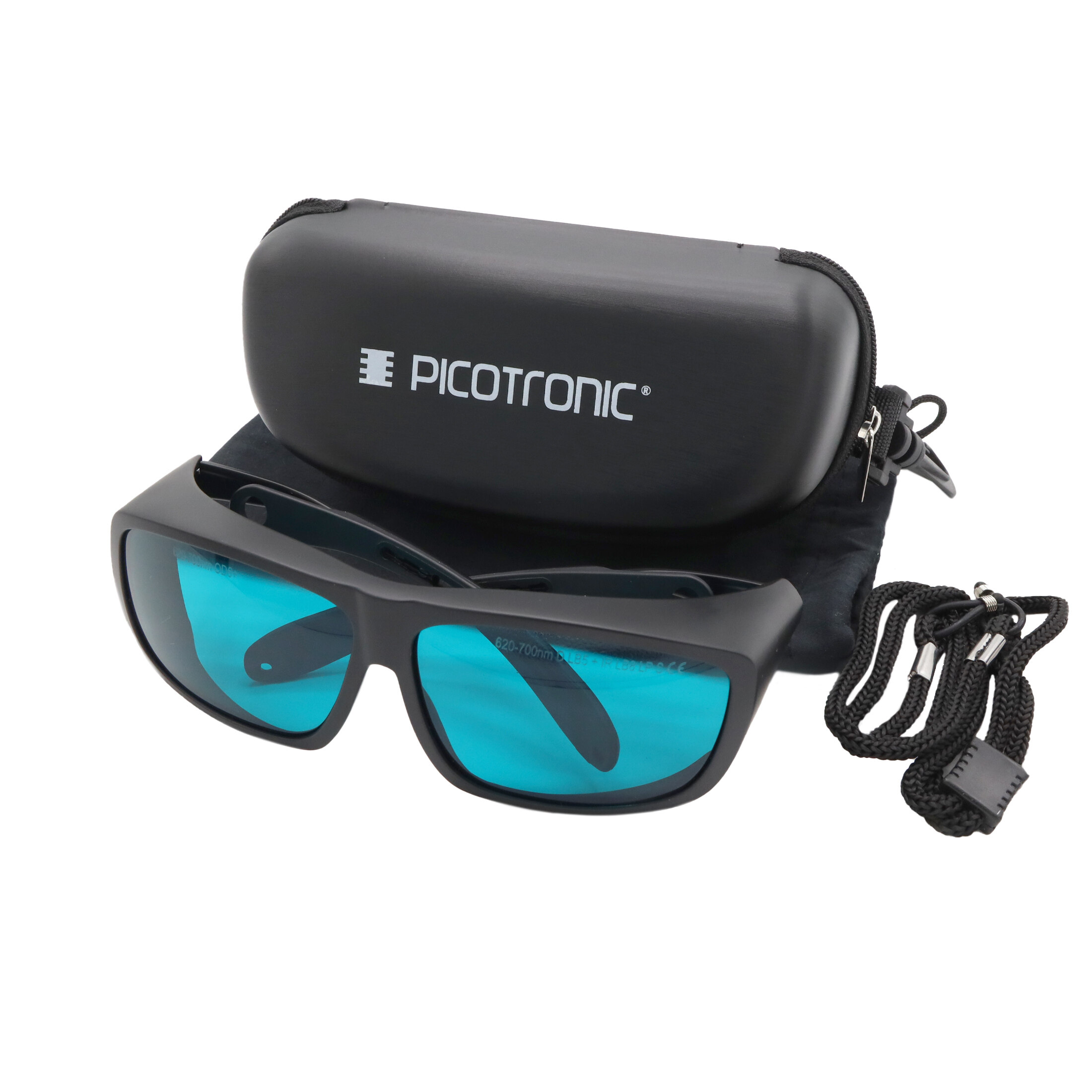

Delivery Content

• Safety goggles
• Glasses protective case
• Cleaning cloth
• Glasses strap
• Storage box
• Instructions for use and care

Main Data

• Customs tariff number: 90049010000

Technical Parameters

• Operating Temperature: -50°C - 85 °C
• Storage Temperature: -50°C - 80 °C

Optical Parameters

• LB Rating: 620-700nm D LB5 + IR LB8 LP
• Lens Color: Blue

Mechanical Parameters

• Size: 160x144x48 mm
• Material: Polymer
• Housing Color: black
• Weight: 40 g

Shop+Web

• Delivery Content: - Safety goggles

• Glasses protective case
• Cleaning cloth
• Glasses strap
• Storage box
• Instructions for use and care
