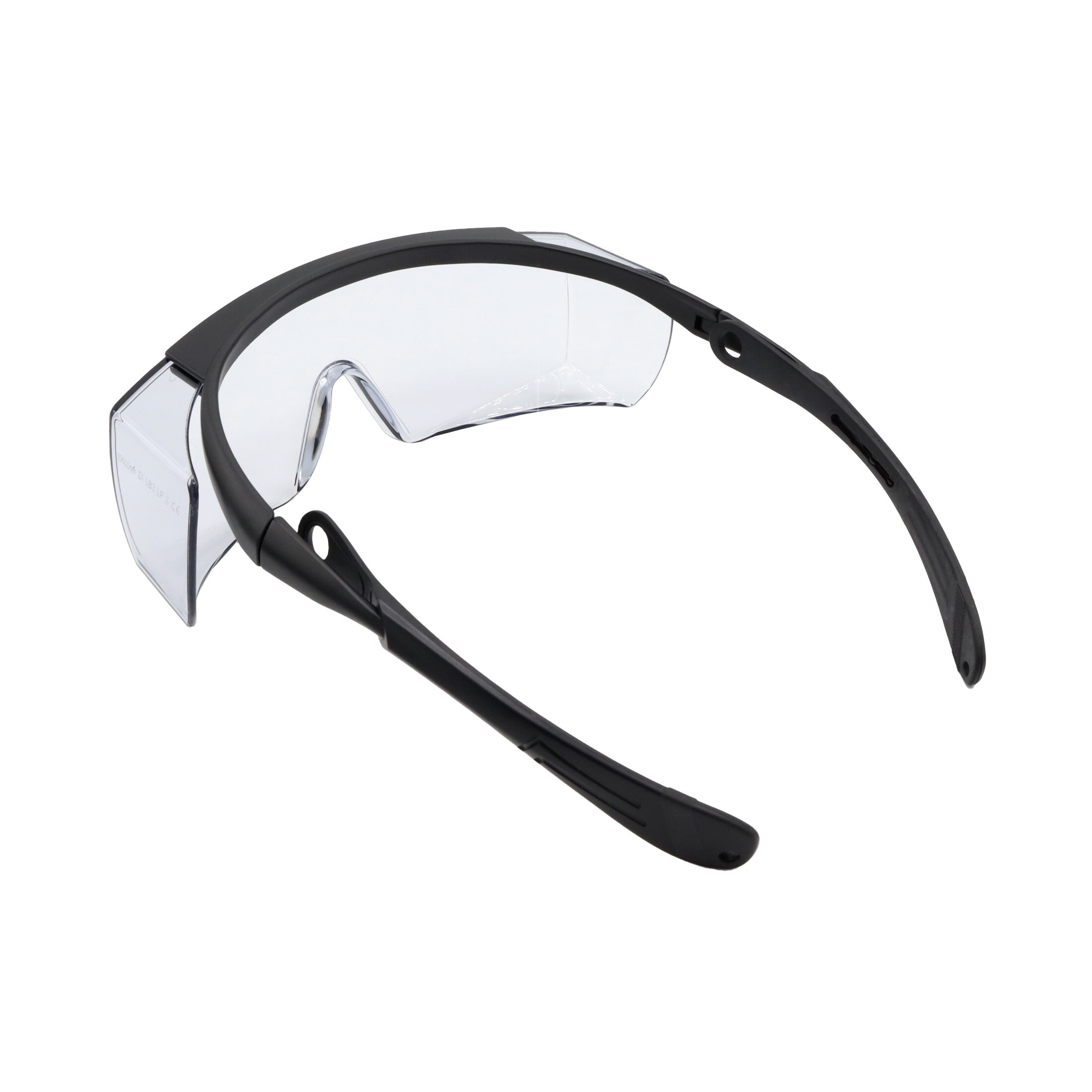

PICOTRONIC, certified laser safety goggles PICO-LPG-9000-11000 according to DIN EN 207, suitable wavelength range 9000 - 11000 nm, comfortable fit, for laser welding, laser cutting, laser m…

When working with laser systems of laser class 3R and higher, severe damage to the human eye can occur. The human eye can be permanently damaged by direct or indirect laser exposure. Injuries to the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes appropriately with suitable laser safety goggles. Laser safety goggles certified according to the valid standard DIN EN 207 (full protection) meet legal requirements and safely protect the eyes from dangerous laser radiation. Laser safety goggles and the filters they contain are designed to absorb the specific energy of the laser. Therefore, the optimal safety goggles must be explicitly selected for the required wavelength range, the radiation peak value, and the necessary optical density. Of course, daylight transmission, the field of vision, and the frame's wearing comfort also play a decisive role. The frame of the laser safety goggles prevents lateral penetration of the laser beam. ● Wavelength: 10600nm, Protection levels DI LB3

Especially suitable for: Laser IR 10600nm

Suitable for laser welding, laser cutting, laser marking, research, and development (Please observe the wavelength range!)

• Complete protection
• Comfortable fit over glasses or alone
• Adjustable temples and Side-shields for wide field of view
• CE Certified EN 207
• With Picotronic Logo imprint

• Full protection, CE-certified, EN 207
• These glasses offer a universal and comfortable fit, thanks to adjustable arms.
• LB Protection Value: 9000-11000nm DI LB3
• Particularly suitable for: Laser IR 10600 nm

Delivery Content

• Safety glasses

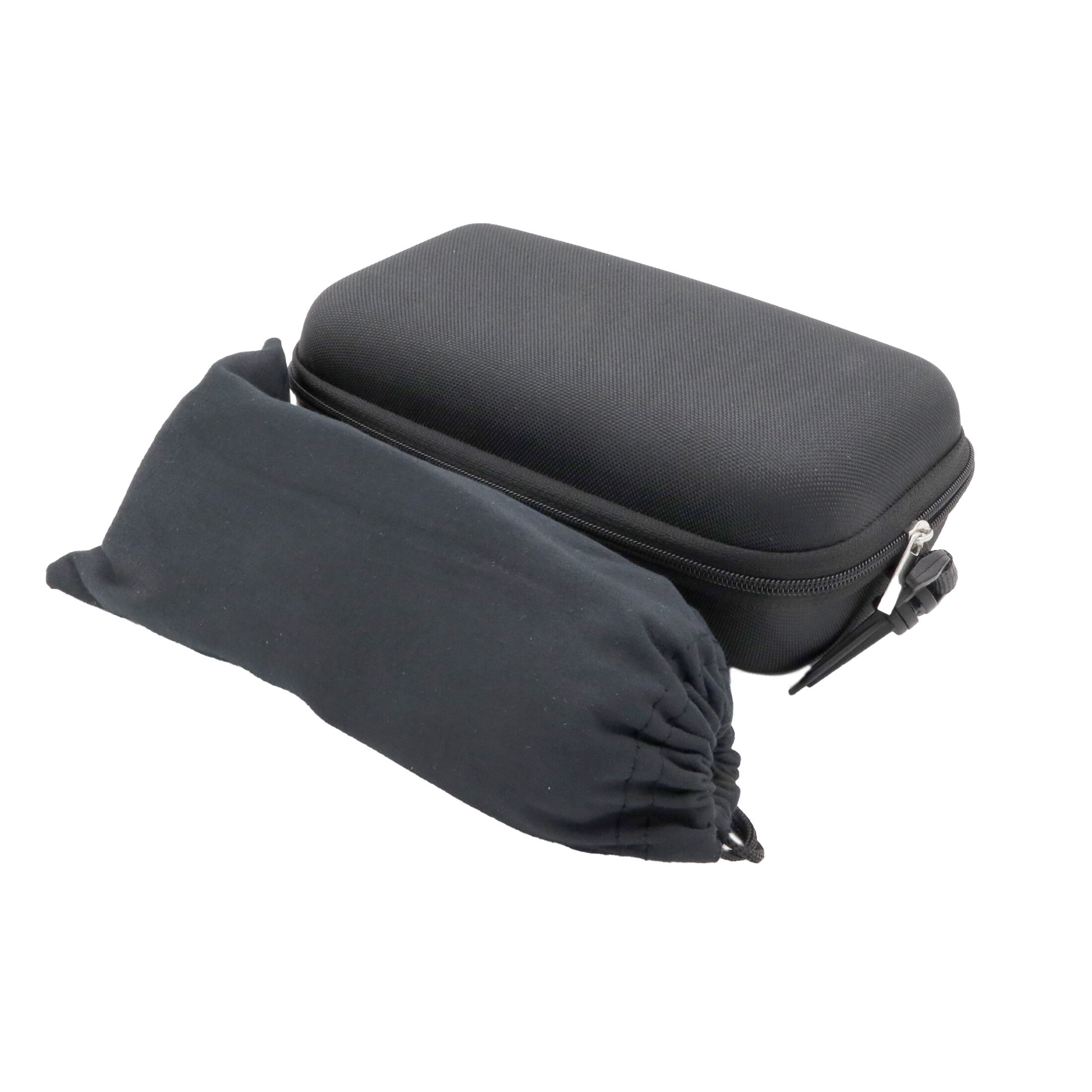

• Glasses protective case
• Cleaning cloth
• Glasses strap
• Storage box
• Use and care instructions

Main Data

• Customs tariff number: 90049010000

Technical Parameters

• Operating Temperature: -50°C - 85 °C
• Storage Temperature: -50°C - 80 °C

Optical Parameters

• LB Rating: 9000-11000nm DI LB3
• Lens Color: Claro

Mechanical Parameters

• Size: 175x155x60 mm
• Material: Polymer
• Housing Color: black
• Weight: 10 g

Shop+Web

• Delivery Content: - Safety glasses

• Glasses protective case
• Cleaning cloth
• Glasses strap
• Storage box
• Use and care instructions
