PICOTRONIC, certified laser protection goggles PICO-LPG-740-1100 according to DIN EN 207, suitable wavelength range 740 - 1100 nm, comfortable fit, for laser welding, laser cutting, laser m…

When working with laser systems of laser class 3R and higher, serious damage to the human eye can occur. The human eye can be permanently damaged by direct or indirect laser exposure. Injuries to the retina mostly occur in the range of 400-1400 nm, while defects on the cornea or lens occur in the UV range (190-400 nm). Therefore, it is essential to protect the eyes with appropriate laser safety goggles. Laser safety goggles certified according to the valid standard DIN EN 207 (full protection) comply with legal regulations and safely protect the eyes from dangerous laser radiation. Laser safety goggles and the filters contained in them are designed to absorb the specific energy of the laser. Therefore, the optimal protective goggles must be explicitly selected for the required wavelength range, the radiation peak value, and the required optical density. Naturally, the daylight transmission, the field of vision, and the wearing comfort of the frame also play a crucial role. The frame of the laser safety goggles prevents lateral entry of the laser beam.

● Wavelength: 740-780 nm, protection levels DIR LB5
● Wavelength: >780-820 nm, protection level D LB5 + IR LB6
● Wavelength: >820-1080 nm, protection level D LB5 + IR LB7

Especially suitable for: Laser INFRARED 780 nm, INFRARED 850 nm, INFRARED 905 nm, and INFRARED 1064 nm

Suitable for laser welding, laser cutting, laser marking, research and development, or cosmetic applications (please note the wavelength range!)

• Complete protection
• Comfortable fit over glasses or alone
• Adjustable temples and Side-shields for wide field of view
• CE Certified EN 207
• With Picotronic Logo imprint

• Full protection, CE certified, EN 207
• These glasses offer a universal and comfortable fit, thanks to adjustable temple arms.
• LB Protective Values: 740 - 780nm DIR LB5 > 780 - 820nm D LB5 + IR LB6 > 820 - 1080nm D LB5 + IR LB7
• Especially suitable for: Laser INFRARED 780nm, INFRARED 850nm, INFRARED 905nm, and INFRARED 1064nm

Delivery Content

• Safety goggles

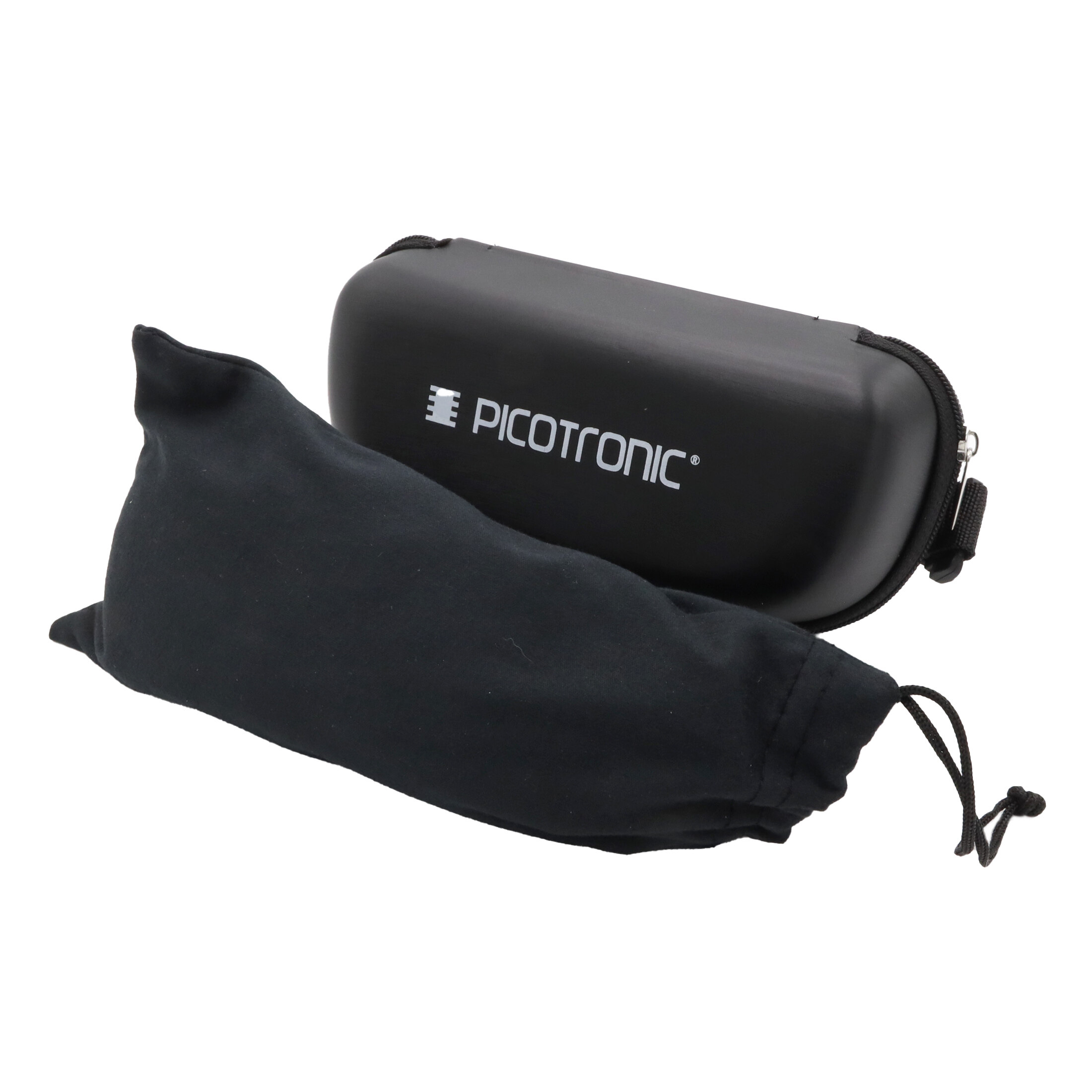

• Protective glasses case
• Cleaning cloth
• Glasses strap
• Storage box
• Instructions for use and care

Main Data

• Customs tariff number: 90049010000

Technical Parameters

• Operating Temperature: -50°C - 85 °C
• Storage Temperature: -50°C - 80 °C

Optical Parameters

• LB Rating: 740 - 780nm DIR LB5

  780 - 820nm D LB5 + IR LB6 820 - 1080nm D LB5 + IR LB7

• Lens Color: Green

Mechanical Parameters

• Size: 175x155x60 mm
• Material: Polymer
• Housing Color: black
• Weight: 10 g

Shop+Web

• Delivery Content: - Safety goggles

• Protective glasses case
• Cleaning cloth
• Glasses strap
• Storage box
• Instructions for use and care

Holosun

• BKA exception: no
