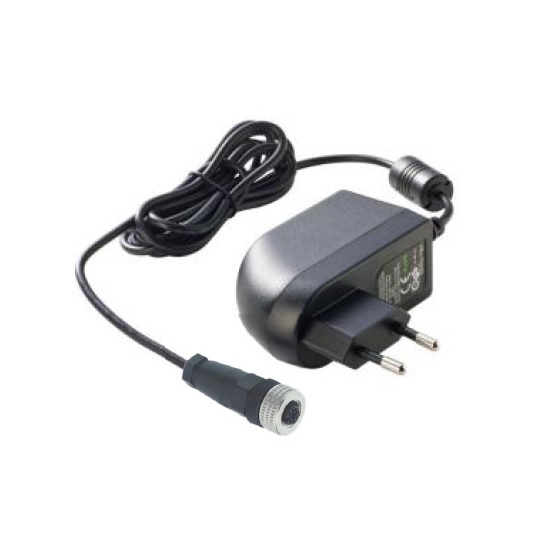

Netzteil, Ausgang: 24V DC, mit M12-Stecker (4-Pol / Pin 1: +24V / Pin 3: GND), Betriebsspannung: 100-240V AC 24V DC power supply for all laser module of the 24(20x135)-M12-Series aswell as the 24(20x80)-M12-Series. Also suitable for Z-Laser ZM18 and ZM12. Output: 24V DC Input: 100-240V AC 50-60Hz Power: 24W max. Compact size Output: 24V DC, Input: 100-240V AC, 50-60Hz, Power: 24W max. With M12 4 pin connector suitable for all M12 laser modules Also suitable for Z-Laser ZM18 and ZM12 for all laser module of the -24(20x135)-M12-Series for all laser module of the -24(20x80)-M12-Series Accessesories Picotronic Stromversorgung NF-S-419424-1-16A Main Data EAN: 4055132015824 Customs tariff number: 85044082 Technical Parameters Lifetime: > 50,000 h Operating Temperature: -30°C - 50 °C Storage Temperature: -50°C - 60 °C Electrical Parameters Operating Voltage: 100 - 240, typ 230 V AC Output Voltage: 24 V DC Operating Current: 1000 mA Connector: CON-M12 Mechanical Parameters Size: 55x80x26.5 mm Material: Plastic Cable length: 1,830 mm Housing Color: black Weight: 85 g Connector Pin VDD: 1 Connector Pin GND: 3 Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy LFNT-24-C-M12 on Amazon

Netzteil, Ausgang: 5V DC, offene Kabelenden, Betriebsspannung: 100-240V AC Powersuppy for Lasermodules 5V 1000mA Compact size Output voltage 5V DC Current 600 mA Ausgangsspannung: 5V DC Zwei abisolierte offene Kabelenden Kabellänge: 1,36m Betriebsspannung: 100-240V, 600mA Eurostecker TYP C (CEE 7/16) Accessesories Picotronic Stromversorgung NF-S-419424-1-16A Main Data EAN: 4260129044743 Customs tariff number: 85044082 Technical Parameters Operating Temperature: -30°C - 50 °C Storage Temperature: -50°C - 60 °C Electrical Parameters Operating Voltage: 100 - 240, typ 230 V AC Output Voltage: 5 V DC Operating Current: 600 mA Mechanical Parameters Size: 48x64x25.5 mm Material: Plastic Cable length: 1,360 mm Housing Color: black Weight: 85 g Matching articles Dot laser, infrared, 940 nm, 1 mW, 5 V DC, Ø12x40 mm, Laser Class 1, Focus fixed (2000mm), Cable length 100 mmModulierbarer Punktlaser, infrarot, 940nm, 1mW, Laser Klasse 1, Fokus 2m, 5V DC, 12x40mm Line laser, red, 650 nm, 60 °, 35 mW, 5 V DC, Ø15x60 mm, Laser Class 3R, Focus fixed (35mm), Cable length 200 mmFokussierbarer Linienlaser, rot, 650nm, 35mW, 60°, Laser Klasse 3R, 5V DC, 15x60mm, gleichmäßige Linienverteilung, Powell Linse, TTL 0-5V Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy LFNT-5 on Amazon

Batteriepack, Ausgang: 3V DC, offene Kabelenden, Betriebsspannung: 3V DC (2X Batterie AA 1,5V DC) Unser LFBAT-AA03 Batteriepack bietet als Schnittstelle zwei offene Kabelenden. Das Batteriepack eignet sich für alle 3V DC Lasermodule. Die Kabellänge beträgt ca. 0,12m. Das Gerät verfügt über einen An-Ausschalter. Ausgangsspannung: 3V DC Als Anschluss dienen zwei abisolierte offene Kabelenden Kabellänge: 0,12m Betriebsspannung: 3V DC (2X Batterie AA 1,5V DC) Das Batteriepack verfügt über einen An- Ausschalter. Delivery Content Im Lieferumfang sind 2 Batterien (AA) enthalten. Main Data EAN: 4260129041285 Customs tariff number: 90139080 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -20°C - 60 °C Electrical Parameters Operating Voltage: 2.7 - 3.3, typ 3 V DC Output Voltage: 3 V DC Battery: AA battery, 1.5V Battery count: 2 Cable color positive: red Cable color ground: black Mechanical Parameters Size: 18.6x35.4x68.4 mm Cable length: 120 mm Wire type: 26AWG, 0,14mm² Weight: 68 g Shop+Web Delivery Content: Im Lieferumfang sind 2 Batterien (AA) enthalten. Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy LFBAT-AA03 on Amazon

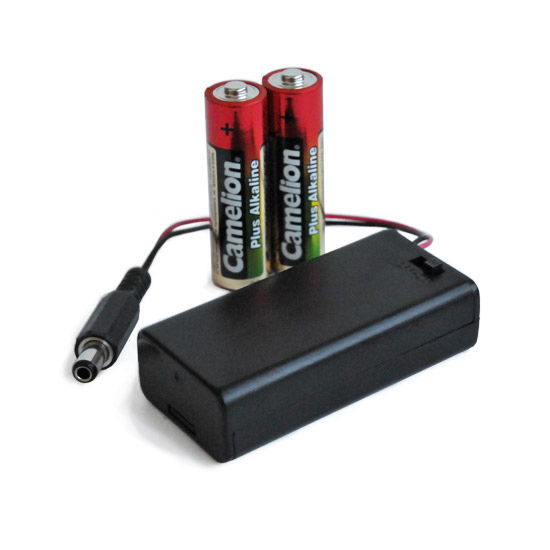

Batteriepack, Ausgang: 3V DC, mit DC-Stecker Ø2,5 mm (GND innen), Betriebsspannung: 3V DC (2X Batterie AA 1,5V DC) Unser LFBAT-AA03-CON2.5 Batteriepack besitzt einen DC-Hohlstecker mit Durchmesser 2,5mm. Der innere Pol des Hohlsteckers liegt auf GND, der äußere Pol auf +3V. Das Batteriepack eignet sich für alle 3V DC Lasermodule mit DC-Hohlbuchse (Durchmesser 2,5mm). Die Kabellänge beträgt ca. 0,12m. Das Gerät verfügt über einen An-Ausschalter. Ausgangsspannung: 3V DC Anschlussstecker: DC-Stecker Ø2,5 mm (GND innen, + 3V außen) Kabellänge: 0,12m Betriebsspannung: 3V DC (2X Batterie AA 1,5V DC) Das Batteriepack verfügt über einen An- Ausschalter. Delivery Content Im Lieferumfang sind 2 Batterien (AA) enthalten. Main Data EAN: 4055132008987 Customs tariff number: 85044082 Technical Parameters Operating Temperature: -20°C - 50 °C Storage Temperature: -20°C - 60 °C Electrical Parameters Output Voltage: 3 V DC Battery: AA battery, 1.5V Battery count: 2 Connector: 2.5 mm DC plug (GND pole inner) Cable color positive: red Cable color ground: black Mechanical Parameters Size: 18.5x33x68 mm Cable length: 120 mm Wire type: 26AWG, 0,14mm² Weight: 69 g Shop+Web Delivery Content: Im Lieferumfang sind 2 Batterien (AA) enthalten. Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4260129041377 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 83 g Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

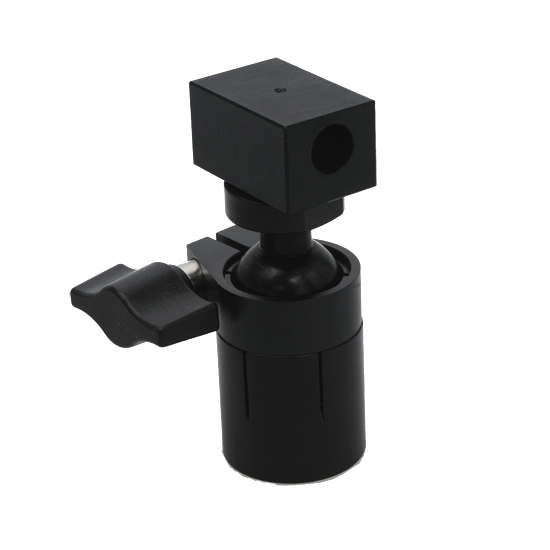

Ø10,3mm(25x69) Halterung-Ballhead für Lasermodule mit Durchmesser 10,3mm Laser holder with a height of 68 cm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Bracket for Lasermodule 10.3mm. 1/4 '' UNC internal thread in the base. Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042336 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 68 mm Height to Laseraxis (h2): 61 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 10.3 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 18 mm Height of Mount (g): 17.3 mm Height of Mount Head (k): 34 mm Depth of Mount (t): 27 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Matching articles Doe laser, red, 635 nm, 5 mW, 5 V DC, Ø10x24 mm, Laser Class 1M, Focus adjustable, Cable length 100 mm Doe laser, red, 635 nm, 5 mW, 5 V DC, Ø10x24 mm, Laser Class 2M, Focus adjustable, Cable length 100 mm, 2.1 mm DC socket (GND inner) Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-10.3(25x69) on Amazon

Ø4-12,5mm(66x69) LASER-MOUNT für Lasermodule mit Durchmesser 4mm bis 12,5mm Laser holder with a adjustable height Bracket is adjustable in all degrees of freedom Material: aluminum laser holder Rod and baseplate: Steel Flexible design Low cost Light weight stable transportbox Halterung für Lasermodule mit Durchmesser 4mm bis 12,5mm. Befestigung: Vier Durchgangslöcher im Standfuß Ø4,5mm Das Lasermodul wird mit Kunststoffklemmschrauben in der Halterung fixiert. Material: Aluminium, Stahl; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen. Delivery Content Inklusive stabiler Transportbox Main Data EAN: 4055132008635 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Stainless Steel Weight: 150 g Mount Parameters Total Height (h1): 69 mm Mount Diameter (d1): Ø 12.5 mm Diameter of Base (d2): Ø 35 mm Width of Mount (b): 66 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 360 ° Shop+Web Delivery Content: Inklusive stabiler Transportbox Matching articles Laserfuchs Crosslaser red, 650nm, 45°, 5V DC, Ø12x45 mm, Focus 1m, class 1, power supply includedcross lasermodule, red, 650nm, 5mW, 45°, class 1, focus 1m, 5V DC, 12x45mm, with power supply Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy PLM-1125 on Amazon

Ø12,5-16,5mm(67x69) LASER-MOUNT für Lasermodule mit Durchmesser 12.5mm bis 16.5mm Laser holder with a adjustable height Bracket is adjustable in all degrees of freedom Material: aluminum laser holder Rod and baseplate: Steel Flexible design Low cost Light weight stable transportbox Halterung für Lasermodule mit Durchmesser 12,5mm bis 16,5mm. Befestigung: Vier Durchgangslöcher im Standfuß Ø4,5mm Das Lasermodul wird mit Kunststoffklemmschrauben in der Halterung fixiert. Material: Aluminium, Stahl; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen. Delivery Content Inklusive stabiler Transportbox Main Data EAN: 4055132008659 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Stainless Steel Weight: 150 g Mount Parameters Total Height (h1): 69 mm Mount Diameter (d1): Ø 16.5 mm Diameter of Base (d2): Ø 35 mm Width of Mount (b): 67 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 360 ° Shop+Web Delivery Content: Inklusive stabiler Transportbox Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy PLM-1165 on Amazon

Ø12mm(25x70) Halterung-Ballhead für Lasermodule mit Durchmesser 12mm Laser holder with a height of 70 mm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Bracket for Lasermodule 12mm. 1/4 '' UNC internal thread in the base. Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042466 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 70 mm Height to Laseraxis (h2): 62 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 12 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 18 mm Height of Mount (g): 19 mm Height of Mount Head (k): 35.5 mm Depth of Mount (t): 27 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Matching articles Laserfuchs Crosslaser red, 650nm, 45°, 5V DC, Ø12x45 mm, Focus 1m, class 1, power supply includedcross lasermodule, red, 650nm, 5mW, 45°, class 1, focus 1m, 5V DC, 12x45mm, with power supply Line laser, green, 532 nm, 90 °, 5 mW, 3 V DC, Ø12x60 mm, Laser Class 1, Focus fixed (1300mm), Cable length 100 mm, 2.5 mm DC socket (GND pole inner)Line lasermodule, green, 532nm, 5mW, 90°, class 1, focus 1.3m, 3V DC, 12x60mm, with Connector 2.5mm Punktlaser grün 532nm 1mW Ø12x60 250mm KabelPunktlaser, grün, 532nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 12x60mm, Kabel 0,25m Point laser, blue, 405 nm, 0.4 mW, Laser Class 1, focusable, 5 V DC, 12x40 mmPoint laser, blue, 405 nm, 0.4 mW, laser class 1, focusable, 5 V DC, 12x40 mm Dot laser, blue, 450nm, 0.4mW, Laser Class 1, collimated, 5V DC, 12x40mmBlue dot laser, 450nm, 0.4mW, Laser Class 1, collimated, 5V DC, 12x40mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-12(25x70) on Amazon

Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4260129041384 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 85 g Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Ø14mm(25x72) Halterung-Ballhead für Lasermodule mit Durchmesser 14mm Laser holder with a height of 72 mm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Bracket for Lasermodule 14mm. 1/4 '' UNC internal thread in the base. Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042312 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 72 mm Height to Laseraxis (h2): 63 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 14 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 18 mm Height of Mount (g): 21 mm Height of Mount Head (k): 37.5 mm Depth of Mount (t): 27 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-14(25x72) on Amazon

Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4260129041568 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 87 g Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4260129041391 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 84 g Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Ø15,5mm(25x74) Halterung-Ballhead für Lasermodule mit Durchmesser 15,5mm Laser holder with a height of 74 mm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Bracket for Lasermodule 15.5mm. 1/4 '' UNC internal thread in the base. Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042428 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 74 mm Height to Laseraxis (h2): 65 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 15.5 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 18 mm Height of Mount (g): 22.5 mm Height of Mount Head (k): 39 mm Depth of Mount (t): 27 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-15.5(25x74) on Amazon

Ø16,5-22,5mm(90x75) LASER-MOUNT für Lasermodule mit Durchmesser 16,5mm bis 22,5mm Laser holder with a adjustable height Bracket is adjustable in all degrees of freedom Material: aluminum laser holder Rod and baseplate: Steel Flexible design Low cost Light weight stable transportbox Halterung für Lasermodule mit Durchmesser 16,5mm bis 22,5mm. Befestigung: Vier Durchgangslöcher im Standfuß Ø4,5mm Das Lasermodul wird mit Kunststoffklemmschrauben in der Halterung fixiert. Material: Aluminium, Stahl; Farbe: Schwarz Hochwertige Halterung für industrielle Anwendungen. Delivery Content Inklusive stabiler Transportbox Main Data EAN: 4055132008642 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Stainless Steel Weight: 150 g Mount Parameters Total Height (h1): 90 mm Mount Diameter (d1): Ø 22.5 mm Diameter of Base (d2): Ø 35 mm Width of Mount (b): 75 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 360 ° Shop+Web Delivery Content: Inklusive stabiler Transportbox Matching articles Linienlaser, rot, 650nm, 25mW, 90°, Laser Klasse 2, Fokus 0,8m, 24V DC, 20x80mmLinienlaser, rot, 650nm, 25mW, 90°, Laser Klasse 2, Fokus 0,8m, 24V DC, 20x80mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy PLM-1225 on Amazon

Ø16mm(25x75) Halterung-Ballhead für Lasermodule mit Durchmesser 16mm Laser holder with a height of 74 mm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Bracket for Lasermodule 16mm. 1/4 '' UNC internal thread in the base. Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042411 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 75 mm Height to Laseraxis (h2): 64 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 16 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 18 mm Height of Mount (g): 23 mm Height of Mount Head (k): 39 mm Depth of Mount (t): 27 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-16(25x75) on Amazon

Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4260129041407 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 83 g Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

ø 20mm (25x78) Halterung-Ballhead für Lasermodule mit Durchmesser 20mm Laser holder with a height of 78 mm. Ballhead allows to move in all degrees of freedom 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Bracket for Lasermodule 20mm 1/4 '' UNC internal thread in the base. Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042442 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 78 mm Height to Laseraxis (h2): 67 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 20 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 22 mm Height of Mount (g): 27 mm Height of Mount Head (k): 44 mm Depth of Mount (t): 33 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-20(25x78) on Amazon

Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4260129041414 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 94 g Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Ø22mm(25x80) Halterung-Ballhead für Lasermodule mit Durchmesser 22mm Laser holder with a height of 80 mm. Ballhead allows to move in all degrees of freedom 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design Industrial Quality Light weight Bracket for Lasermodule 22mm 1/4 '' UNC internal thread in the base. Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042329 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 80 mm Height to Laseraxis (h2): 67 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 22 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 24 mm Height of Mount (g): 29 mm Height of Mount Head (k): 46 mm Depth of Mount (t): 36 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-22(25x80) on Amazon

Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Main Data EAN: 4055132009373 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 96 g Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Ø25,4mm(25x84) Halterung-Ballhead für Lasermodule mit Durchmesser 25,4mm Laser holder with a height of 84 mm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Bracket for Lasermodule 25.4mm 1/4 '' UNC internal thread in the base Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042350 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 84 mm Height to Laseraxis (h2): 70 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 25.4 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 27.5 mm Height of Mount (g): 32.5 mm Height of Mount Head (k): 49.5 mm Depth of Mount (t): 40 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-25.4(25x84) on Amazon

Ø25,4mm(58x145) LF-Halterung für Lasermodule mit Durchmesser 25,4mm Laser holder with a height of 12 cm, also reducible to a height of 6 cm Bracket is adjustable in all degrees of freedom Material: aluminum rod and laser holder Baseplate: Plastic Flexible design Low cost Light weight Halterung für Lasermodule mit Durchmesser 25,4mm. Befestigung: Drei Durchgangslöcher 4mm im Standfuß; Lochabstand 43mm Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material Stativ und Halterung: Aluminium Material Standfuß: Kunststoff Main Data EAN: 4260129041438 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: Aluminium/Plastic Weight: 111.5 g Mount Parameters Mount Diameter (d1): Ø 25.4 mm Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de

Ø8mm(25x66) Halterung-Ballhead für Lasermodule mit Durchmesser 8mm Laser holder with a height of 66 mm. Ballhead allows to move in all degrees of freedom. 1/4 '' UNC internal thread in the base. Material: Aluminum, black anodized Flexible design / Industrial Quality / Light weight Bracket for Lasermodule 8mm. 1/4 '' UNC internal thread in the base. Das Lasermodul kann mit einer Madenschraube in der Halterung fixiert werden. Material: Aluminium; Farbe: Schwarz Main Data EAN: 4260129042435 Customs tariff number: 90139080000 Technical Parameters Operating Temperature: -20°C - 40 °C Storage Temperature: -50°C - 50 °C Mechanical Parameters Material: aluminium Housing Color: black Weight: 84 g Mount Parameters Total Height (h1): 66 mm Height to Laseraxis (h2): 60 mm Height of Base (h3): 34.5 mm Mount Diameter (d1): Ø 8 mm Diameter of Base (d2): Ø 25 mm Width of Mount (b): 18 mm Height of Mount (g): 15 mm Height of Mount Head (k): 31.5 mm Depth of Mount (t): 27 mm Angle of Rotation Alpha (α): 360 ° Angle of Rotation Beta (β): ± 40 ° Angle of Rotation Gamma (γ): ± 40 ° Product Safety Information Manufacturer Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.de Responsible Economic Operator Picotronic GmbH Rudolf-Diesel-Str.2a 56070 Koblenz Deutschland info@picotronic.deBuy BALLHEAD-MOUNT-08(25x66) on Amazon
