Dot laser, red, 650 nm, 1 mW, 3 V DC, Ø6x17 mm, Laser Class 2, Focus collimated, Cable length 70 mm

Product information "Dot laser, red, 650 nm, 1 mW, 3 V DC, Ø6x17 mm, Laser Class 2, Focus collimated, Cable length 70 mm"

Punktlaser, rot, 650nm, 1mW, Laser Klasse 2, Fokus kollimiert, 3V DC, 6x17mm

The type is a dot laser that projects a laser dot. The laser module emits light of the wavelength . This diode laser module measures x . Accordingly, it is a small and effective laser source. The optimal operation range of the laser is .You may use our battery pack with 2 x 1.5 volt batteries as power supply. This dot laser can be applied e.g. in laser levels, laser marking systems, robotics, and laser entertainment area. This module is laser class . The working life of the laser module exceeds .

  • Operating Voltage 3 V DC
  • Laser Class 2
  • Low power consumption
  • Compact size
  • Low cost
  • Abstrahlcharakteristik: elliptischer Punkt, Punktgröße <8mm@10m
  • Optische Leistung: 1mW (Laserklasse 2); Fokus kollimiert
  • sehr kompakte Bauform: 6x17mm; Achsabweichung: bis zu 3,0°
  • Für Anwendungen in z.B. Laserwasserwaagen, Lasermarkierungssystemen, der Robotertechnik, in Industrie, Handwerk, Hobby und dem Showbereich.
  • Spannungsversorgung 3V. Zur Stromversorgung können Sie z.B. unser Picotronic Batteriepack 3V oder das Netzteil Picotronic LFNT-3 verwenden.

Accessesories

Mount for Lasermodul 06mm
Ø6mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 6mm
Magnetic Mount for Lasermodul 6mm
Ø6mm(48x86) MAGNETIC-MOUNT-PRO für Lasermodule mit Durchmesser 6mm
Magnetic Mount for Lasermodul 12mm
Ø6mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 6 mm
Power supply 3V DC (1200mA)
Netzteil, Ausgang: 3V DC, offene Kabelenden, Betriebsspannung: 100-240V AC
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development

Main Data

  • EAN: 4260129044736
  • Warranty: 1 years
  • Customs tariff number: 90132000000

Technical Parameters

  • Lifetime: > 3,000 h
  • Operating Temperature: -20°C - 40 °C
  • Storage Temperature: -40°C - 80 °C

Optical Parameters

  • Beam Shape: Dot
  • Optical Power: 1 mW
  • Laser Class: 2
  • Divergence: H - 1.0 mrad
  • Beam Diameter: 3 mm
  • Size of Laserdot: <8mm@10m
  • Operating Distance: 10 m
  • Optics: acryl lense
  • Laser technology: Single Mode Diode
  • Focus: collimated

Electrical Parameters

  • Potential of Housing: VDD(+)
  • Operating Voltage: 2.7 - 3.3, typ 3 V DC
  • Operating Current: 5 - 15, typ 10 mA
  • Cable color positive: red
  • Cable color GND: black
  • Power Supply: LFNT-3

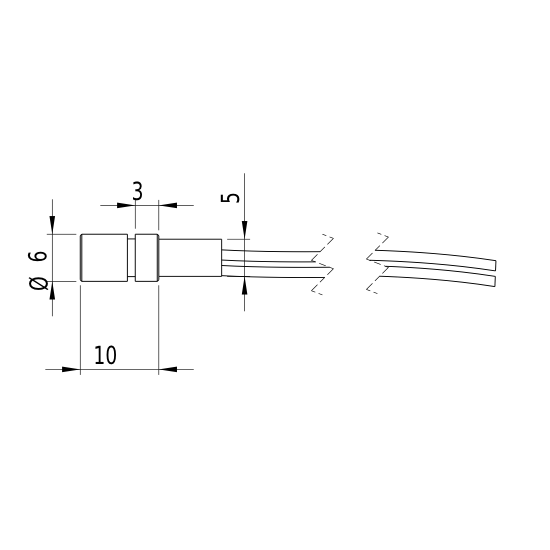

Mechanical Parameters

  • Size: Ø6x17 mm
  • Material: Brass
  • Cable length: 70 mm
  • Wire type: Belden, Typ 1007, 26AWG
  • Output Aperture: 3 mm
  • Weight: 2 g

Buy LFD650-1-3(6x17) on Amazon
Optische Diodenleistung: 1 mW
