High quality laser safety goggles - full protection of all wavelengths
Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. The laser safety goggles certified to the valid standard DIN EN 207 (full protection) comply with the legal regulations and protect the eyes against dangerous laser radiation. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam.
Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. The laser safety goggles certified to the valid standard DIN EN 207 (full protection) comply with the legal regulations and protect the eyes against dangerous laser radiation. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam.
Wavelength: 180-315nm, lb rating D LB7 + IR LB4
Wavelength: >315-532nm, lb rating DIRM LB6
Especially suitable for: Laser BLUE 405nm, BLUE 445nm, BLUE 450, GREEN 520nm und GREEN 532nm
For laserwelding, lasercutting, lasermarking, laserengraving, research and development and cosmetic applications (Please note the wavelengthrange!)
Complete protection
Comfortable fit over glasses or alone
Adjustable temples and side-shields for wide field of view
CE Certified EN 207
With Picotronic Logo imprint
complete protection
universal fit, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view
CE Certified
Wavelength: 180-315nm, lb rating D LB7 + IR LB4 Wavelength: >315-532nm, lb rating DIRM LB6
Especially suitable for: Laser BLUE 405nm, BLUE 445nm, BLUE 450, GREEN 520nm und GREEN 532nm
Main Data
EAN: 4055132014988
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 180-315 D LB7 + IR LB4
315-400 DIRM LB5
400-534 D LB5 + IRM LB6
720-770 + >850-1080 DIRM LB5
750-765 + 980-1065 D LB5 + IR LB7 + M LB7Y
770-850 DIRM LB4
Lens Color: Amber
Mechanical Parameters
Size: 145x144x50 mm
Material: Polymer
Housing Color: black
Weight: 10 g
Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. The laser safety goggles certified to the valid standard DIN EN 207 (full protection) comply with the legal regulations and protect the eyes against dangerous laser radiation. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam.
Wavelength: 180-315nm, lb rating D LB7 + IR LB4
Wavelength: >315-532nm, lb rating DIRM LB6
Especially suitable for: Laser BLUE 405nm, BLUE 445nm, BLUE 450, GREEN 520nm und GREEN 532nm
For laserwelding, lasercutting, lasermarking, laserengraving, research and development and cosmetic applications (Please note the wavelengthrange!)
Complete protection
Comfortable fit over glasses or alone
Adjustable temples and side-shields for wide field of view
CE Certified EN 207
With Picotronic Logo imprint
complete protection
universal fit, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view
CE Certified
Wavelength: 180-315nm, lb rating D LB7 + IR LB4 Wavelength: >315-532nm, lb rating DIRM LB6
Especially suitable for: Laser BLUE 405nm, BLUE 445nm, BLUE 450, GREEN 520nm und GREEN 532nm
Main Data
EAN: 4055132003357
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 180-315 D LB7 + IR LB4, >315-532 DIRM LB6

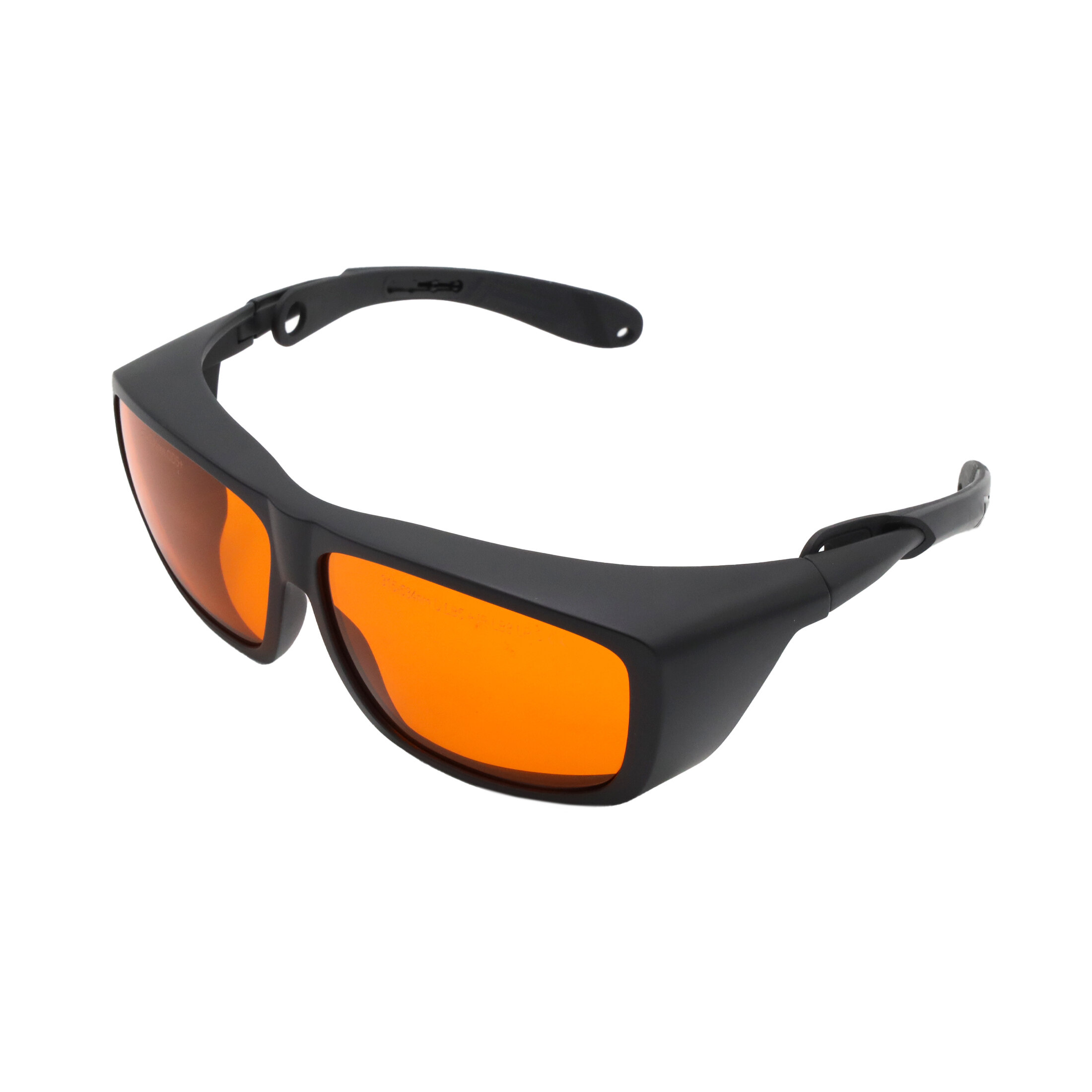

Lens Color: Orange
Mechanical Parameters
Size: 145x144x50 mm
Material: Polymer
Housing Color: black
Weight: 10 g
Matching articles
LFD532-5-3(12x60)Laser Lasermodul Punktlaser grün 532nm 5mW 3VDC
LFL532-5-3(12x60)Line laser, green, 532 nm, 90 °, 5 mW, 3 V DC, Ø12x60 mm, Laser Class 1, Focus fixed (3000mm), Cable length 100 mm
LFD532-1-3(12x60)-001Dot laser, green, 532 nm, 1 mW, 3 V DC, Ø12x60 mm, Laser Class 2, Focus collimated, Cable length 100 mm
LFL532-5-3(16x90)-NTLaserfuchs Linelaser green, 532nm, 90°, 3VDC, Ø16x90 mm, Focus 3m, class 1, power supply included
LFD532-5-3(16x90)-NTDot laser, green, 532 nm, 5 mW, 3 V DC, Ø16x90 mm, Laser Class 3R, Focus collimated, Cable length 1,400 mm, 2.5 mm DC plug (GND pole inner)
LFD532-1-3(16x90)-NTPositionierlaser Punktlaser grün 532nm 1mW incl. Netzteil
LFL532-5-3(12x60)-F1300Line laser, green, 532 nm, 90 °, 5 mW, 3 V DC, Ø12x60 mm, Laser Class 1, Focus fixed (1300mm), Cable length 100 mm
LFL532-10-3(12x60)Line laser, green, 532 nm, 90 °, 10 mW, 3 V DC, Ø12x60 mm, Laser Class 2, Focus fixed (3000mm), Cable length 100 mm
DD405-1-3(14x45)Laser Lasermodul Punktlaser blau 405nm 1mW 3VDC Fokus einstellbar
STAR-PROJECTOR-NANOLaser Sternenhimmel Projektor 532nm grün inkl. Halterung und Netzteil
LE405-1-3(14x45)90DEG-F150Laser Lasermodul Punktlaser blau 405nm 1mW 3VDC Fokus einstellbar
LC405-16-3-F(14x55)30Line laser, blue, 405 nm, 30 °, 16 mW, 3 V DC, Ø14x55 mm, Laser Class 2M, Focus adjustable, Cable length 100 mm
LC450-16-3-F(14x55)30Line laser, blue, 450 nm, 30 °, 16 mW, 3 V DC, Ø14x55 mm, Laser Class 2M, Focus adjustable, Cable length 200 mm
DD405-1-3(14x45)-CONLaser Lasermodul Punktlaser blau 405nm 1mW 3VDC Fokus einstellbar
LFL520-5-3(19x86)90Line laser, green, 520 nm, 90 °, 5 mW, Ø19x86 mm, Laser Class 1, Focus fixed (1000mm)
LFD532-1-3(16x90)-AP-NTPositionierlaser Punktlaser grün 532nm 1mW incl. Netzteil
XL520-5Green premium line laser XL520-5 for Tabletop, Distance >10m, perfect visual aid for all real tabletop fans, valuable tool for fair and exact gameplay
LFL532-5-3(12x60)-F1300-CONLine laser, green, 532 nm, 90 °, 5 mW, 3 V DC, Ø12x60 mm, Laser Class 1, Focus fixed (1300mm), Cable length 100 mm, 2.5 mm DC socket (GND pole inner)
LFD520-1-3(19x86)Dot laser, green, 520 nm, 1 mW, Ø19x86 mm, Laser Class 2, Focus fixed (5.0m)
LFD532-5-3(12x60)-C35Laser Lasermodul Punktlaser grün 532nm 5mW 3VDC
LFD532-1-3(12x60)-C250Dot laser, green, 532 nm, 1 mW, 3 V DC, Ø12x60 mm, Laser Class 2, Focus collimated, Cable length 250 mm
LFL532-10-3(16X90)-NTLine laser, green, 532 nm, 90 °, 10 mW, 3 V DC, Ø16x90 mm, Laser Class 2, Focus fixed (3000mm), Cable length 1,500 mm, 2.5 mm DC plug (GND pole inner)Buy PICO-LPG-405-532 on Amazon
Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. The laser safety goggles certified to the valid standard DIN EN 207 (full protection) comply with the legal regulations and protect the eyes against dangerous laser radiation. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam.
● Wavelength: 630-711nm, lb rating DIR LB5
● Wavelength: 648-708nm, lb rating D LB5 + IR LB6
● Wavelength: 651-704nm, lb rating D LB5 + IR LB7
● Wavelength: 654-699nm, lb rating D LB5 + IR LB8
● Wavelength: 712-713nm, lb rating DIR LB4
● Wavelength: 714-717nm, lb rating DIR LB3
Especially suitable for: Laser RED 635nm, RED 650nm and
RED 660nm
For laserwelding, lasercutting, lasermarking, laserengraving, research and development or cosmetic applications (Please note the wavelengthrange!)
Complete protection
Comfortable fit over glasses or alone
Adjustable temples and Side-shields for wide field of view
CE Certified EN 207
With Picotronic Logo imprint
complete protection, CE Certified
universal, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view
● Wavelength: 630-711nm, lb rating DIR LB5 ● Wavelength: 648-708nm, lb rating D LB5 + IR LB6 ● Wavelength: 651-704nm, lb rating D LB5 + IR LB7 ● Wavelength: 654-699nm, lb rating D LB5 + IR LB8
● Wavelength: 654-699nm, lb rating D LB5 + IR LB8 ● Wavelength: 712-713nm, lb rating DIR LB4 ● Wavelength: 714-717nm, lb rating DIR LB3
Especially suitable for: Laser RED 635nm, RED 650nm and RED 660nm
Main Data
EAN: 4055132003371
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 630-711 DIR LB5, 648-708 D LB5 + IR LB6, 651-704 D LB5 + IR LB7, 654-699 D LB5 + IR LB8, 712-713 DIR LB4, 714-717 DIR LB3

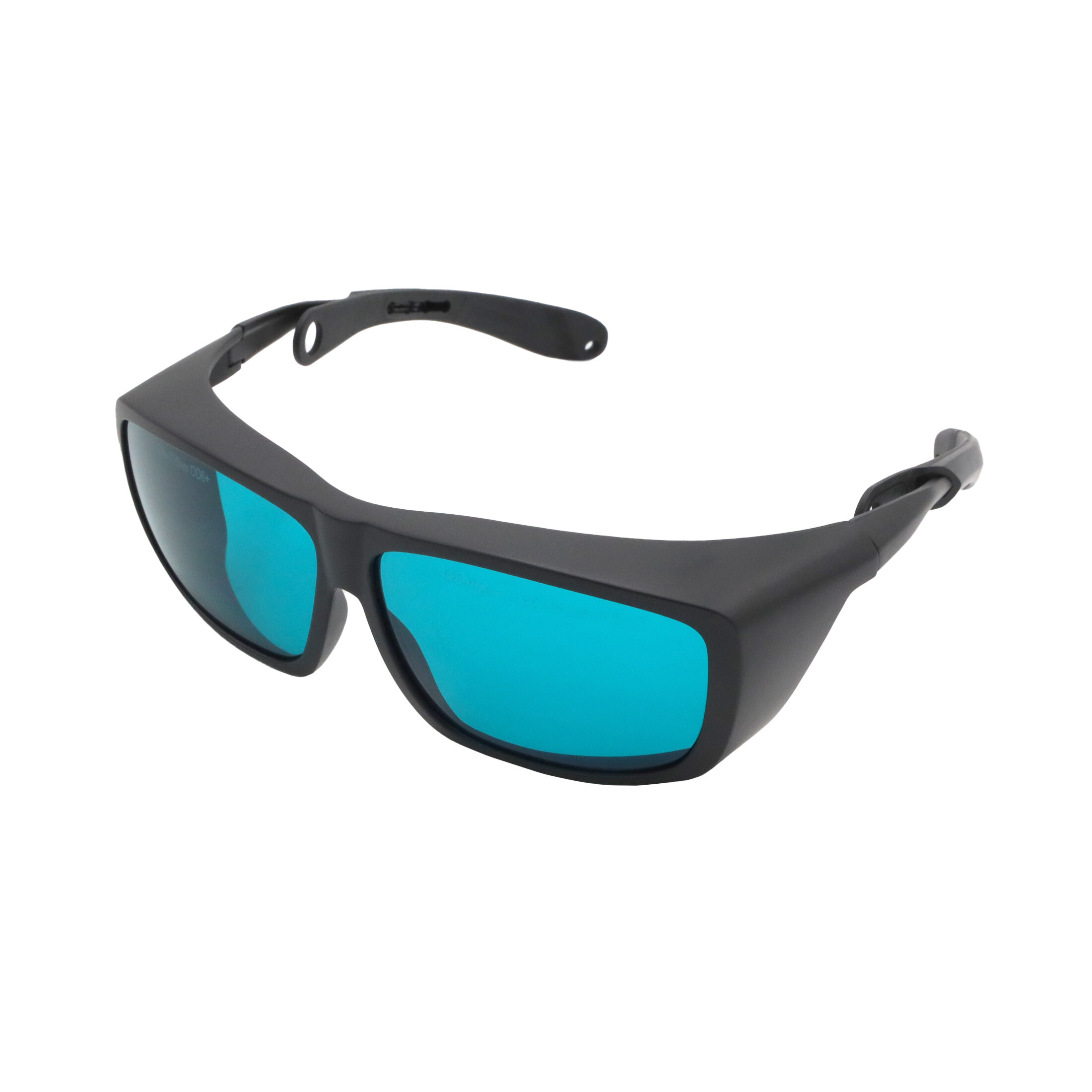

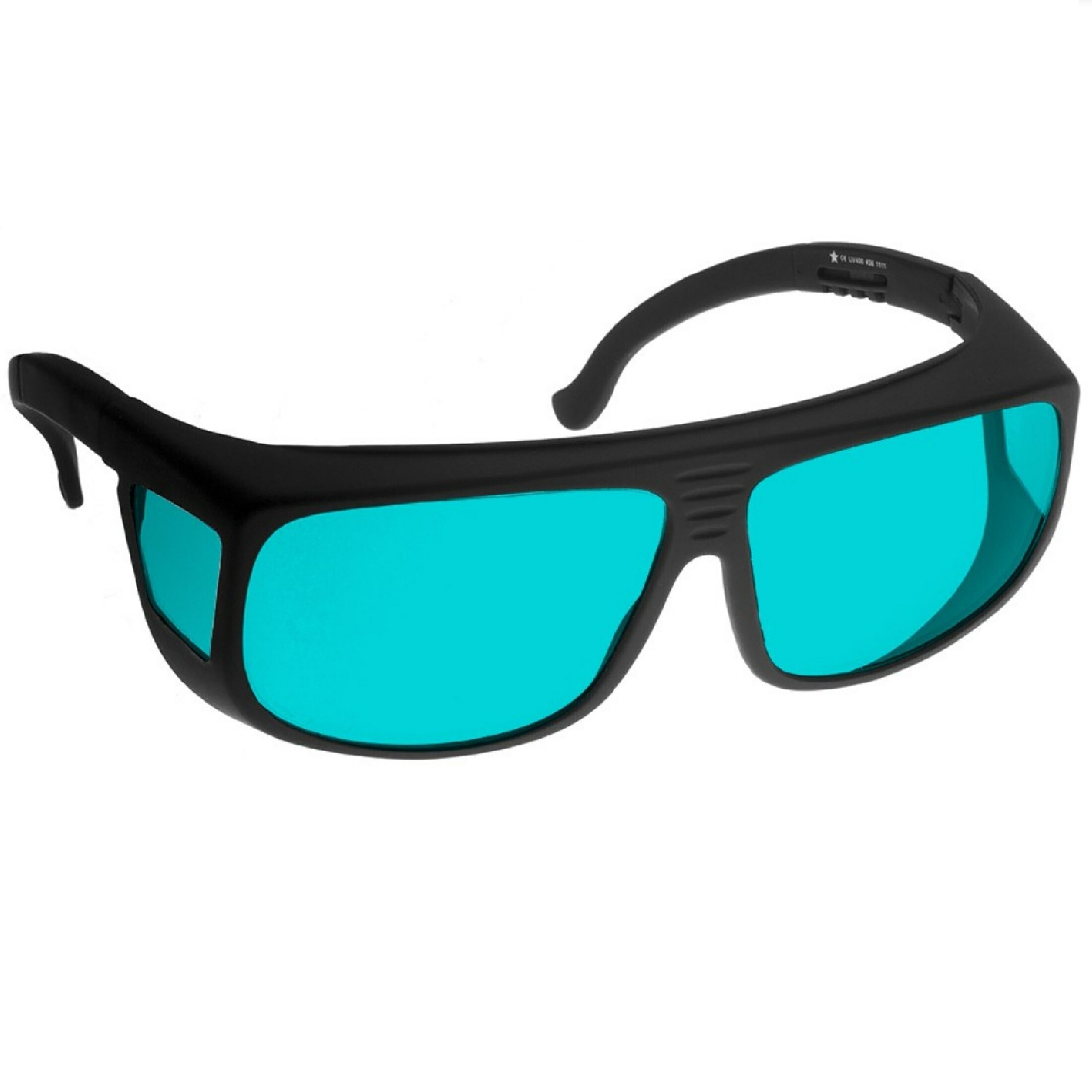

Lens Color: Aqua
Mechanical Parameters
Size: 145x144x50 mm
Material: Polymer
Housing Color: black
Weight: 10 g
Matching articles
LFD650-10-3(11x25)Diodenlaser Lasermodul Punktlaser rot 650nm 10mW 3VDC Fokus einstellbar Messinggehäuse 11x25mm
LFD635-1-3(8x23)Dot laser, red, 635 nm, 1 mW, 3 V DC, Ø8x23 mm, Laser Class 2, Focus collimated, Cable length 100 mm
LFD635-5-3(8x23)Laser Lasermodul Punktlaser rot 635nm 5mW 3VDC 8x23mm
LFD650-1-3(8x23)Diodenlaser Lasermodul Punktlaser rot 650nm 1mW 3VDC Messinggehäuse 8x23mm
LFD650-5-3(8x23)Laser Lasermodul Punktlaser rot 650nm 5mW 3VDC 8x23mm
LFD650-10-3(8x23)Laser Lasermodul Punktlaser rot 650nm 10mW 3VDC Messinggehäuse 8x23mm
LFD650-1-12(9x20)Laser Lasermodul Punktlaser rot 650nm 1mW 3-12VDC
LFD650-5-12(9x20)Dot laser, red, 650 nm, 3.5 mW, 3 V DC, Ø9x20 mm, Laser Class 3R, Focus collimated, Cable length 100 mm
LFC650-5-12(9x20)45Kreuzlaser Kreuz Laser rot 650nm 5mW 45° 3-12VDC
LFL650-5-12(9x20)90Laserfuchs linelaser, red, 650nm, 90°, 3-12V DC, Ø9x20 mm, focus 1m, class 1
LFD650-1-3(12x30.5)Laser Lasermodul Punktlaser rot 650nm 1mW 3VDC Fokus einstellbar 12x30,5mm
LFD650-5-3(12x30.5)Diodenlaser Punktlaser 650nm 5mW 3VDC Fokus einstellbar 12x30,5mm
LFD635-1-3(12x30.5)Dot laser, red, 635 nm, 1 mW, 3 V DC, Ø12x30.5 mm, Laser Class 2, Focus adjustable, Cable length 90 mm
LFD635-5-3(12x30.5)Laser Lasermodul Punktlaser rot 635nm 5mW 3VDC Fokus einstellbar 12x30,5mm
LFD650-1-3(12x32)Dot laser, red, 650 nm, 1 mW, 3 V DC, Ø12x32 mm, Laser Class 2, Focus fixed (5.0m)
LFD650-5-3(12x32)Laserdiode Lasermodul Punktlaser rot 650nm 5mW 3VDC
LFL650-5-4.5(15x67)90Positionierlaser Linienlaser Strichlaser rot 650nm 5mW 90° incl. Batterie
LFL650-5-4.5(15x67)60Positionierlaser Linienlaser Strichlaser rot 650nm 5mW 60° incl. Batterie
LFL650-5-12(9x20)60Laserfuchs linelaser, red, 650nm, 60°, 3-12V DC, Ø9x20 mm, focus 1m, class 1
LFD650-1-4.5(15x67)Punktlaser Lasermodul rot 650nm 1mW incl. Batterie
LFL650-5(12x45)90-NTLaserfuchs Linelaser red, 635nm, 90°, 5V DC, Ø12x45 mm, Focus 1m, class 1, power supply included
LFL650-5(12x45)60-NTLaserfuchs Linelaser red, 650nm, 60°, 5V DC, Ø12x45 mm, Focus 1m, class 1, power supply included
LFC650-5(12x45)45-NTLaserfuchs Crosslaser red, 650nm, 45°, 5V DC, Ø12x45 mm, Focus 1m, class 1, power supply included
LFL650-5-12(10x22)90Laserfuchs Linelaser red, 650nm, 1mW, 90°, 3-12V DC, Ø10x22 mm, Focus 1m, class 1
LFC650-5-12(10x22)45Laserfuchs crosslaser, red, 650nm, 45°, 3-12V, Ø10x22 mm, class 1
LFD650-1-12(10x22)Laser Lasermodul Punktlaser rot 650nm 1mW 3-12V DC 10x22mm
LFL650-5(12x45)90-F250-NTPositionierlaser Linienlaser rot 90° 650nm 5mW incl. Netzteil, Fokus 250mm
LFL635-5-6(10x22)90-2000h-C600Line laser, red, 635 nm, 90 °, 5 mW, Ø10x22 mm, Laser Class 1, Focus fixed (1000mm), Cable length 600 mm
LFD650-1(12x45)-NTPositionierlaser Punktlaser rot 650nm 1mW incl. Netzteil
LFD650-1-4.5(15x67)-F1000Dot laser, red, 650 nm, 1 mW, Ø15x67 mm, Laser Class 2, Focus fixed (1000mm)
LFL650-5-4.5(15x67)90-F250Linienlaser Strichlaser rot 650nm 5mW 90° incl. Batterie Fokus 250mm
LFL635-5-6(9x20)60Line laser, red, 635 nm, 60 °, 5 mW, Ø9x20 mm, Laser Class 1, Focus fixed (1000mm), Cable length 100 mm
LFD650-0.4-12(9x20)Laser Lasermodul Punktlaser rot 650nm 0,4mW 3-12VDC
LFD650-0.4-12(10x22)Laser Lasermodul Punktlaser rot 650nm 0,4mW 3-12VDC Messingehäuse 10x22mm
LFL635-5(12x45)60-NTLaserfuchs Linelaser red, 635nm, 60°, 5V DC, Ø12x45 mm, Focus 1m, class 1, power supply included
LFL635-5(12x45)90-NTLaserfuchs Linelaser red, 635nm, 90°, 5V DC, Ø12x45 mm, Focus 1m, class 1, power supply included
LFC635-5(12x45)45-NTLaserfuchs Crosslaser red, 635nm, 45°, 5V DC, Ø12x45 mm, Focus 1m, class 1, power supply included
LFC650-5-4.5(15x67)45Kreuzlaser Kreuz Laser rot 650nm 5mW 45° incl. Batterie
DOE-QD635-5-6(10x22)-ADJDot laser, red, 635 nm, 3.5 mW, 6 V DC, Ø10x22 mm, Laser Class 3R, Focus adjustable, Cable length 100 mm
LFC635-5-6(9x20)45-F100Kreuzlaser Kreuz Laser rot 635nm 5mW 45° 3-6VDC Fokus 100mm
DOE-QD650-1-12(10x22)-ADJDot laser, red, 650 nm, 0.75 mW, 3 V DC, Ø10x22 mm, Laser Class 2, Focus adjustable, Cable length 100 mm
LFC650-5-12(9x20)45-F100Laserfuchs crosslaser, red, 650nm, 45°, 3-12V DC, Ø9x20 mm, focus 100mm, class 1
LFD635-1-6(9x20)Dot laser, red, 635 nm, 0.75 mW, 3 V DC, Ø9x20 mm, Laser Class 2, Focus collimated, Cable length 100 mm
LFC635-5(12x45)45-F100-NTLaserfuchs Crosslaser red, 635nm, 45°, 5V DC, Ø12x45 mm, Focus 0,1m, class 2M, power supply included
LFL650-16-3(16x90)-NTLaserfuchs Linelaser red, 650nm, 90°, 3V DC, Ø16x90 mm, Focus 3m, class 2, power supply included
LFC650-1-12(9x20)45-F100-C220Cross laser, red, 650 nm, 45 °, 0.75 mW, 3 V DC, Ø9x20 mm, Laser Class 1, Focus fixed (100mm), Cable length 220 mm
LFD635-1-6(10x22)Dot laser, red, 635 nm, 0.75 mW, 3 V DC, Ø10x22 mm, Laser Class 2, Focus collimated, Cable length 100 mm
LFL635-10-3(9x25)4DEGLine laser, red, 635 nm, 4 °, 10 mW, 3 V DC, Ø9x25 mm, Laser Class 3R, Focus fixed (3000mm), Cable length 100 mm
LFL650-5-12(9x20)90-F250Laserfuchs linelaser, red, 650nm, 90°, 3-12V DC, Ø9x20 mm, focus 250mm, class 1
LFL650-5-3(9x25)4DEGLinienlaser Strichlaser rot 650nm 5mW 4° 3VDC Messinggehäuse 9x25mmBuy PICO-LPG-635-660 on Amazon
Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. The laser safety goggles certified to the valid standard DIN EN 207 (full protection) comply with the legal regulations and protect the eyes against dangerous laser radiation. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam.
● Wavelength: 630-711nm, lb rating DIR LB5
● Wavelength: 648-708nm, lb rating D LB5 + IR LB6
● Wavelength: 651-704nm, lb rating D LB5 + IR LB7
● Wavelength: 654-699nm, lb rating D LB5 + IR LB8
● Wavelength: 712-713nm, lb rating DIR LB4
● Wavelength: 714-717nm, lb rating DIR LB3
Especially suitable for: Laser RED 635nm, RED 650nm and
RED 660nm
For laserwelding, lasercutting, lasermarking, laserengraving, research and development or cosmetic applications (Please note the wavelengthrange!)
Complete protection
Comfortable fit over glasses or alone
Adjustable
CE Certified EN 207
With Picotronic Logo imprint
complete protection, CE Certified
universal, comfortable fit over prescription glasses or alone, adjustable
● Wavelength: 630-711nm, lb rating DIR LB5 ● Wavelength: 648-708nm, lb rating D LB5 + IR LB6 ● Wavelength: 651-704nm, lb rating D LB5 + IR LB7 ● Wavelength: 654-699nm, lb rating D LB5 + IR LB8
● Wavelength: 654-699nm, lb rating D LB5 + IR LB8 ● Wavelength: 712-713nm, lb rating DIR LB4 ● Wavelength: 714-717nm, lb rating DIR LB3
Especially suitable for: Laser RED 635nm, RED 650nm and RED 660nm
Main Data
EAN: 4055132018580
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 630-711 DIR LB5, 648-708 D LB5 + IR LB6, 651-704 D LB5 + IR LB7, 654-699 D LB5 + IR LB8, 712-713 DIR LB4, 714-717 DIR LB3

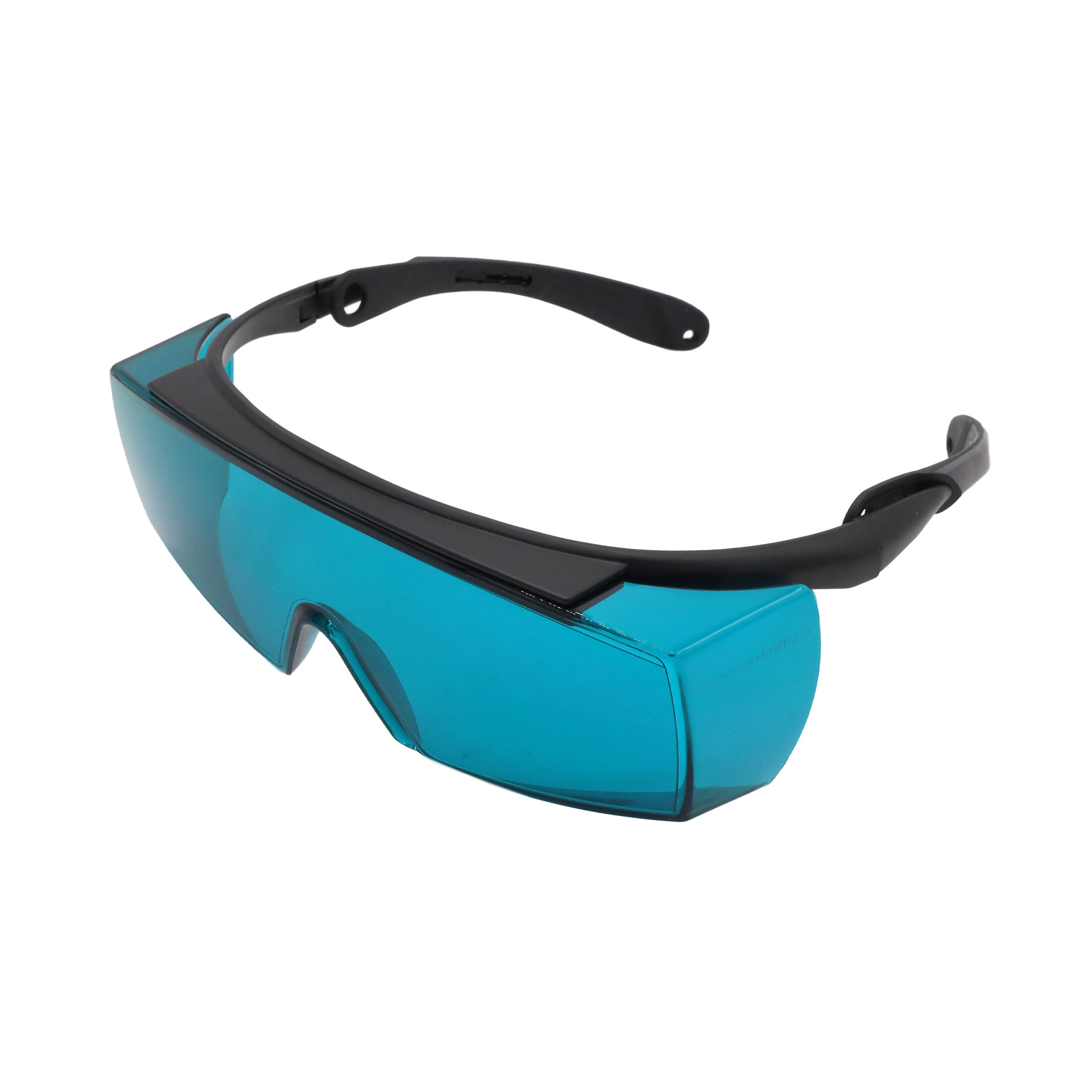

Lens Color: Aqua
Mechanical Parameters
Material: Polymer
Housing Color: black
Weight: 10 g
Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. The laser safety goggles certified to the valid standard DIN EN 207 (full protection) comply with the legal regulations and protect the eyes against dangerous laser radiation. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam.
● Wavelength: 180-315nm, lb rating D LB6 + R LB4
● Wavelength: >315-400nm, lb rating DR LB4
● Wavelength: >615-660nm, lb rating DIR LB3
● Wavelength: >660-665nm, lb rating DIR LB4
● Wavelength: >665-715nm, lb rating D LB4 + IR LB5
● Wavelength: 694nm, lb rating IR LB7
Especially suitable for: Laser UV 180nm and RED 660nm
For laserwelding, lasercutting, lasermarking, laserengraving, research and development and cosmetic applications (Please note the wavelengthrange!)
Complete protection
Comfortable fit over glasses or alone
Adjustable temples and Side-shields for wide field of view
CE Certified EN 207
With Picotronic Logo imprint
complete protection, CE Certified
universal fit, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view
● Wavelength: 180-315nm, lb rating D LB6 + R LB4 ● Wavelength: >315-400nm, lb rating DR LB4 ● Wavelength: >615-660nm, lb rating DIR LB3
● Wavelength: >660-665nm, lb rating DIR LB4 ● Wavelength: >665-715nm, lb rating D LB4 + IR LB5 ● Wavelength: 694nm, lb rating IR LB7
Especially suitable for: Laser UV 180nm and RED 660nm
Main Data
EAN: 4055132018559
Warranty: 1 years
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 180-315 D LB6 + R LB4, >315-400 DR LB4, >615-660 DIR LB3, >660-665 DIR LB4, >665-715 D LB4 + IR LB5, 694 IR LB7
Lens Color: Blaugrün
Mechanical Parameters
Size: 145x144x50 mm
Material: Polymer
Housing Color: black
Weight: 10 g
Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. The laser safety goggles certified to the valid standard DIN EN 207 (full protection) comply with the legal regulations and protect the eyes against dangerous laser radiation. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam.
● Wavelength: 180-315nm, lb rating D LB6 + R LB4
● Wavelength: >315-400nm, lb rating DR LB4
● Wavelength: >615-660nm, lb rating DIR LB3
● Wavelength: >660-665nm, lb rating DIR LB4
● Wavelength: >665-715nm, lb rating D LB4 + IR LB5
● Wavelength: 694nm, lb rating IR LB7
Especially suitable for: Laser UV 180nm and RED 660nm
For laserwelding, lasercutting, lasermarking, laserengraving, research and development and cosmetic applications (Please note the wavelengthrange!)
Complete protection
Comfortable fit over glasses or alone
Adjustable temples and Side-shields for wide field of view
CE Certified EN 207
With Picotronic Logo imprint
complete protection, CE Certified
universal fit, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view
● Wavelength: 180-315nm, lb rating D LB6 + R LB4 ● Wavelength: >315-400nm, lb rating DR LB4 ● Wavelength: >615-660nm, lb rating DIR LB3
● Wavelength: >660-665nm, lb rating DIR LB4 ● Wavelength: >665-715nm, lb rating D LB4 + IR LB5 ● Wavelength: 694nm, lb rating IR LB7
Especially suitable for: Laser UV 180nm and RED 660nm
Main Data
EAN: 4055132003364
Warranty: 1 years
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 180-315 D LB6 + R LB4, >315-400 DR LB4, >615-660 DIR LB3, >660-665 DIR LB4, >665-715 D LB4 + IR LB5, 694 IR LB7
Lens Color: Blaugrün
Mechanical Parameters
Size: 145x144x50 mm
Material: Polymer
Housing Color: black
Weight: 10 g
Buy PICO-LPG-660 on Amazon
Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. The laser safety goggles certified to the valid standard DIN EN 207 (full protection) comply with the legal regulations and protect the eyes against dangerous laser radiation. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam.
● Wellenlänge: 180-315nm, Schutzstufen D LB7 + IR LB4
● Wellenlänge: 750-800nm + >1100-1120nm, Schutzstufen DIR LB6 + M LB6Y
● Wellenlänge: 800-1100nm, Schutzstufen D LB6 + IR LB7 + M LB7Y
Especially suitable for: Laser INFRARED 780nm,
INFRARED 850nm, INFRARED 905nm und INFRARED 1064nm
For laserwelding, lasercutting, lasermarking, laserengraving, research and development and cosmetic applications (Please note the wavelengthrange!)
Complete protection
Comfortable fit over glasses or alone
Adjustable temples and Side-shields for wide field of view
CE Certified EN 207
With Picotronic Logo imprint
complete protection, CE Certified
universal, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view
● Wavelength: 190-315nm, lb rating D LB6 + R LB4
● Wavelength: >315–390, lb rating D LB2 + R LB4
● Wavelength: 560–950nm, lb rating DIR LB1
● Wavelength: 860–1400nm, lb rating D LB4 + I LB5
● Wavelength: >950–1070nm, lb rating D LB5 + I LB6
Especially suitable for: Laser INFRARED 950nm, INFRARED 1064nm
Main Data
EAN: 4055132015756
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 190-315 D LB6 + R LB4
315-390 D LB2 + R LB4
560-950 DIR LB1
860-1400 D LB4 + I LB5
950-1070 D LB5 + I LB6
1400-1500 DI LB3
Lens Color: Grün
Mechanical Parameters
Size: 145x144x50 mm
Material: Polymer
Housing Color: black
Weight: 10 g
Buy PICO-LPG-650-1064 on Amazon
Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. The laser safety goggles certified to the valid standard DIN EN 207 (full protection) comply with the legal regulations and protect the eyes against dangerous laser radiation. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam.
● Wellenlänge: 180-315nm, Schutzstufen D LB7 + IR LB4
● Wellenlänge: 750-800nm + >1100-1120nm, Schutzstufen DIR LB6 + M LB6Y
● Wellenlänge: 800-1100nm, Schutzstufen D LB6 + IR LB7 + M LB7Y
Especially suitable for: Laser INFRARED 780nm,
INFRARED 850nm, INFRARED 905nm und INFRARED 1064nm
For laserwelding, lasercutting, lasermarking, laserengraving, research and development and cosmetic applications (Please note the wavelengthrange!)
Complete protection
Comfortable fit over glasses or alone
Adjustable temples and Side-shields for wide field of view
CE Certified EN 207
With Picotronic Logo imprint
complete protection, CE Certified
universal, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view
● Wellenlänge: 750-800nm + >1100-1120nm, Schutzstufen DIR LB6 + M LB6Y
● Wellenlänge: 800-1100nm, Schutzstufen D LB6 + IR LB7 + M LB7Y
Especially suitable for: Laser INFRARED 780nm, INFRARED 850nm, INFRARED 905nm und INFRARED 1064nm
Main Data
EAN: 4055132016593
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 180-315 D LB7 + IR LB4
750-800 + >1100-1120 DIR LB6 + M LB6Y
800-1100 D LB6 + IR LB7 + M LB7Y
Lens Color: Grün
Mechanical Parameters
Size: 145x144x50 mm
Material: Polymer
Housing Color: black
Weight: 10 g

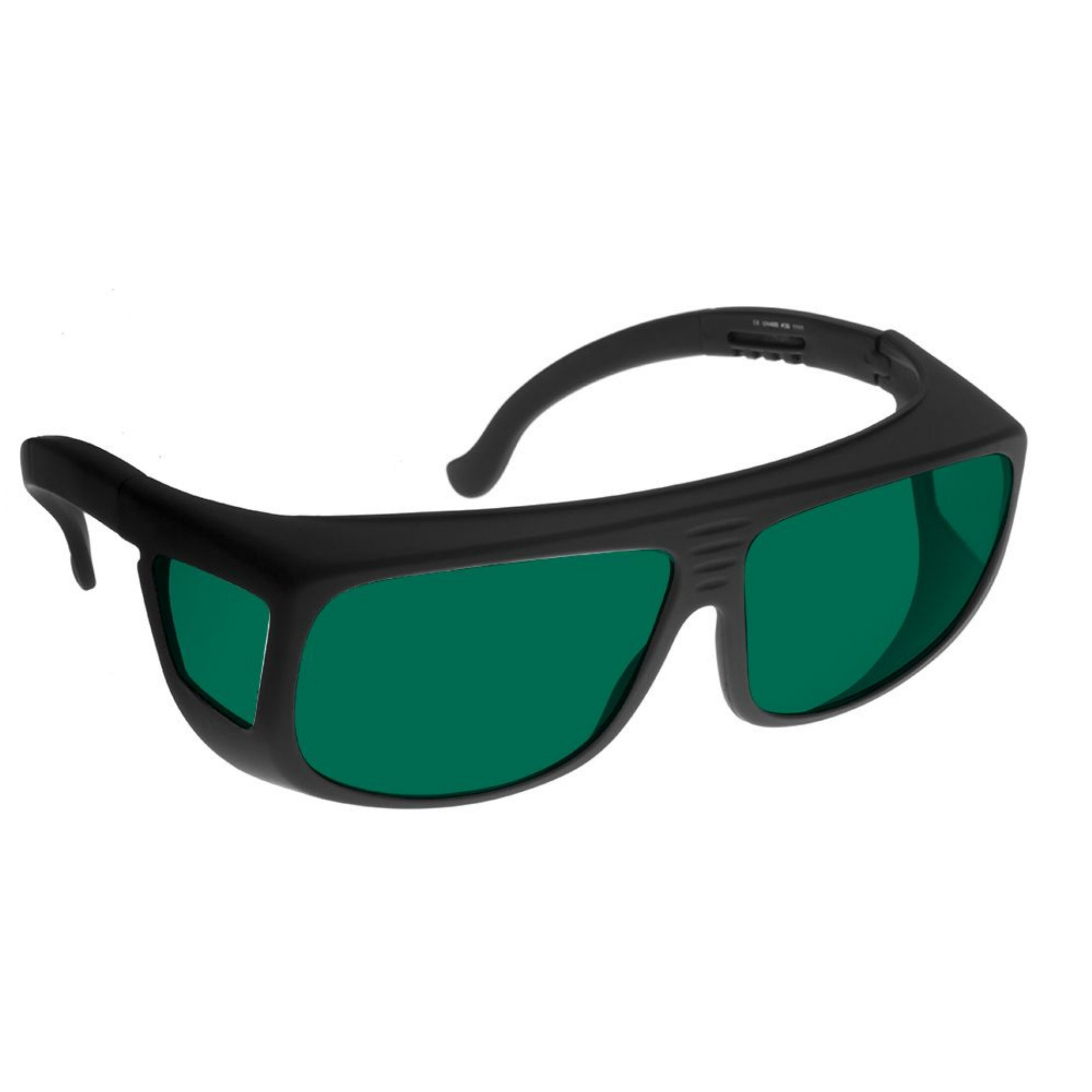

Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. The laser safety goggles certified to the valid standard DIN EN 207 (full protection) comply with the legal regulations and protect the eyes against dangerous laser radiation. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam.
● Wavelength: 190-315nm, lb rating D LB8 + IR LB4
● Wavelength: >315-420nm, lb rating DIR LB5
● Wavelength: >420-445nm, lb rating DIR LB4
● Wavelength: 765-1100nm, lb rating DIRM LB5
● Wavelength: 775-1085nm, lb rating D LB5 + IRM LB6
● Wavelength: 790-1080nm, lb rating D LB6 + IRM LB7
● Wavelength: 950-1085nm, lb rating DIRM LB6
Especially suitable for: Laser INFRARED 780nm,
INFRARED 850nm, INFRARED 905nm und INFRARED 1064nm
For laserwelding, lasercutting, lasermarking, laserengraving, research and development and cosmetic applications (Please note the wavelengthrange!)
Complete protection
Comfortable fit over glasses or alone
Adjustable temples and Side-shields for wide field of view
CE Certified EN 207
With Picotronic Logo imprint
complete protection, CE Certified
universal, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view
● Wavelength: 190-315nm, lb rating D LB8 + IR LB4 ● Wavelength: >315-420nm, lb rating DIR LB5 ● Wavelength: >420-445nm, lb rating DIR LB4 ● Wavelength: 765-1100nm, lb rating DIRM LB5
● Wavelength: 775-1085nm, lb rating D LB5 + IRM LB6 ● Wavelength: 790-1080nm, lb rating D LB6 + IRM LB7 ● Wavelength: 950-1085nm, lb rating DIRM LB6
Especially suitable for: Laser INFRARED 780nm, INFRARED 850nm, INFRARED 905nm und INFRARED 1064nm
Main Data
EAN: 4055132003340
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 190-315 D LB8 + IR LB4
315-420 DIR LB5
420-445 DIR LB4
765-1100 DIRM LB5
775-1085 D LB5 + IRM LB6
790-1080 D LB6 + IRM LB7
950-1085 DIRM LB6
Lens Color: Grün
Mechanical Parameters
Size: 145x144x50 mm
Material: Polymer
Housing Color: black
Weight: 10 g
Matching articles
LFD780-1-3(8x23)Laser Lasermodul Punktlaser infrarot 780nm 1mW 3VDC Messinggehäuse 8x23mm
LFD780-5-3(8x23)Laser Lasermodul Punktlaser infrarot 780nm 5mW 3VDC 8x23mm
LFT808-200-3(19x22)Expander Laser, infrared, 808 nm, 40 °, 200 mW, 3 V DC, Ø19x22 mm, Laser Class 3B, Focus fixed (500mm), Cable length 170 mmBuy PICO-LPG-780-1064 on Amazon

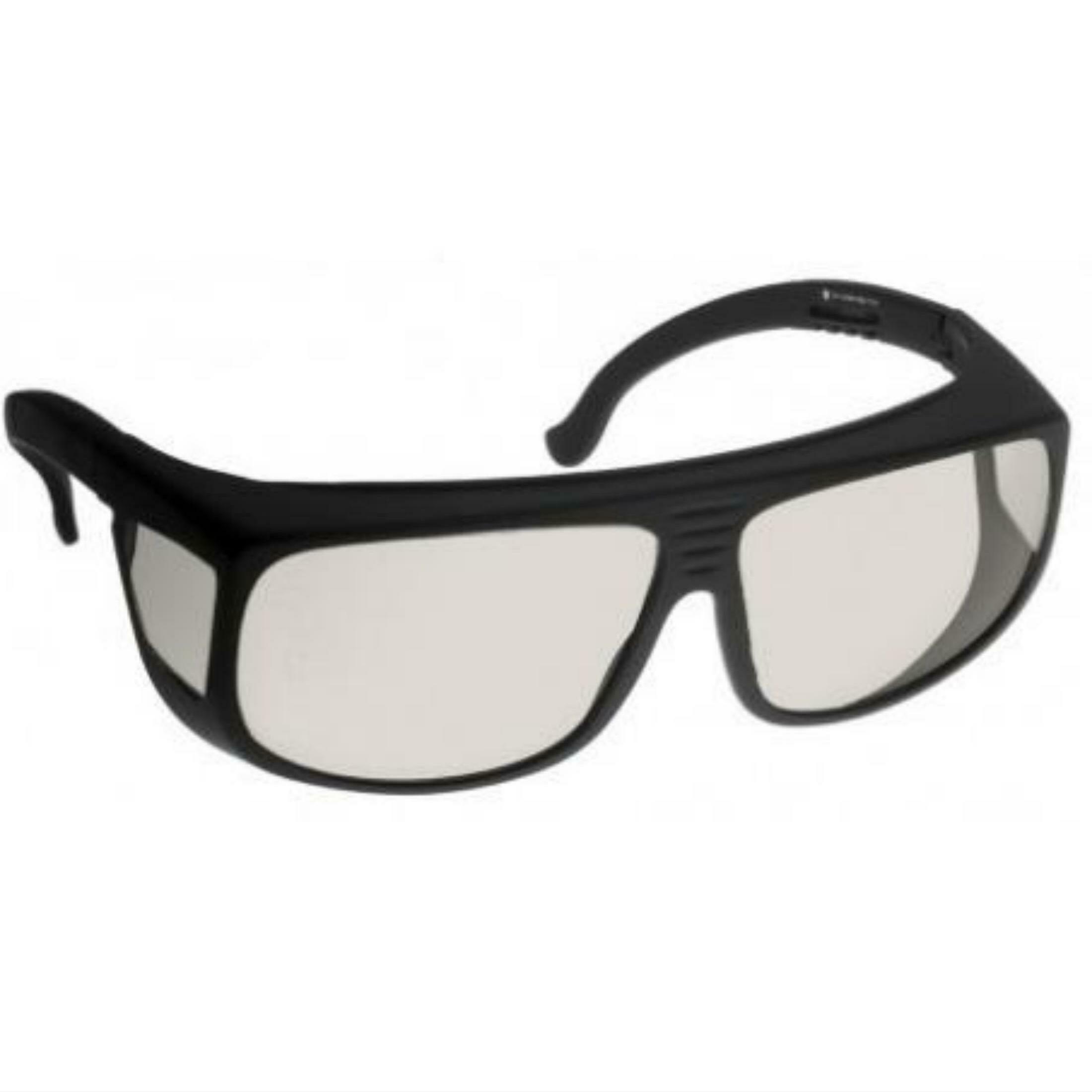

Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. The laser safety goggles certified to the valid standard DIN EN 207 (full protection) comply with the legal regulations and protect the eyes against dangerous laser radiation. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam.
● Wavelength: 190-315nm, lb rating D LB8 + IR LB3 ● Wavelength: 775-795nm, lb rating DIR LB4 ● Wavelength: 820-1750nm, lb rating D LB5 + IR LB6
Especially suitable for: Laser INFRARED 850nm - 1750nm
For laserwelding, lasercutting, lasermarking, laserengraving, research and development and cosmetic applications (Please note the wavelengthrange!)
Complete protection
Comfortable fit over glasses or alone
Adjustable temples and Side-shields for wide field of view
CE Certified EN 207
With Picotronic Logo imprint
complete protection, CE Certified
universal, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view
Wavelength: 775-795nm, lb rating DIR LB4
Wavelength: 820-1750nm, lb rating D LB5 + IR LB6
Especially suitable for: Laser INFRARED 850nm - 1750nm
Main Data
EAN: 4055132018566
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 190-315 D LB8 + IR LB3
315-480 D LB5 + IR LB6
775-795 DIR LB4
795-820 DIR LB5
820-1400 D LB5 + IR LB6
1400-1880 DIR LB2
Lens Color: Grün
Mechanical Parameters
Size: 145x144x50 mm
Material: Polymer
Housing Color: black
Weight: 10 g
Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. The laser safety goggles certified to the valid standard DIN EN 207 (full protection) comply with the legal regulations and protect the eyes against dangerous laser radiation. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam.
Wavelength: 180-315nm, lb rating D LB7 + IR LB4
Wavelength: >315-532nm, lb rating DIRM LB6
Especially suitable for: Laser BLUE 405nm, BLUE 445nm, BLUE 450, GREEN 520nm und GREEN 532nm
For laserwelding, lasercutting, lasermarking, laserengraving, research and development and cosmetic applications (Please note the wavelengthrange!)
Complete protection
Comfortable fit over glasses or alone
Adjustable temples and side-shields for wide field of view
CE Certified EN 207
With Picotronic Logo imprint
complete protection
universal fit, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view
CE Certified
Wavelength: 180-315nm, lb rating D LB7 + IR LB4 Wavelength: >315-532nm, lb rating DIRM LB6
Especially suitable for: Laser BLUE 405nm, BLUE 445nm, BLUE 450, GREEN 520nm und GREEN 532nm
Main Data
EAN: 4055132018627
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 190-534 6+, 620-650 1.5+, 625-647 2.5+, 632-642 3.5+
Lens Color: Blue
Mechanical Parameters
Size: 145x144x50 mm
Material: Polymer
Housing Color: black
Weight: 10 g
Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. The laser safety goggles certified to the valid standard DIN EN 207 (full protection) comply with the legal regulations and protect the eyes against dangerous laser radiation. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam.
● Wavelength: 190-315nm, lb rating D LB8 + IR LB4
● Wavelength: >315-420nm, lb rating DIR LB5
● Wavelength: >420-445nm, lb rating DIR LB4
● Wavelength: 765-1100nm, lb rating DIRM LB5
● Wavelength: 775-1085nm, lb rating D LB5 + IRM LB6
● Wavelength: 790-1080nm, lb rating D LB6 + IRM LB7
● Wavelength: 950-1085nm, lb rating DIRM LB6
Especially suitable for: Laser INFRARED 780nm,
INFRARED 850nm, INFRARED 905nm und INFRARED 1064nm
For laserwelding, lasercutting, lasermarking, laserengraving, research and development and cosmetic applications (Please note the wavelengthrange!)
Complete protection
Comfortable fit over glasses or alone
Adjustable temples and Side-shields for wide field of view
CE Certified EN 207
With Picotronic Logo imprint
complete protection, CE Certified
universal, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view
● Wavelength: 190-315nm, lb rating D LB8 + IR LB4 ● Wavelength: >315-420nm, lb rating DIR LB5 ● Wavelength: >420-445nm, lb rating DIR LB4 ● Wavelength: 765-1100nm, lb rating DIRM LB5
● Wavelength: 775-1085nm, lb rating D LB5 + IRM LB6 ● Wavelength: 790-1080nm, lb rating D LB6 + IRM LB7 ● Wavelength: 950-1085nm, lb rating DIRM LB6
Especially suitable for: Laser INFRARED 780nm, INFRARED 850nm, INFRARED 905nm und INFRARED 1064nm
Main Data
EAN: 4055132013936
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 190-315 D LB8 + IR LB4
315-420 DIR LB5
420-445 DIR LB4
765-1100 DIRM LB5
775-1085 D LB5 + IRM LB6
790-1080 D LB6 + IRM LB7
950-1085 DIRM LB6
Lens Color: Grün
Mechanical Parameters
Size: 145x144x50 mm
Material: Polymer
Housing Color: black
Weight: 10 g
Buy PICO-LPG-MED-780-1064 on Amazon
Laser Safety Glasses Set, certified to DIN EN207, 180-1100nm. For laserwelding, lasercutting, lasermarking, laserengraving, cosmetic. Safe storage trough wall holder. Incl. hazard and mandatory signs
Four laser glasses for different wavelengths
Incl. wall holder
Stickers with mandatory and hazard sign
Laser-Safety-Package
Four certified Laser Safety Glasses according to DIN EN 207
incl. wall holder
incl. sickers for hazard and mandatory signs
For laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications
Main Data
EAN: 4055132013479
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -20°C - 40 °C
Storage Temperature: -50°C - 50 °C
Optical Parameters
LB Rating: 180-315 D LB7 + IR LB4, 315-532 DIRM LB6, 615-660 DIR LB3, 630-711 DIR LB5, 648-708 D LB5+IR LB6, 654-699 D LB5+IR LB8, 665-715 D LB4+IR LB5, 694 IR LB7, 720-1100 DIRM LB5, 775-1085 D LB5+IRM LB6, 790-1080 D LB6+IRM LB7, 950-1085 DIRM LB6
Lens Color: Aqua, Blaugrün, Grün, Orange
Mechanical Parameters
Material: Plastic
Weight: 500 g
Buy LASER-LPG-PACKAGE on Amazon

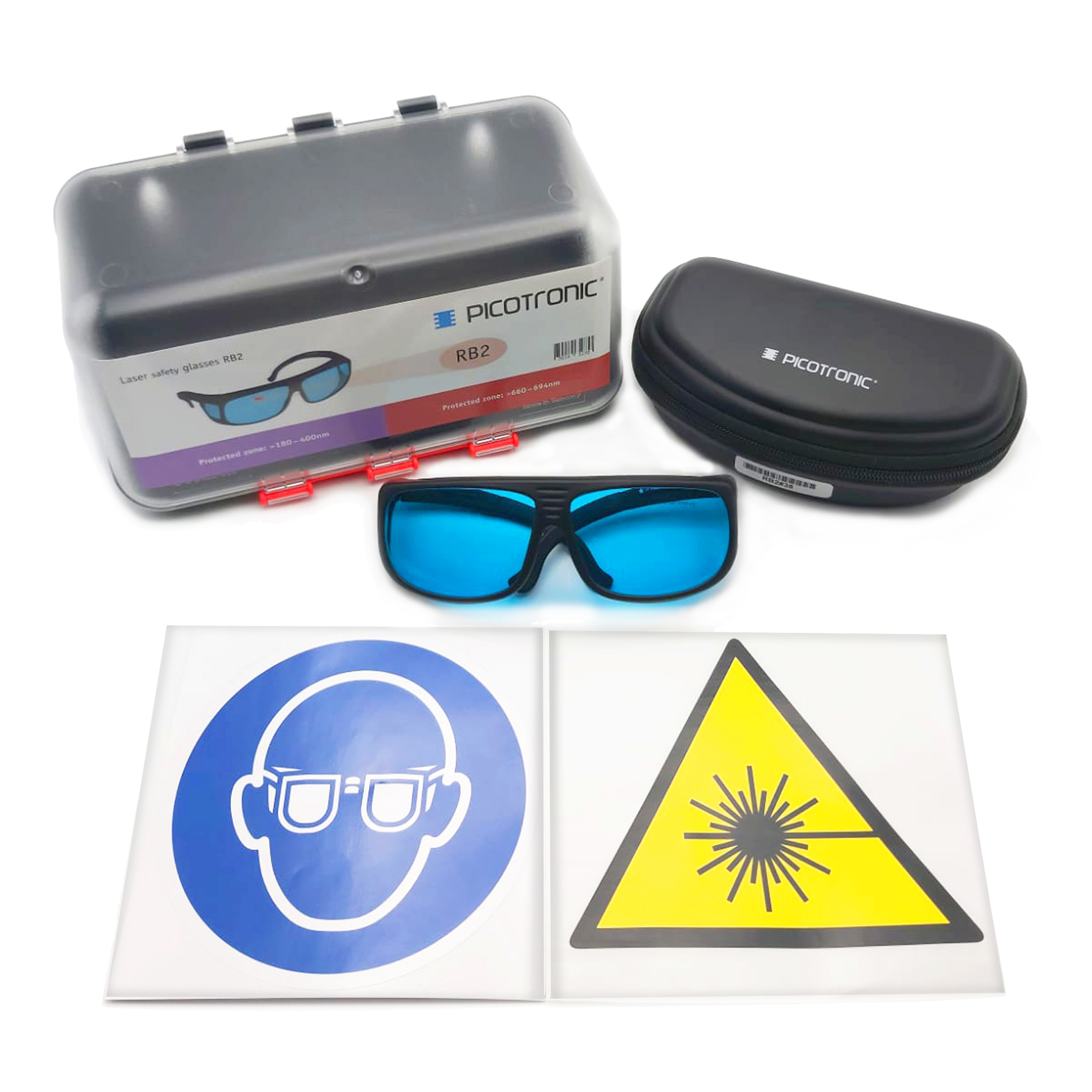

Laser Safety glasses set, certified to DIN EN207, 180-400nm. For laserwelding, lasercutting, lasermarking, laserengraving, cosmetic. Safe storage trough wall holder. Incl. hazard and mandatory signs
Laser glasses for ultraviolet and red wavelengths
Incl. wall holder
Stickers with mandatory and hazard sign
Zum Laserschweißen, Laserschneiden, Lasermarkieren, für kosmetische Anwendungen
certified Laser Safety Glasses according to DIN EN 207
incl. wall holder
incl. sickers for hazard and mandatory signs
For laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications
Main Data
EAN: 4055132013622
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -20°C - 40 °C
Storage Temperature: -50°C - 50 °C
Optical Parameters
LB Rating: 180-315 D LB6 + R LB4, >315-400 DR LB4, >615-660 DIR LB3, >660-665 DIR LB4, >665-715 D LB4 + IR LB5, 694 IR LB7
Lens Color: Blaugrün
Mechanical Parameters
Material: Plastic
Weight: 150 g
Buy PICO-LPG-660-BOX on Amazon
Laser Safety Glasses Set, certified to DIN EN207, 400-532nm. For laserwelding, lasercutting, lasermarking, laserengraving, cosmetic. Safe storage trough wall holder. Incl. hazard and mandatory signs
Laser glasses for blue and green wavelengths
Incl. wall holder
Stickers with mandatory and hazard sign
Laser-Safety-Package
certified Laser Safety Glasses according to DIN EN 207
incl. wall holder
incl. sickers for hazard and mandatory signs
For laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications
Main Data
EAN: 4055132013585
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -20°C - 40 °C
Storage Temperature: -50°C - 50 °C
Optical Parameters

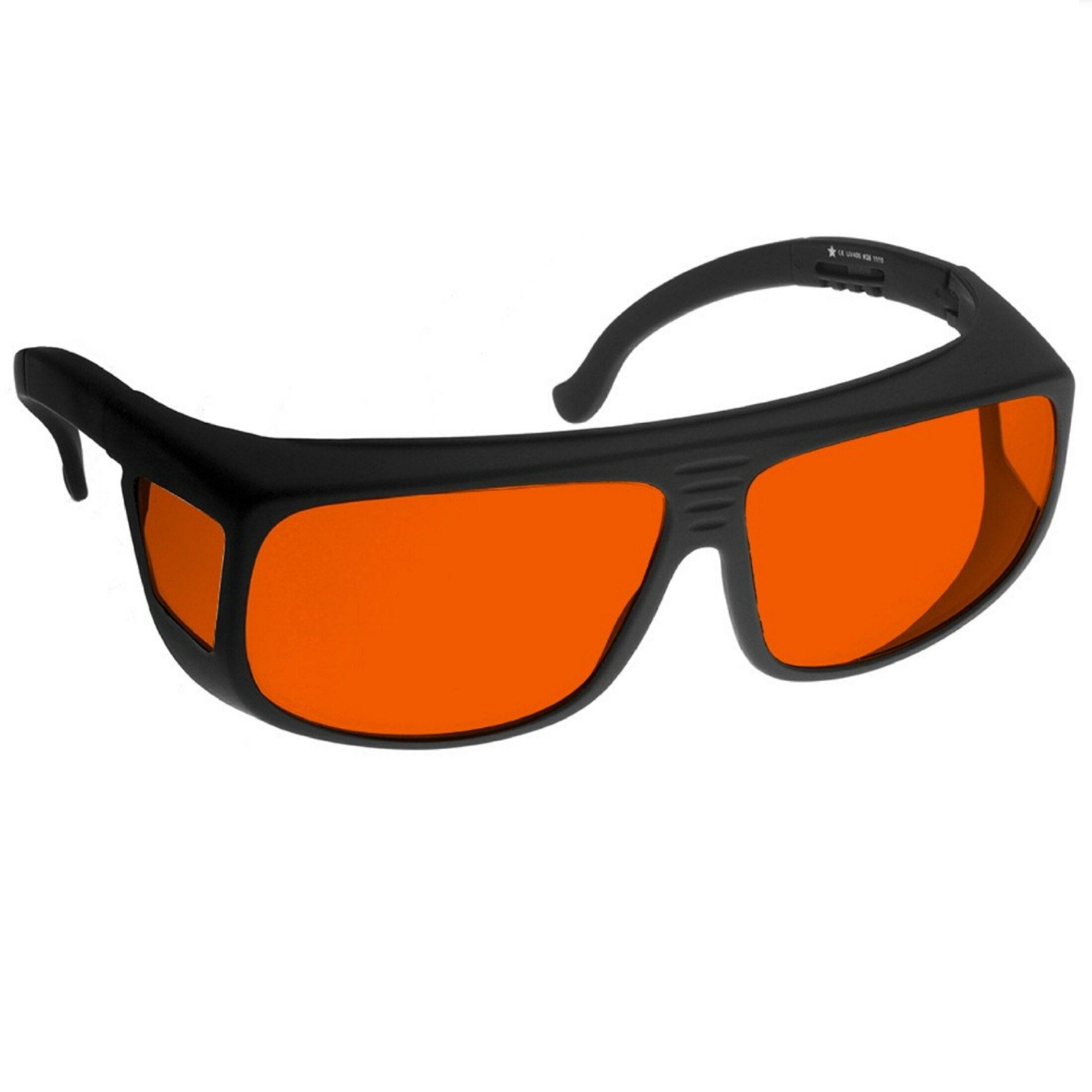

LB Rating: 180-315 D LB7 + IR LB4, >315-532 DIRM LB6
Lens Color: Orange
Mechanical Parameters
Material: Plastic
Weight: 150 g
Buy PICO-LPG-405-532-BOX on Amazon
Laser Safety Glasses Set, certified to DIN EN207, 630-700nm. For laserwelding, lasercutting, lasermarking, laserengraving, cosmetic. Safe storage trough wall holder. Incl. hazard and mandatory signs
Laser glasses for red wavelengths
Incl. wall holder
Stickers with mandatory and hazard sign
Laser-Safety-Package
certified Laser Safety Glasses according to DIN EN 207
incl. wall holder
incl. sickers for hazard and mandatory signs
For laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications
Main Data
EAN: 4055132013608
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -20°C - 40 °C
Storage Temperature: -50°C - 50 °C
Optical Parameters

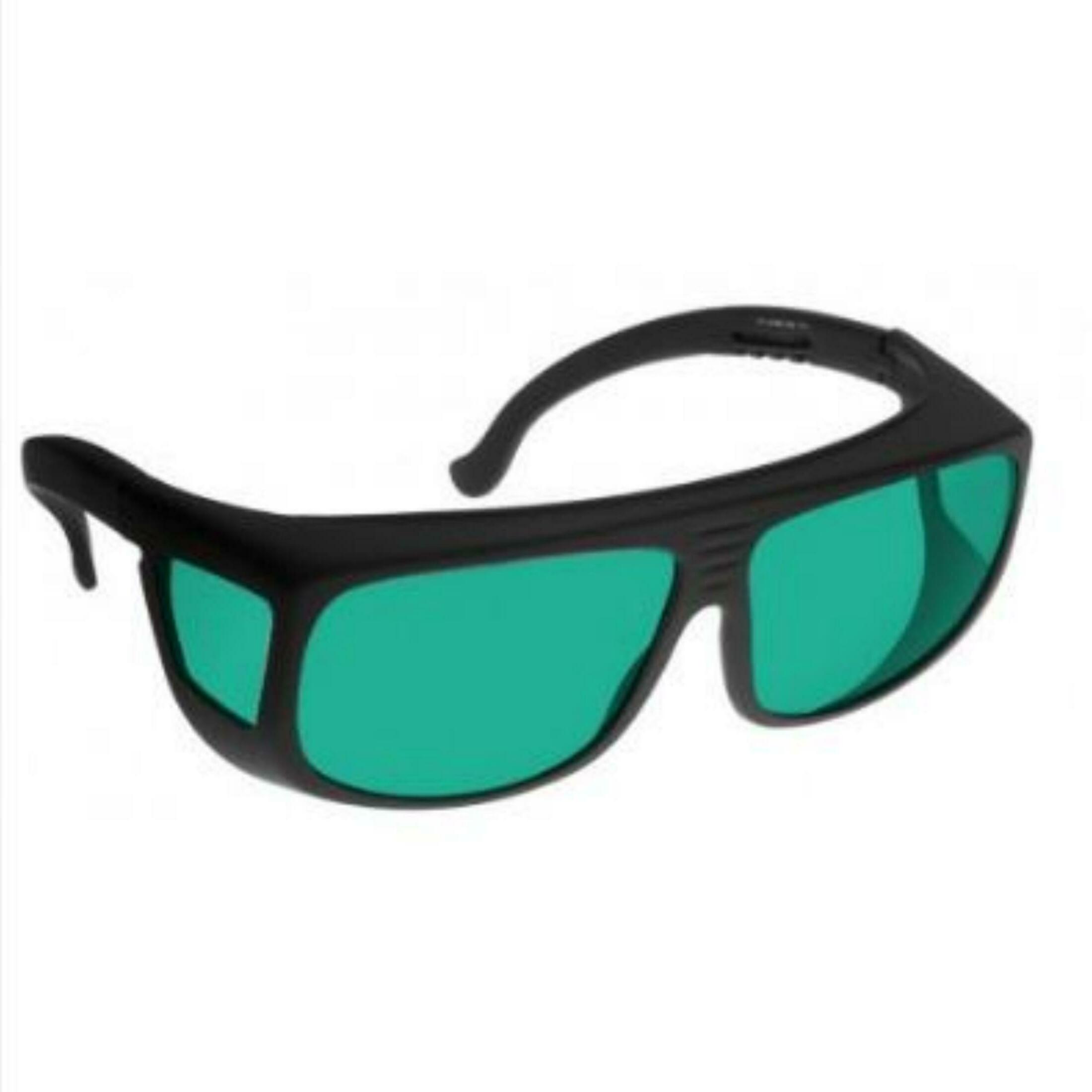

LB Rating: 630-711 DIR LB5, 648-708 D LB5 + IR LB6, 651-704 D LB5 + IR LB7, 654-699 D LB5 + IR LB8, 712-713 DIR LB4, 714-717 DIR LB3
Lens Color: Aqua
Mechanical Parameters
Material: Plastic
Weight: 150 g
Buy PICO-LPG-635-660-BOX on Amazon
Medical Laser Safety Glasses Set, certified to DIN EN207, infrared. For medical and cosmetic applications. Safe storage trough wall holder. Incl. hazard and mandatory signs
Laser glasses for infrared wavelengths
Incl. wall holder
Stickers with mandatory and hazard sign
Used for medical laser applications
Laser-Safety-Package
certified Laser Safety Glasses according to DIN EN 207
incl. wall holder
incl. sickers for hazard and mandatory signs
For medical and cosmetical applications (like in the denstistry, dermatology, laser hair removal)
Main Data
EAN: 4055132014346
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -20°C - 40 °C
Storage Temperature: -50°C - 50 °C
Optical Parameters
LB Rating: 190-315 D LB8 + IR LB4
315-420 DIR LB5
420-445 DIR LB4
765-1100 DIRM LB5
775-1085 D LB5 + IRM LB6
790-1080 D LB6 + IRM LB7
950-1085 DIRM LB6
Lens Color: Grün
Mechanical Parameters
Material: Plastic
Weight: 150 g
Buy PICO-LPG-780-1064-MEDICAL-BOX on Amazon

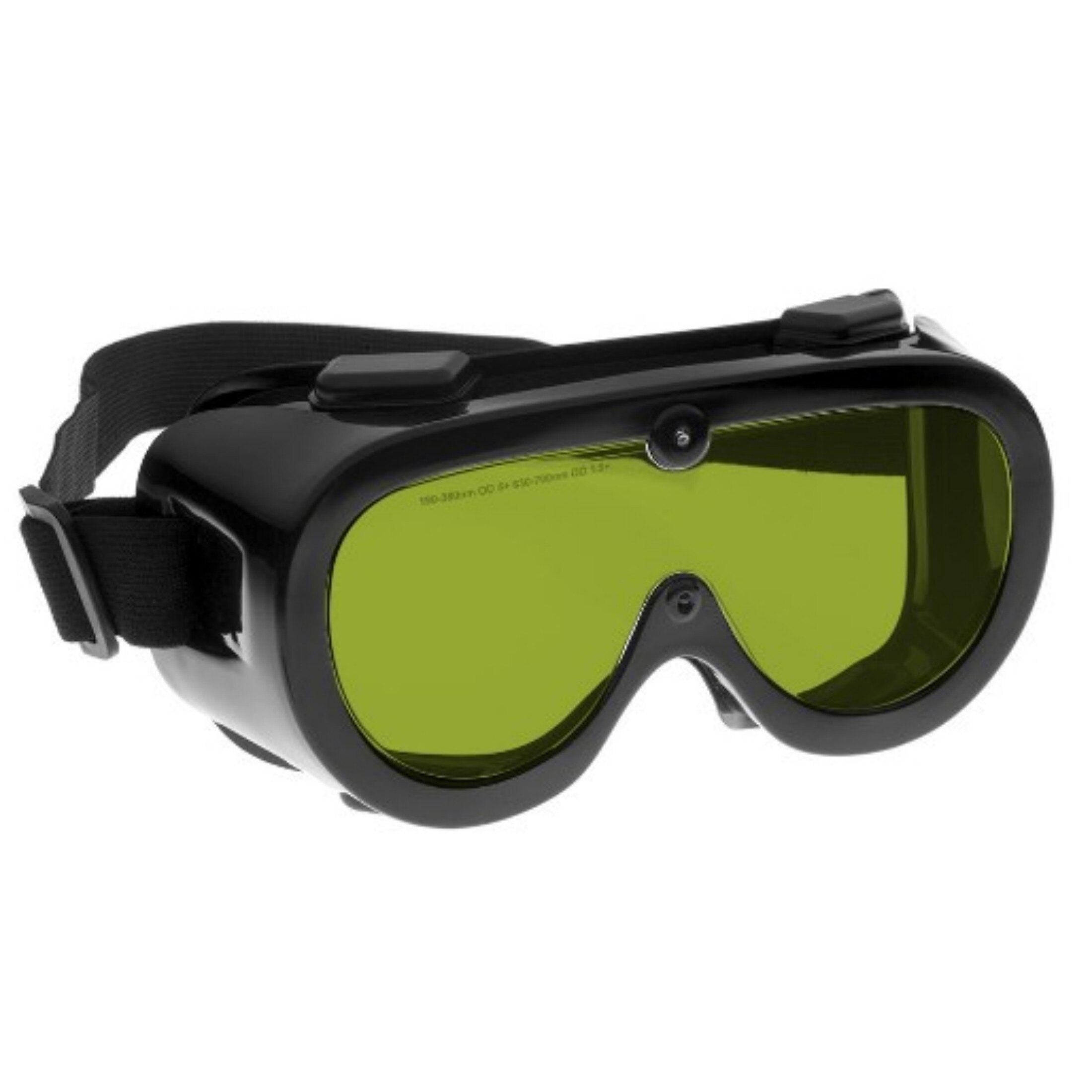

Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam.
● Wavelength: 190-360nm, OD rating 7+
● Wavelength: 10600nm, OD rating 7+
Especially suitable for: Laser IR 10600nm
For laserwelding, lasercutting, lasermarking, laserengraving, research and development or cosmetic applications (Please note the wavelengthrange!)
Complete protection
Comfortable fit over glasses or alone
Adjustable
With Picotronic Logo imprint
complete protection
universal, comfortable fit over prescription glasses or alone, adjustable
● Wavelength: 190-360nm, OD rating 7+, ● Wavelength: 10600nm, OD rating 7+
Especially suitable for: Laser IR 10600nm
Main Data
EAN: 4055132018573
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 190-360 OD 7+
10600 OD 7+
Lens Color: Clear
Mechanical Parameters
Material: Polymer
Housing Color: black
Weight: 10 g

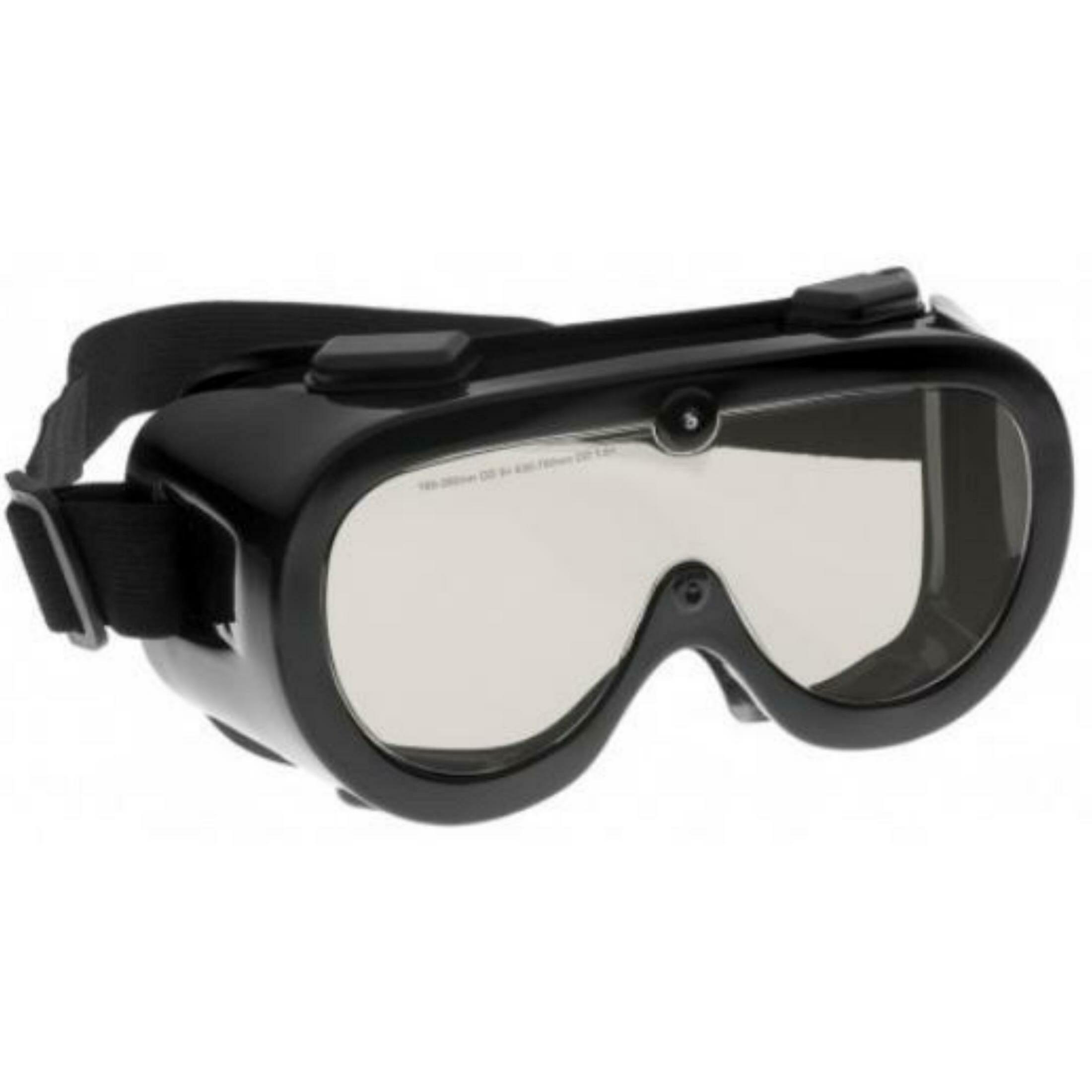

Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam.
● Wavelength: 190-360nm, OD rating 7+
● Wavelength: 10600nm, OD rating 7+
Especially suitable for: Laser IR 10600nm
For laserwelding, lasercutting, lasermarking, laserengraving, research and development or cosmetic applications (Please note the wavelengthrange!)
Complete protection
Comfortable fit over glasses or alone
Adjustable
With Picotronic Logo imprint
complete protection
universal, comfortable fit over prescription glasses or alone, adjustable
● Wavelength: 190-360nm, OD rating 7+ ● Wavelength: 10600nm, OD rating 7+
Especially suitable for: Laser IR 10600nm
Main Data
EAN: 4055132018528
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 190-360 OD 7+
10600 OD 7+
Lens Color: Clear
Mechanical Parameters
Material: Polymer
Housing Color: black
Weight: 10 g

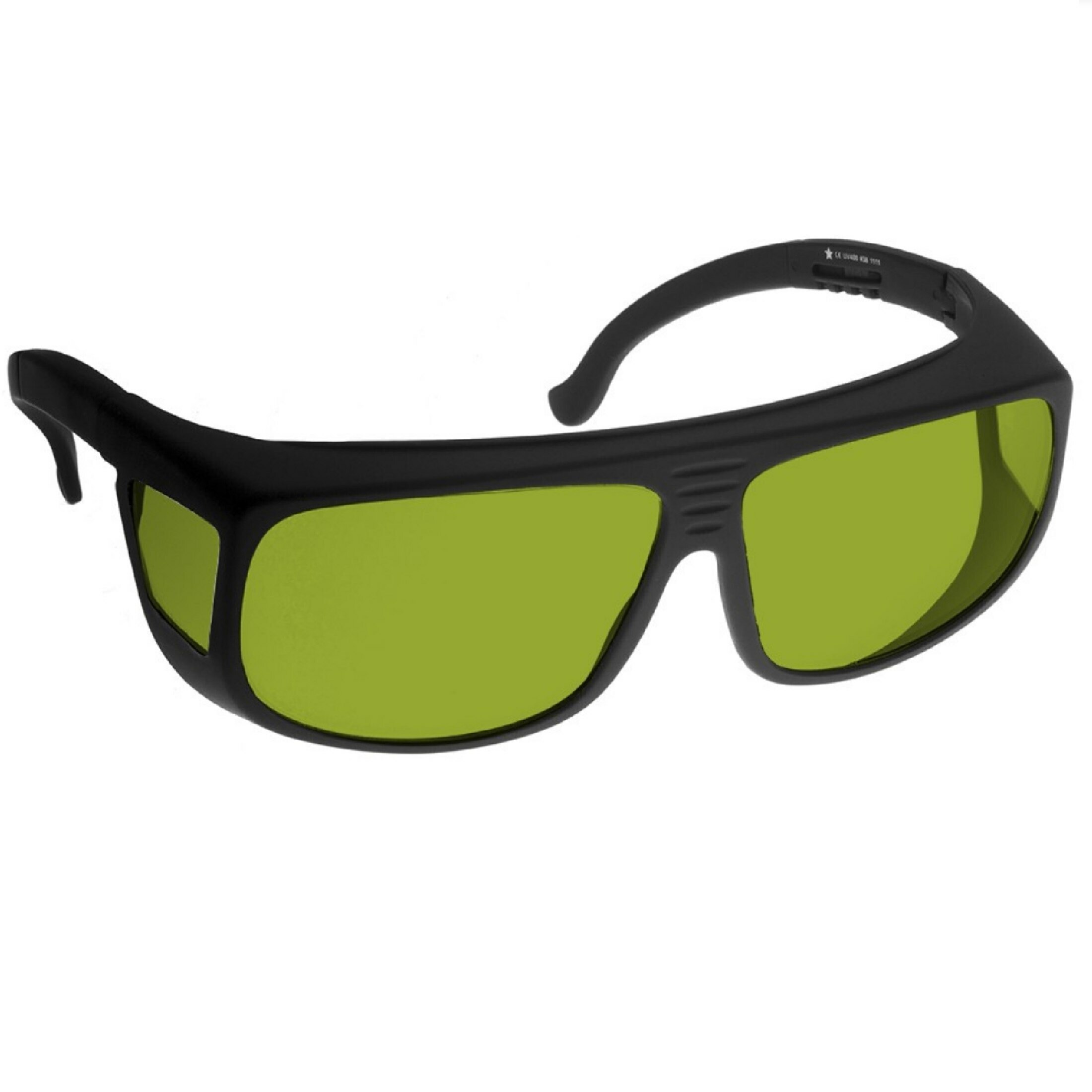

Laser Safety Eyewear, adjustment filter, universal fit, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view, CE Certified ,Fitover - 144mm x 145mm x 50mm, with Picotronic Logo imprint
● Wavelength: 190-400 5+
● Wavelength: 430-470 2+
CE-Rating: 0.1W 2*10E-5J 430-470 RB2
Especially suitable for: Laser BLUE 450nm
Adjustment filter
Comfortable fit over glasses or alone
Adjustable temples and Side-shields for wide field of view
CE Certified EN 208
With Picotronic Logo imprint
Main Data
EAN: 4055132015350
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 0.1W 2*10E-5J 430-470 RB2
Lens Color: Yellow
Mechanical Parameters
Size: 145x144x50 mm
Material: Polymer
Housing Color: black
Weight: 10 g
Buy PICO-LPG-450-ADJ on Amazon

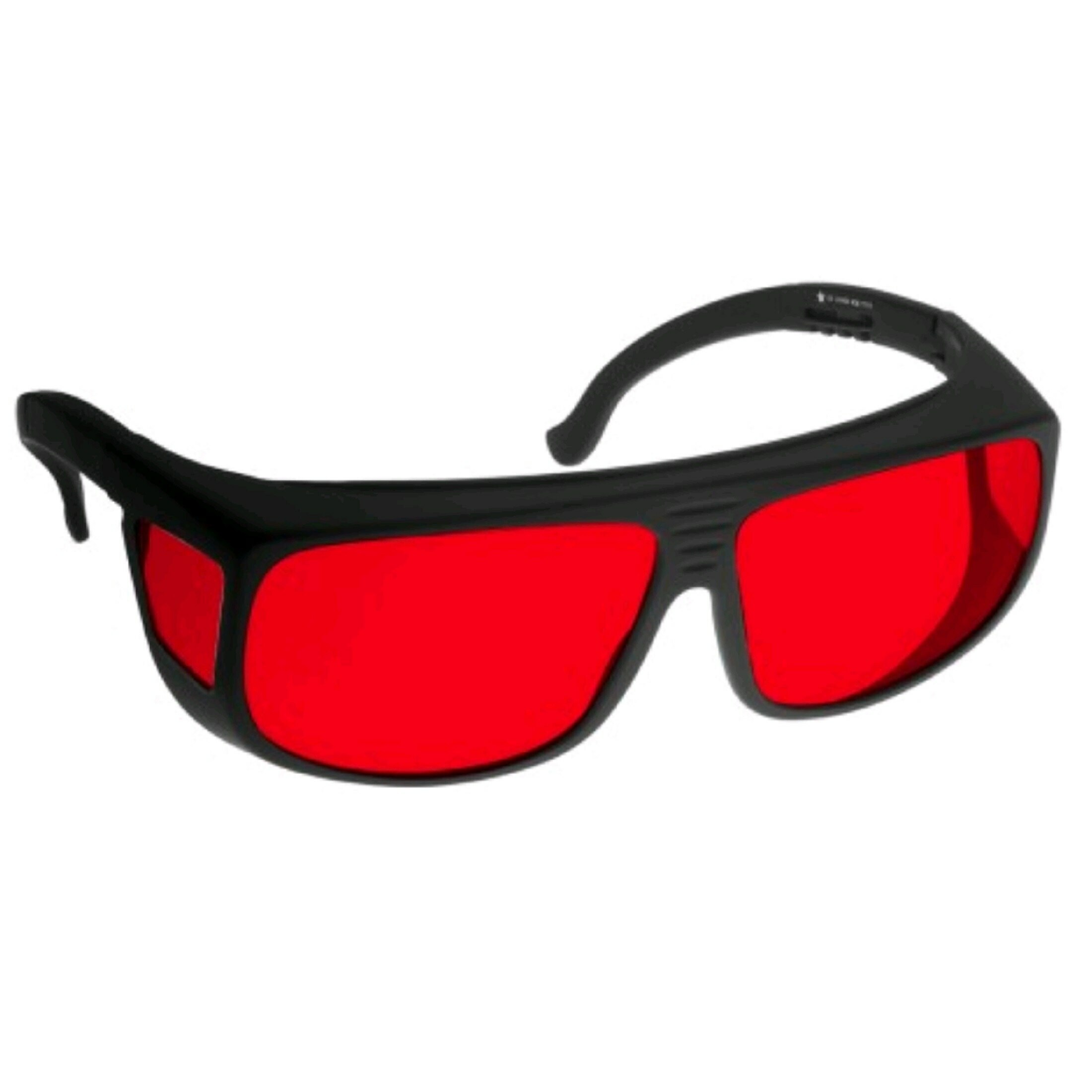

Laser Safety Eyewear, adjustment filter, universal fit, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view, CE Certified ,Fitover - 144mm x 145mm x 50mm, with Picotronic Logo imprint
● Wavelength: 180-315 D LB6 + R LB4
● Wavelength: >315-395 D LB4 + IR LB6
● Wavelength: >395-540 DIR LB3
CE-Rating: 1W 2*10E-4J 488-540 RB3
Especially suitable as adjustment filter for: Laser GREEN 488nm-540nm
Adjustment filter
Comfortable fit over glasses or alone
Adjustable temples and Side-shields for wide field of view
CE Certified EN 208
With Picotronic Logo imprint
Main Data
EAN: 4055132015763
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: 1W 2*10E-4J 488-540 RB3
Lens Color: Red
Mechanical Parameters
Size: 145x144x50 mm
Material: Polymer
Housing Color: black
Weight: 10 g
Buy PICO-LPG-488-540-ADJ on Amazon
Laser Safety Eyewear, adjustment filter, universal fit, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view, CE Certified ,Fitover - 144mm x 145mm x 50mm, with Picotronic Logo imprint
● Wavelength: 180-315 D LB6 + R LB4
● Wavelength: >315-395 D LB4
● CE Rating: .01W 2*10E-6J 605-642 RB1
CE-Rating: .1W 2*10E-5J 643-695 RB2
Especially suitable as adjustment filter for: Laser RED 605nm-642nm
Adjustment filter
Comfortable fit over glasses or alone
Adjustable temples and Side-shields for wide field of view
CE Certified EN 208
With Picotronic Logo imprint
Main Data
EAN: 4055132016616
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: .01W 210E-6J 605-642 RB1
.1W 210E-5J 643-695 RB2
Lens Color: Blue
Mechanical Parameters
Size: 145x144x50 mm
Material: Polymer
Housing Color: black
Weight: 10 g
Laser Safety Eyewear, adjustment filter, universal fit, comfortable fit over prescription glasses or alone, Fully contained protection, adjustable, CE Certified ,Fitover - 150mm x 85mm, with Picotronic Logo imprint
● Wavelength: 180-315 D LB6 + R LB4
● Wavelength: >315-395 D LB4
● CE Rating: .01W 2*10E-6J 605-642 RB1
CE-Rating: .1W 2*10E-5J 643-695 RB2
Especially suitable as adjustment filter for: Laser RED 605nm-642nm
Adjustment filter
Comfortable fit over glasses or alone
Adjustable
CE Certified EN 208
With Picotronic Logo imprint
Main Data
EAN: 4055132018634
customs tarif number: 90049010000
Technical Parameters
Operating Temperature: -50°C - 85 °C
Storage Temperature: -50°C - 80 °C
Optical Parameters
LB Rating: .01W 210E-6J 605-642 RB1
.1W 210E-5J 643-695 RB2
Lens Color: Blue
Mechanical Parameters
Material: Polymer
Housing Color: black
Weight: 10 g
€249.90*
This website uses cookies to ensure the best experience possible. More information...
